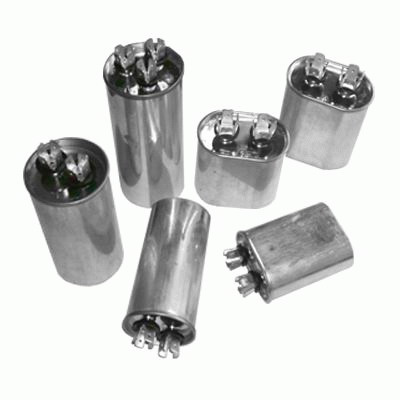

Cbb65 Aluminium Air Conditioner Capacitor

Prod Model:	CBB65
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Type:	Aluminum Electrolytic Capacitor
Application:	High Voltage
Capacitance:	>100uf

Product Description

CBB65 Air Conditioner Capacitors (Aluminum Case)
Detailed Product Description
Technical data:
1) Climate type: 40 / 70 / 21
2) Capacitance tolerance: ±5%, ±10%
3) Testing voltage:
    a) Between leading-out: 1.75UR, 10s without breakdown
    b) Between leading-out end and shell: 2,200V AC, 10s without
        breakdown
4) Insulation resistance:
    a) Between leading-out ends: ≥3,000mΩ
    b) Between leading-out end and shell: ≥1,000mΩ
5) Tangent of loss angle: tgδ ≤0.002 (50Hz)


Features:
The product is equipped inside with reliable explosion-proof equipment and is highly safe. With its good self-healing characteristic and long life-span.
Uses:
It is widely used for air-conditioners, refrigerators,generators,illuminating lamps, etc.

125 Volt Start Capacitors
220-250 Volt Start Capacitors
330 Volt Start Capacitor
370 Volt Oval Dual Run Capacitor
370 Volt Dual Round Run Capacitor
370 Volt Oval Run Capacitors
370 Volt Round Run Capacitor
440 Volt Oval Dual Run Capacitor
440 Volt Dual Round Run Capacitor
440 Volt Oval Run Capacitors
440 Volt Round Run Capacitor
Capacitor Accessories
Compressor Hard Start Kits
If you are interested to buy these products kindly contact us.






Working Temperature Range	climate types: 40/70/21
Rated Voltage Range	250-450VAC
Rated Capacitance Range	3-100uF
Dissipation Factor	Tan ≤0.002 (50Hz)
Rated Tolerance of capacitance	5%   10%
Testing Voltage	between leading-out ends: 1.75UR  10S no break down
Insulation resistance	between leading-out ends: 3000
