| Prod Model: |
0.18mm~12.00mm |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Application: |
Long Distance Symmetric Cable |
| Conductor Material: |
Aluminum |
| Certification: |
SGS |
| Brand: |
Qinfeng |
Product Description

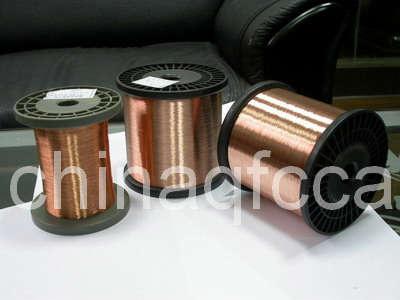

Copper Clad Aluminum wire DETAILS
(CCA wire)
Our state-of-the art cladding and welding crafts guarantee the high density and conductivity of 99.97% purity copper cladding,while our metallurgical bonding technique assures that the copper cladding is evenly distributed around the aluminum core along the wire for excellent condentricity ,mechanical properties according with US ASTM B 566-04a Standard.CCA wire is sorted into Hard -drawn (H) and Annealed(A).
Type:According to the process can be divided into cladding CCA and plating CCA
Standard: SJ/T11223-2000; ASTM B 566-04a
Specification: diameter 0.10-12.0mm
Application:
CCA widely used in cable TV signal and large volume communications net work signal transmission,or as control signal cable.
High Frequency Signal Transmission:
1.Choice conductor material for TV coaxial cable 2.50Ω Radio frequency (RF) cable
3.Flexible RF coaxial cable
4.Leak cable
5.Computer cable and other data cable
6.Superfine coaxial cable
Power Transmission:
1.Choice conductor material for Enameled wire
2.Power cable
3.Control cable
4.Cables specially made for automobiles and motorcycles
5.Construction wiring
6.Bus-bar
7.Fuse
8.RF shielded cable network
Special Magnet Wire:
1.Choice conductor material for Computer
2.Mobile communications wire
3.Coil or column used in Aeronautics and Astronautics or Military Device
CCA wire advantage:
1.Given the same weight and diameter,CCA wire measures2.6-3.2 times longer than copper wire ,which means that 1 Ton of pure copper wire should afford2.6 to 3.2Ton CCA wire,a choice to reduce costs of material for cable production.
2.According to pure copper wire,the impossibility to separate copper form CCA wire keeps thieves away.
3.CCA wire is better plasticity than copper wire with good conducity and improbability of insulating oxide to be generated round the aluminum core make the CCA wire easier to process.
4.CCA wire is light,easy to transport and install,thus saves labor coast 5.CCA wire is light,easy to transport and install,thus saves labor cost.
Main Technical Parameters
| Technical Characteristics | CCAM Wire |
| Clad type | Plated type |
| 10H | 10A | 15H | 15A |
| Size range (mm) | 0.20-8.0 | 0.20-8.0 | 0.12-8.0 | 0.12-8.0 | 0.12-6.0 |
| Copper content (% by weight) | 25-31 | 25-31 | 32-40 | 32-40 | 10 |
| Tensile strength (Mpa) | ≥152 | 110-172 | ≥152 | 110-172 | 180-250 |
| Elongation (%) Min. | 1 | 5 | 1 | 5 | 5 |
| Conductivity (%) Min. at 20ºC | 62 | 62 | 64 | 64 | 62 |
| Resistivity (Ω.mm2/m) Max. at 20ºC | 0.02743 | 0.02743 | 0.02676 | 0.02676 | 0.02743 |
| Density (g/cm3)Min. | 3.32 | 3.32 | 3.63 | 3.63 | 2.85 |
Products can be customized according to special requirements.
PACKING:DIN130mm, DIN160mm, DIN180mm, DIN200mm, DIN250mm,DIN400mm, DIN780mm
Normal package: Spool DIN130mm, DIN160mm, DIN180mm, DIN200mm, DIN250mm,DIN400mm, DIN780mm
Product Name:Copper Clad Auminum Wire
Product Detail:
CCA WIRE(copper clad aluminum wire)
Copper clad aluminum wire (CCA) is produced with the process of cladding welding drawing method, by cladding copper strip on the outer surface of the aluminum core.
Application :
CCA wire widely used in Cable TV signal and large volume communications network signal transmission, control signal cable , welding cable and so on .
1. Weaving for coaxial cable
2. 50Ω Radio frequency (RF) cable
3. Flexible RF coaxial cable inner conductor material
4. Computer cable and other data cable inner conductor material
5. Superfine coaxial cable inner conductor material
Electroplating process:
| Name / Spec. | Diameter Range | Copper
Content | Conductivity | Tensile
Strength | Elongation | Density |
| DCCA | 0.15mm-3.00mm | Cu Below
10%
By volume | 59%-62% | ±120Mpa | ≥12% | 2.9-3.0g/cm³ |
Cladding process:
| Name / Spec. | Diameter Range | Copper
Content | Conductivity | Tensile
Strength | Elongation | Density |
| CCA-10 | 0.15mm-3.00mm | Cu 10%
By volume | 63%-65% | ±140Mpa | ≥12% | 3.32-3.53g/cm³ |
| CCA-15 | 0.15mm-3.00mm | Cu 15%
By volume | 66%-70% | ±150Mpa | ≥12% | 3.52-3.65g/cm³ |
With its strong R&D ability and dozens of years of successful application experiences, changzhou zhong hua qin feng copper industrial Co., Ltd of jiangsu province makes the R&D and market application of double metals integrated into the world, for it is the first company which introduces the newest conductor material of copper clad aluminum as the substitution of pure copper into China.
Our company is located in new district in yangtze river delta economic area of changzhou city, enjoying the convenient transportation system and developed economy. Our company now occupies an area of 34, 000 square meters, with registered capital of 10 million RMB and fixed asset of 50 million RMB. Our main productors are copper clad aluminum-magnesium wire (CCAM), copper clad aluminum wire(CCA) and the second generation copper clad aluminum wire, and can produce 21 tons per day, and our annual production reaches 7000 tons to 8000 tons, which could meet the needs of various enterprises within and without. Our products include the 0.1mm-2.0mm CCAM wire, 0.1mm-2.0mm CCA wire and other types of double metal wires.
Our company aims at reducing the customer's cost by upgrading our products and continuously researching and developing new products. And we continuously bring out the new reliable new material, new workmanship and new technology to meet the light-weight requirement of copper clad aluminum wire in such areas as the electric appliances and electronic industry.
Upholding the principle of credit being the priority, good quality, long term cooperation and common development, our company is ready to be the excellent and reliable supplier of your first choice.
