CCAM Wires

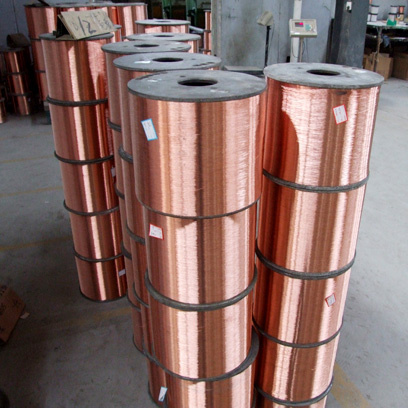

Name: CCAM Wires
Brand: all-electronics-online.com
SKU: 670152525
Availability: InStock
Rating: 4.6 (129 reviews)

Price:	US $ 3.8KG
Trade Terms:	FOB,CFR,others
Min Order:	1000KGS
Pay Type:	L/C,T/T

Contact Supplier

Showroom Product Company Profile

Prod Model:	0.18mm~12.00mm
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Style:	Bimetalic Wire
Application:	RF Cable
Conductor Material:	Aluminum
Certification:	ISO
Type:	Shield
Brand:	Qinfeng

Product Description

CCAM wires (China manufacture)
Copper Clad Aluninum Magesium Wires (CCAM) is made up of copper cover w/ aluminum core, It combines excellent conductivity of copper with the light weight of aluminum perfectly. Nowsday, CCAM is considered as a kinds of better choice material in various industries, such as high signal transmission, power transmission, LF transmission, and special electromagnetic wire. According to mechanical properties CCAM Wires is sorted into Annealed (A) and Hard-drawn (H), and according to volume of copper cladding or into 10% and 15% models.

Copper Clad Aluninum Magesium Wires Characteristics:
Light weight
High intensity strength and elongation
Excellent electric conductivity.
Competitive price

CCAM wires (china manufacture) specs
Electrical conductor	Length compared to copper wire	weight ratio	Copper volume	Dc resistivity	Tensile Strength	Elongation
first generation CCA	2.5:1	3.25-3.65	10.0- 15.0	0.027	95- 135	≥10
first generation CCAW	2.5:1	3.35-3.63	13-14.8	0.02857	160-180	≥10
second generation CCA	3.2:1	2.85	6.0-10.0	0.02726	95-130	≥10
second generation CCAW	3.2:1	2.85	6.0-10.0	0.047-0.02857	160-250	≥10
Copper wire	1:01	8.89	100	0.01724	215-265	≥20

With its strong R&D ability and dozens of years of successful application experiences, changzhou zhong hua qin feng copper industrial Co., Ltd of jiangsu province makes the R&D and market application of double metals integrated into the world, for it is the first company which introduces the newest conductor material of copper clad aluminum as the substitution of pure copper into China.

Our company is located in new district in yangtze river delta economic area of changzhou city, enjoying the convenient transportation system and developed economy. Our company now occupies an area of 34, 000 square meters, with registered capital of 10 million RMB and fixed asset of 50 million RMB. Our main productors are copper clad aluminum-magnesium wire (CCAM), copper clad aluminum wire(CCA) and the second generation copper clad aluminum wire, and can produce 21 tons per day, and our annual production reaches 7000 tons to 8000 tons, which could meet the needs of various enterprises within and without. Our products include the 0.1mm-2.0mm CCAM wire, 0.1mm-2.0mm CCA wire and other types of double metal wires.

Our company aims at reducing the customer's cost by upgrading our products and continuously researching and developing new products. And we continuously bring out the new reliable new material, new workmanship and new technology to meet the light-weight requirement of copper clad aluminum wire in such areas as the electric appliances and electronic industry.

Upholding the principle of credit being the priority, good quality, long term cooperation and common development, our company is ready to be the excellent and reliable supplier of your first choice.
