Ce and RoHS Approved 1 Phase Distribution Box

Prod Model:	2CAB
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Color:	Ral7032 or Ral7035
Materials:	Metal
Usage:	Storage
Suit For:	Outside
Structure:	Protection
Type:	Box
Certification:	Ce and RoHS
Shell Protection Grade:	IP66
Brand:	Chana

Product Description

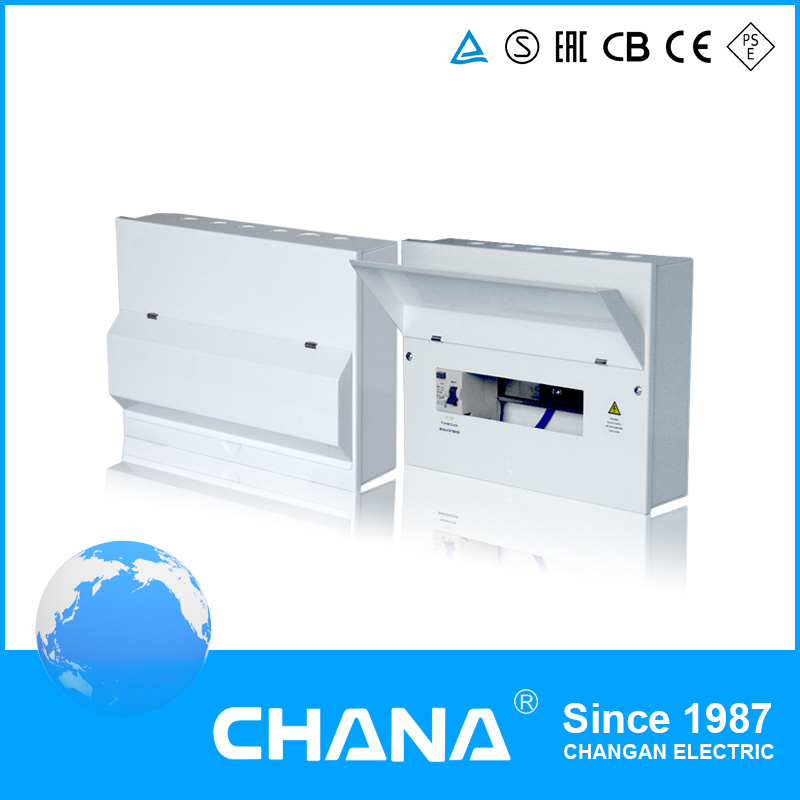

2CAB Series 1 Phase Distribution Box

Description
2CAB series 1 phase distribution box is designed for safe, reliable distribution and control of electrical power as service entrance equipment in residential, commercial and light industrial installation.
Steel sheet and copper fitting inside
Protected with epoxy polyester coating
Color: RAL7032 or RAL7035
Standard: IEC 60947-3

Specification

Model	Way No.	Dimension (mm)						Terminal configuration
		H	W	D	D1	W1	H1	N	E
2CAB8	8	240	240	102	78	186	154	9*1	10*1
2CAB10	10	240	276	102	78	214	154	11*1	12*1
2CAB12	12	240	312	102	78	250	154	13*1	14*1
2CAB14	14	240	348	102	78	286	154	9*2	16*1
2CAB16	16	240	384	102	78	323	154	9*2	18*1
2CAB18	18	240	414	102	78	352	154	11*2	20*1
