CE and RoHS Approved Electronic Type RCCB Circuit Breaker

Name: CE and RoHS Approved Electronic Type RCCB Circuit Breaker
Brand: all-electronics-online.com
SKU: 772629955
Availability: InStock
Rating: 4.4 (82 reviews)

Price:	US $ 2.5-3/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	100/Piece
Pay Type:	L/C,T/T,D/P,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	DZ47LE-63-4P
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Poles:	1p+N
Electronic Life:	2000
Mechanical Life:	4000
Protection Degree:	IP20
Rated Voltage:	230/240V
Rated Sensitivity:	0.03,0.1,0.3A
Breaking Capacity:	Low Voltage Circuit Breakers
Operation:	Manual Type
Speed:	Normal Type Circuit Breaker
Arc-extinguishing Medium:	Air
Installation:	Fixed
Structure:	MCB
Poles Number:	2
Certification:	RCCB

Product Description

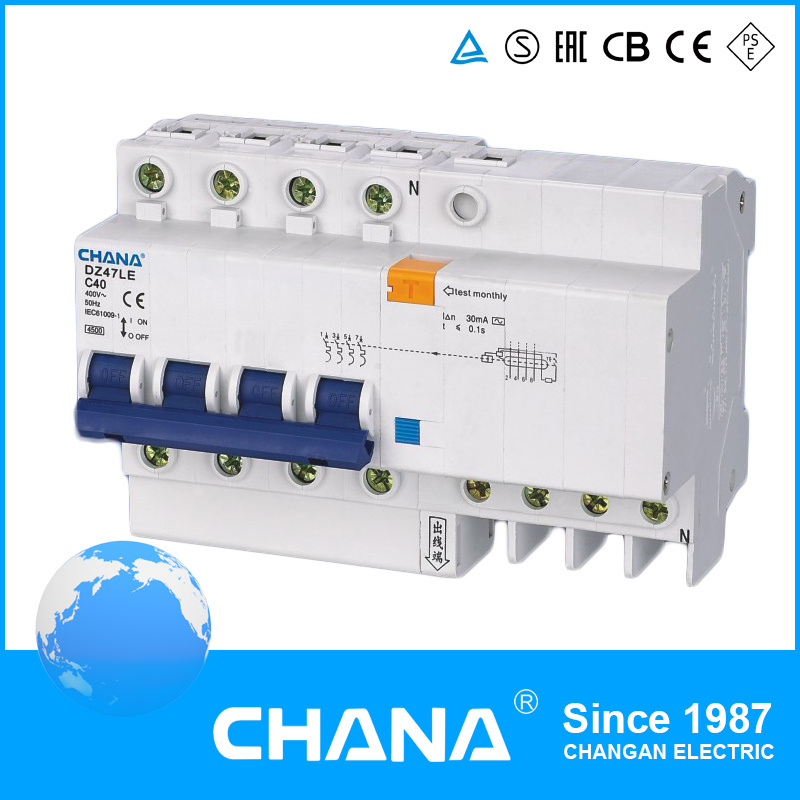

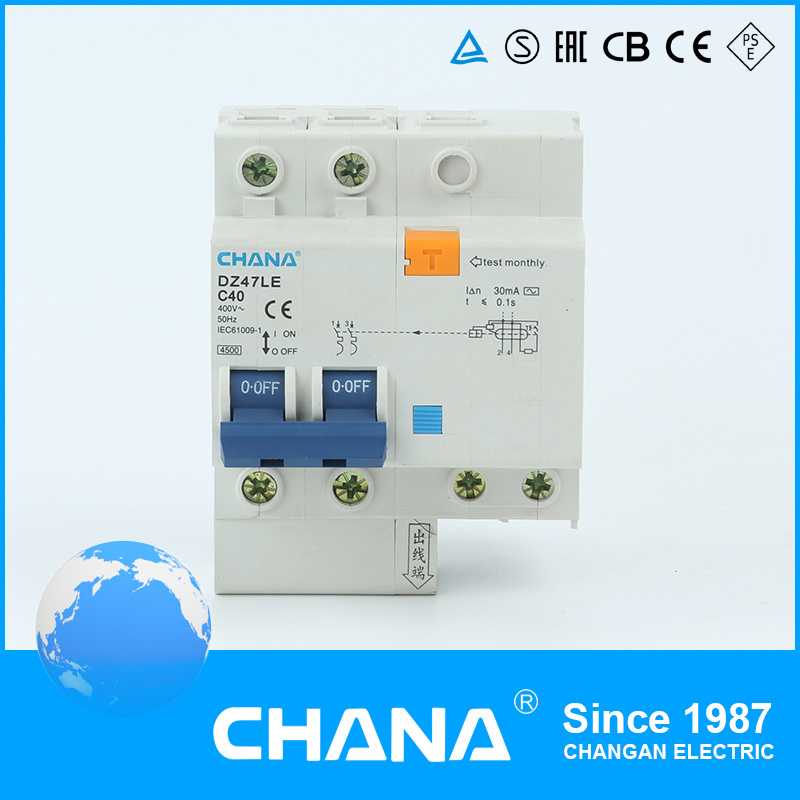

Model	(Electronic Type) RCBO RCCB with Overcurrent Protection
Code	DZ47LE-63
Standard		IEC61009-1
Electrical Features	Type		AC,A
	Thermo-magnetic release characteristic		B,C
	Rated current	A	6,10,16,20,25,32,40,50,63
	Poles	P	2P(1P+N),4P(3P+N)
	Rated voltage	V	240/415
	Rated sensitivity I△n	A	0.03, 0.1, 0.3
	Insulation voltage	V	300
	Rated residual making and breaking capacity I△m	A	500A(In≤40A)630(In>40A)
	Short-circuit current Inc=I△c	A	4500
	Break time under I△n	S	≤0.1
	Rated frequency	Hz	50/60
	Pollution degree		2
Mechanical Features	Electrical life	t	2000
	Mechanical life	t	4000
	Protection degree		IP20
	Ambient temperature (with daily average≤35ºC)	ºC	-5ºC...+40ºC
	Storage temperation		-25ºC...+70ºC
Installation	Terminal size top/bottom for cable	mm²	25
	Terminal size top/bottom for busbar	mm²	25
	Tightening torque	N*m	2
	Mounting		35mm DIN rail
	Connection		From top and bottom (for combined type)
	Connection		From top (MCB+add-on RCD block)

Payment:
1. We usually use T/T
2.30% deposit and 70% before shipping
3. L/C also acceptable
Warranty:
1. We provide 1.5 year warranty.
2. If the product is defective, please notify us within 3 days of delivery.
3. All products must be returned on their original condition, in order to qualify for a refund or exchange of goods
Welcome to inquire, negotiate, we will be happy to provide you with the best quality products and personalized service!
Contact us:

Established in 1987, CHANGAN GROUP Co., Ltd. Has been acknowledged as one of the most respected nation-wide manufacturers and exporters of low-voltage electrical apparatus in P. R. China.

Comprising more than 62 factories with over 2500 employees and the whole corporation occupies 82000m2 ground during past 27 years.

We manufacture and export varieties of low voltage electrical appliance including all kinds of CIRCUIT BREAKER, CONTACTOR, RELAY, SWITCH, SOLAR INVERTER etc.

All of our production procedures strictly follow ISO9001, ISO14001 and OHSAS18001, most of our products are certified such as SEMKO, TUV, CB and CE which can prove our guarantee quality and our products also have been chosen as "Chinese FAMOUS BRAND PRODUCT".

We not only make efforts in developing our own products with "CHANA"brand but also provide OEM services. Hope to establish good business relationships with your esteemed company in near future.
