Cfbhb Semiconductor Load Cell for Weighing Sensor

Name: Cfbhb Semiconductor Load Cell for Weighing Sensor
Brand: all-electronics-online.com
SKU: 802208135
Availability: InStock
Rating: 4.7 (145 reviews)

Price:	US $ 199-399/Piece
Min Order:	1/Piece
Pay Type:	T/T,Western Union,Paypal,Money Gram

Contact Supplier

Showroom Product Company Profile

Prod Model:	BND-CFBHB
Delivery Time:	3-7days
Warranty:	1year
Product Name:	Semiconductor Load Cell
Operating Temperature Range:	-10°c~+60°c
Safety Overload:	150%F·s
Recommended Excitation Voltage:	6V
Output Resistance:	120±12Ω

Product Description

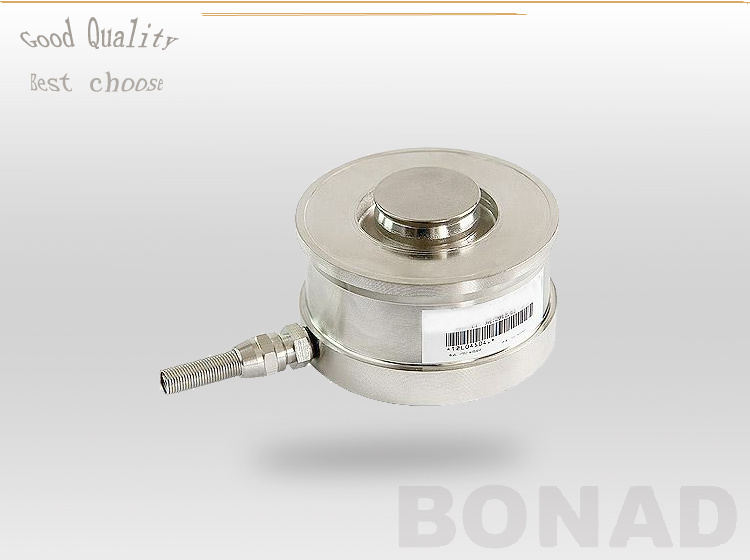

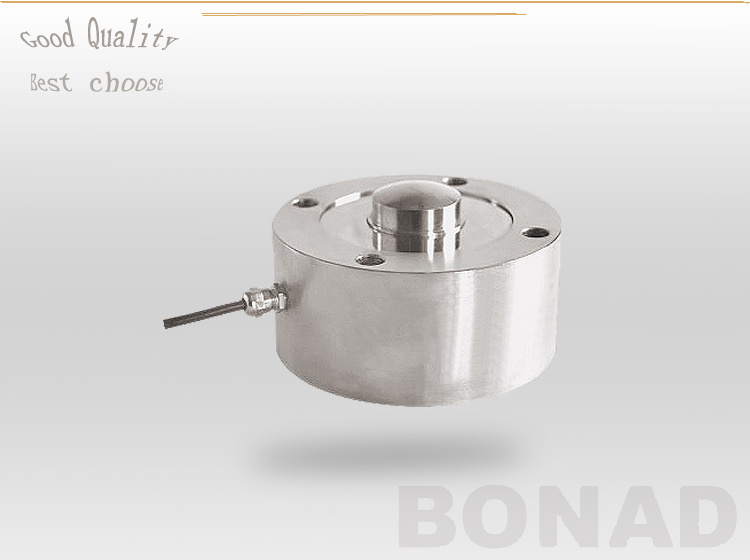

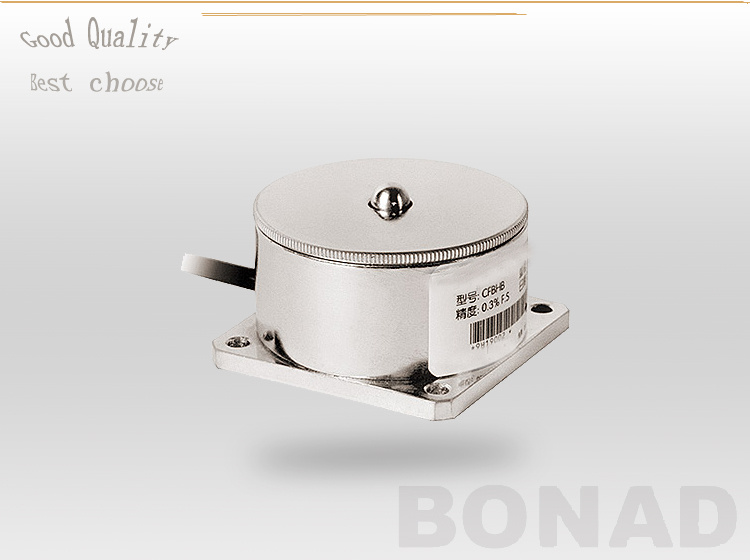

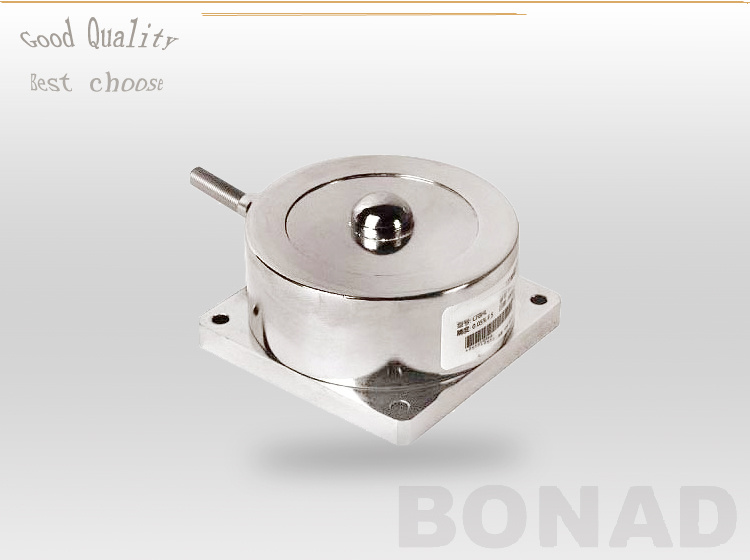

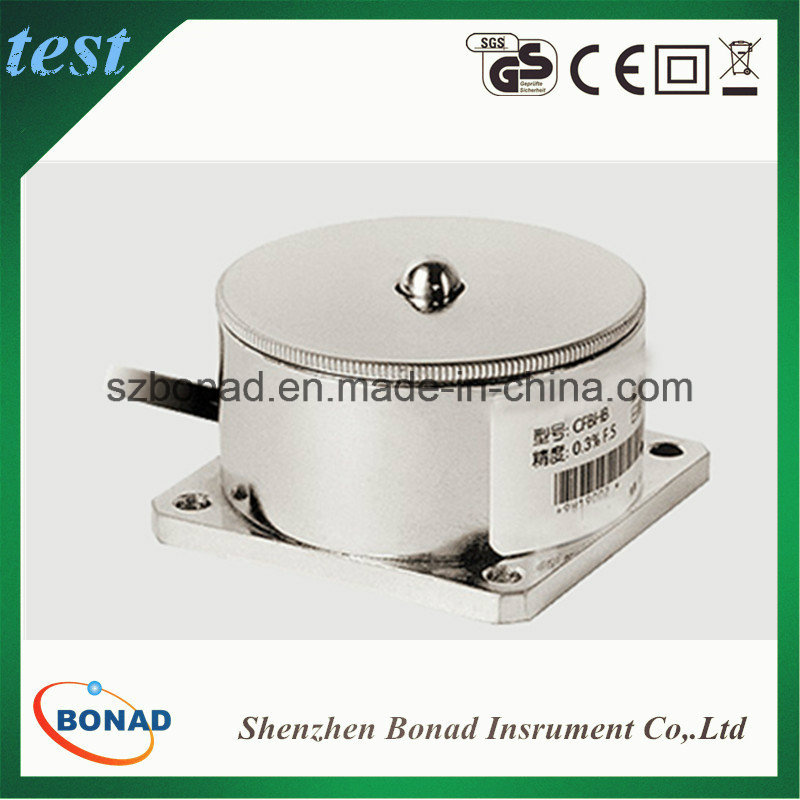

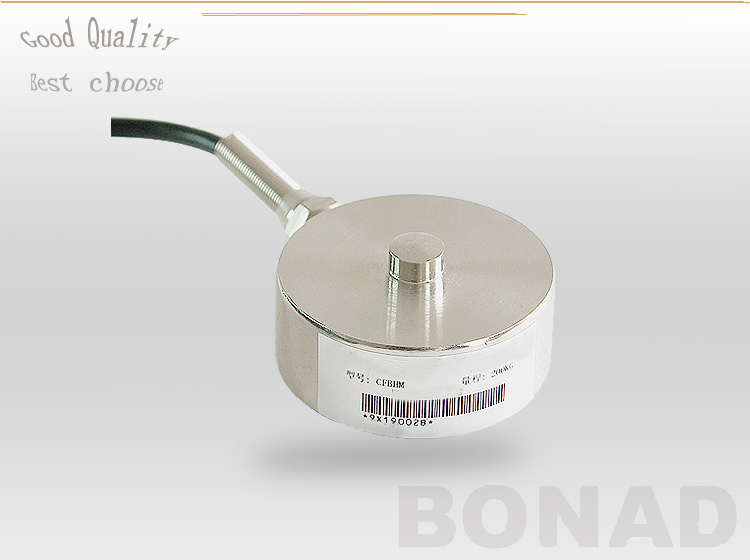

CFBHB Semiconductor load cell for weighing sensor

Features and Uses
Sensor adopts beam structure, applicable to small scale range of the static and dynamic load of gravity measurement, with the output signal (can be amplified signal), high sensitivity, etc.It is applicable to all kinds of belt scale in the cement industry, scale and load speed regulation and industrial automation of weighing measuring control system.

Technical Parameter:

parameters	Unit	Technical Parameters	Parameters	Unit	Technical Parameters
Sensitivity	mV/V	≥40	temperature sensitivity coefficient	≤%F·S/10°C	±0.01
Nonlinear	≤%F·S	±0.03	Operating Temperature Range	°C	-10°C~+60°C
Lag	≤%F·S	±0.03	Input Resistance	Ω	120±12Ω
Repeatability	≤%F·S	±0.03	Output Resistance	Ω	120±12Ω
Motility changes	≤%F·S/30min	±0.03	Safety overload	≤%F·S	150%F·S
Zero output	≤%F·S	±2	Insulation Resistance	MΩ	≥5000MΩ(50VDC)
Zero temperature coefficient	≤%F·S/10°C	±0.01	Recommended excitation voltage	V	6V

HONGKONG BONAD TECHNOLOGY LIMITED SHENZHEN BONAD INSTRUMENT Co., Ltd. is a high-tech company in HongKong, producing all kinds of precise instrument. We specialize in the high quality of Electronic Safety Tester, Gauges for lamp caps and lampholder, Laboratory Equipment, Test Chamber, Test Equipment, Lux Meter, Weight Sensor and Electric Ruler and so on. We have gathered lots of well educated and experienced researchers and administrators on this electric products. All of our products comply with international quality standards and are greatly appreciated in a variety of different markets throughout the world.

All products manufactured are strictly in accordance with various EN, IEC, CE, UL, VDE, VS, JIS, ISO, CEE, BS, FMV, GB and other similar international standards.

Main Products include: Test Chamber, Weight Sensor, Load Cell, Electrical Ruler, Glow Wire Tester, Needle Flame Tester, and Vertical Burning Tester, Melt Dripping Tester, Building Materials Flammability Tester, Accessibility Probes, Spring Impact Hammer, Electrical Safety Tester Series, Environmental Tester, IPX1-8 waterproof test equipment Universal Testing Machine, Socket-outlet Gauges Series and other testing instruments.

Our main business partners are from Europe, Asia, North America, Africa and other countries and regions around the world. We are always one of the most popular precise instrument manufacturers in the whole world!
