Cfbhw Bellows Cantilever Beam Type Load Cell

Name: Cfbhw Bellows Cantilever Beam Type Load Cell
Brand: all-electronics-online.com
SKU: 804296595
Availability: InStock
Rating: 4.7 (128 reviews)

Price:	US $ 30-120/Piece
Min Order:	1/Piece
Pay Type:	T/T,Western Union,Paypal,Money Gram

Contact Supplier

Showroom Product Company Profile

Prod Model:	BND-CFBHW
Delivery Time:	3-7days
Warranty:	1year
Product Name:	Cfbhw Bellows Cantilever Beam Type Load Cell
Insulation Resistance:	≥5000mΩ(50VDC)
Measure Range:	1MPa-80MPa
Driving Voltage:	25-300kg/500kg
Zero Output:	±1%Fs
Safety Overload:	150%F·s
Sensitivity:	2.0/3.0±0.05

Product Description

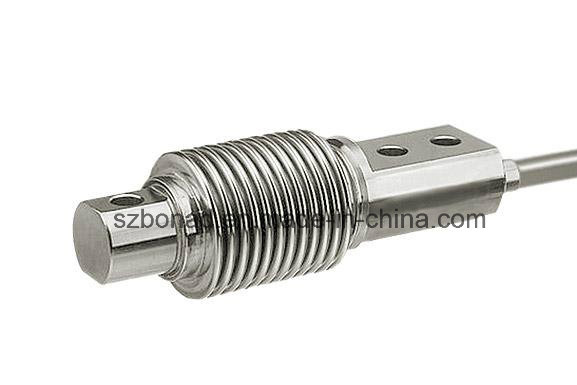

CFBHW Bellows cantilever beam type load cell
Bellows cantilever load cell with parallel beam structure, metal bellows welded seal, filled with inert gas inside. Anti-overload, anti-fatigue, anti-partial load capacity. Can be widely used in electronic belt scales, hopper scales, platform scales, and other special weighing, a variety of materials testing machine and other force measurement device.

Measuring range	B	D
25-300kg	Φ27	Φ8.2
500kg	Φ27	Φ10.2

Technical Parameters

Parameters	Unit	Parameters	Parameters	Unit	Technical Index
Sensitivity	mV/V	2.0/3.0±0.05	temperature sensitivity coefficient	≤%F·S/10ºC	±0.02
Nonlinear	≤%F·S	±0.03	Operating Temperature Range	ºC	-40ºC~+80ºC
Lag	≤%F·S	±0.03	Input Resistance	Ω	352±10Ω
Repeatability	≤%F·S	±0.03	Output Resistance	Ω	400±10Ω
Motility changes	≤%F·S/30min	±0.03	Safety overload	≤%F·S	150% F·S
Zero output	≤%F·S	±1	Insulation Resistance	MΩ	≥5000MΩ(50VDC)
Zero temperature coefficient	≤%F·S/10ºC	±0.02	Recommended excitation voltage	V	10V-15V

FAQ
What about your quality?
Each equipment must be carry out 100% examination and test again before shipping
What is the MOQ ?
if we have in store MOQ can be 1 sample
if we dont have in store , the MOQ will be 5 sample
what is the lead time ?
if we have in stock,it will be shipping to you within 3-5days.
if we dont have it in store ,it will need 10-40days.
How long the delivery time ?
Generally most equipment will be 3-10days after we receive your payment or the order conformed ,please conform with us before you made an order .
What is the warranty of the products?
One year ,but we can provide you life long support .
What is the package
Export standard Solid wooden case
What is the shipping way ?
We have stable forwarding agent for air and sea transportation ,and also express about DHL TNT etc , we will suggest you the best shipping way base on your requirement .
What is the payment term ?
T/T, Western Union,Money gram ,Paypal etc
