| Prod Model: |
BND-CFZX |
| Delivery Time: |
3-7days |
| Warranty: |
1year |
| Product Name: |
10ton Pin Load Cell |
| Insulation Resistance: |
≥5000mΩ(50VDC) |
| Recommended Excitation Voltage: |
10V~15V |
| Safety Overload: |
150%F·s |
Product Description

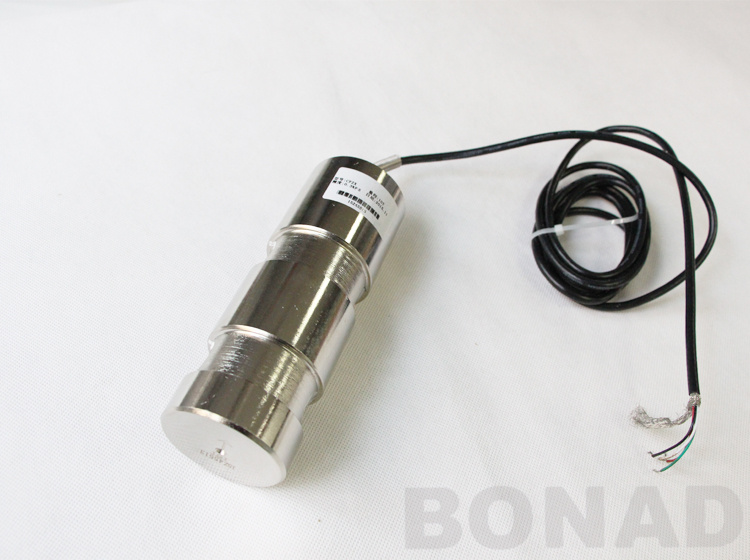

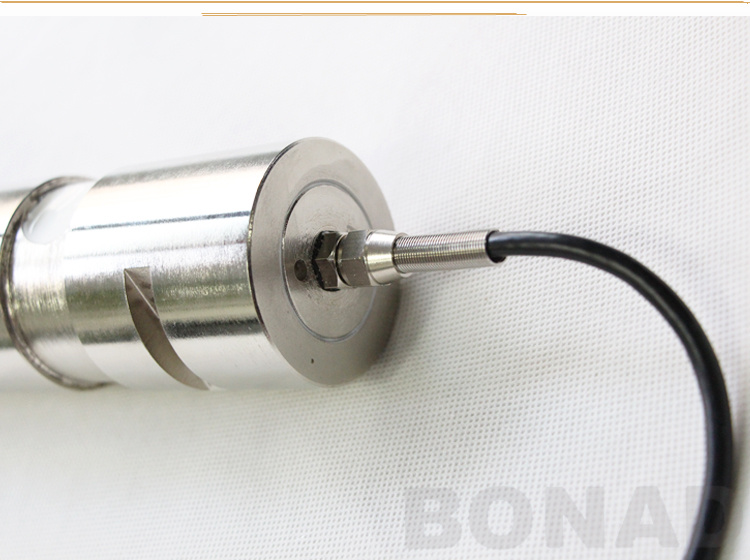

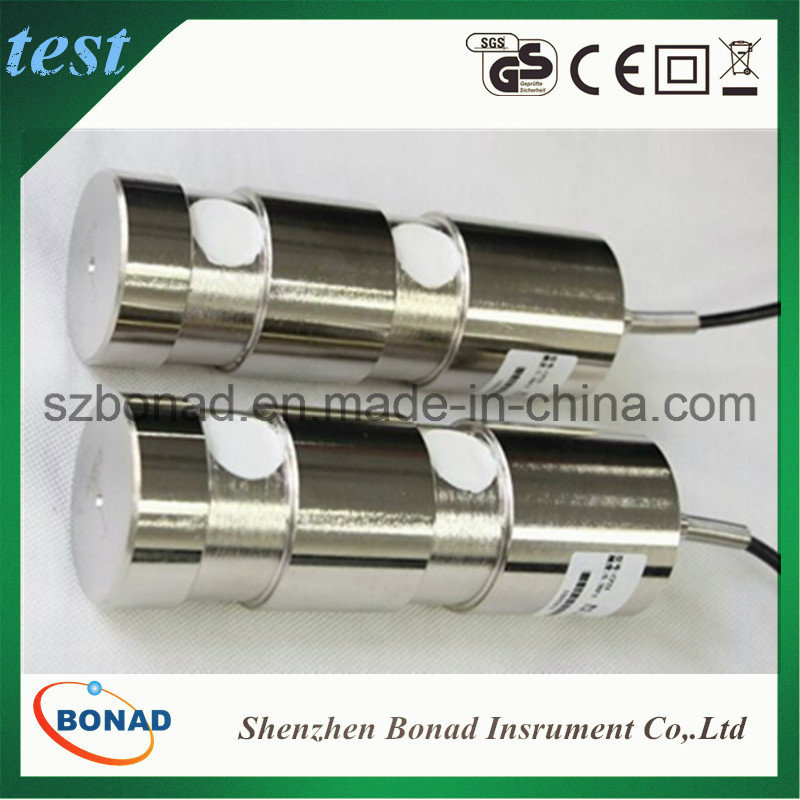

CFZX 10ton axis pin load cell for truck sensor
Specifications
1. Double shear beam structure
2. Anti- twist
3. High precision
4. Anti-bias load
5. Good strength
Features and Uses
The sensor uses a dual shear beam axle pin shape structure, with anti-bias load , anti-distortion, high precision, is a measure of bearings , pulleys and other components of the radial load or special wire rope tension sensor , which can be installed in place of the pulley shaft pin structure radial force measurement . Both play replace the original axis function , but also play a role in the load of the load cell , so that the mechanical part of the load measuring system is greatly simplified . Suitable for lifting, water conservancy, shipbuilding and other industries in the process control and measurement systems.
Technical indicators
| Capacity | A | B | C | D | E | F | G |
| 2t~5t | 120 | 40 | 15 | 15 | 25 | 6 | 6 |
| 10t | 160 | 55 | 20 | 22 | 40 | 8 | 8 |
| 15~20t | 200 | 65 | 25 | 27 | 50 | 10 | 8 |
| 30~40t | 250 | 85 | 30 | 32 | 80 | 12 | 10 |
| Parameters | Unit | Technical Parameters | Parameters | Unit | Technical Parameters |
| Sensitivity | mV/V | 1.0-2.0±0.05 | temperature sensitivity coefficient | ≤%F·S/10°C | ±0.05 |
| Nonlinear | ≤%F·S | ±0.1 | Operating Temperature Range | °C | -20°C~+80°C |
| Lag | ≤%F·S | ±0.1 | Input Resistance | Ω | 750±20Ω |
| Repeatability | ≤%F·S | ±0.05 | Output Resistance | Ω | 700±5Ω |
| Motility changes | ≤%F·S/30min | ±0.1 | Safety overload | ≤%F·S | 150%F·S |
| Zero output | ≤%F·S | ±1 | Insulation Resistance | MΩ | ≥5000MΩ(50VDC) |
Zero temperature coefficient
| ≤%F·S/10°C | ±0.05 | Recommended excitation voltage | V | 10V~15V |
