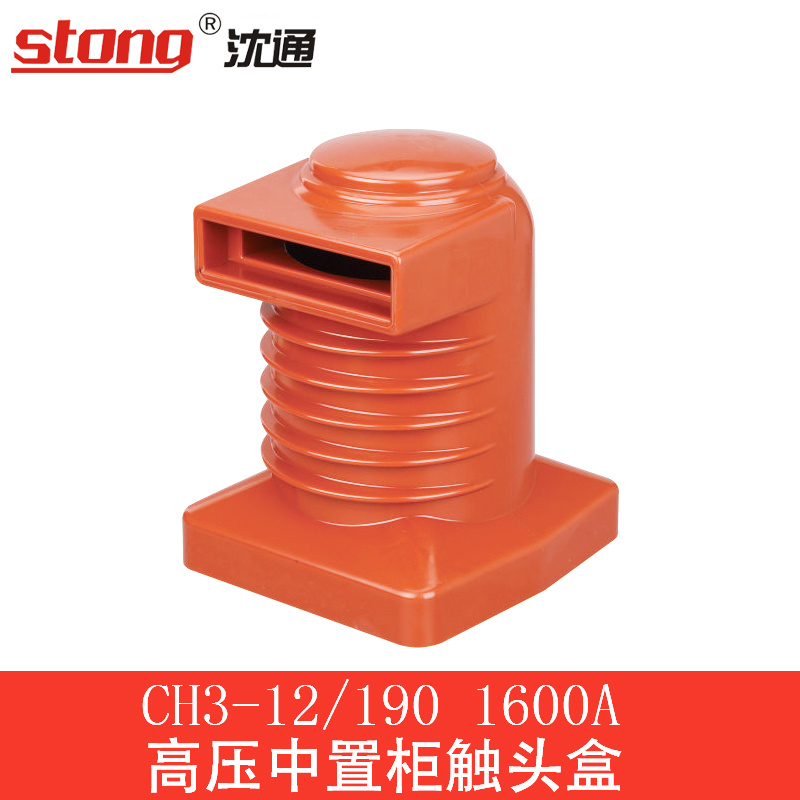

CH3-12 Switch Cabinet Accessory Contact Box Insulation
Price: |
US $ 6/Piece |
Min Order: |
50/Piece |
Pay Type: |
L/C,T/T,Paypal |
Prod Model: |
CH3-12/190 1600A |
Installation: |
Fixed |
Rated Current: |
630A-4000A |
Rated Voltage: |
12kv 17.5kv 24kv 40.5kv |
Scope Of Application: |
Switchgears |
Customized: |
Available |
Application: |
High-voltage |
Structure: |
Bushing Insulator |
Type: |
A Type Insulator |
Material: |
Epoxy Resin |
Brand: |
Stong |
Product Description
Product advantages:- APG(Automatic Pressure Gelation) technology for epoxy insulators, best choice!
- Premium epoxy resin, hardener and silicone powder, sufficient 3-speed mixing and vacuumization, eliminating bubbles
- Precise mold development, workers will strictly execute production technology requirement of solidifying time and curing time.
Product features:Executed Standard: IEC60273-1990 for post insulators >1000V rated voltage
Rated voltage: 12K, 15KV, 17.5KV, 24KV, 36KV,40.5KV
Working temperature: -20°C to +75°C
Color: RAL8016 or any other color customer want Model Name: | CH3-12/190 Contact Box |
Brand: | Stong(Shentong) |
Type: | Contact Box |
Application: | High Voltage / Switchgear |
Color: | brown, red |
Product Certification: | CE and ISO 9001:2000 |
Rated voltage: | 12 KV |
Rated Current: | 1600A |
MOQ: | 50pcs |
Packing: | 1. Each one is wrapped with plastic film2. Packed in cartons 3.Cartons are sealed in a wooden box 4.The cases are bound with iron belts externally |
Loading port: | Shanghai Port / Ningbo Port |
Payment terms: | L/C,T/T, Western Union |
Delivery time: | within 15 days, depends on order quantity |
Additional: | 1. OEM are welcome 2. High quality & timely delivery 3. Reasonable price 4. In a variety of designs and Specification |
Something clients may want to know before ordering:-Packing: cartons+plastic pallet
-Delivery time: stock in houseware for popular models; for drawing production, it needs 1 month for mold development additionally.
-OEM and date stamp is available on all insulators
PLS Follow me in the LinkedIN

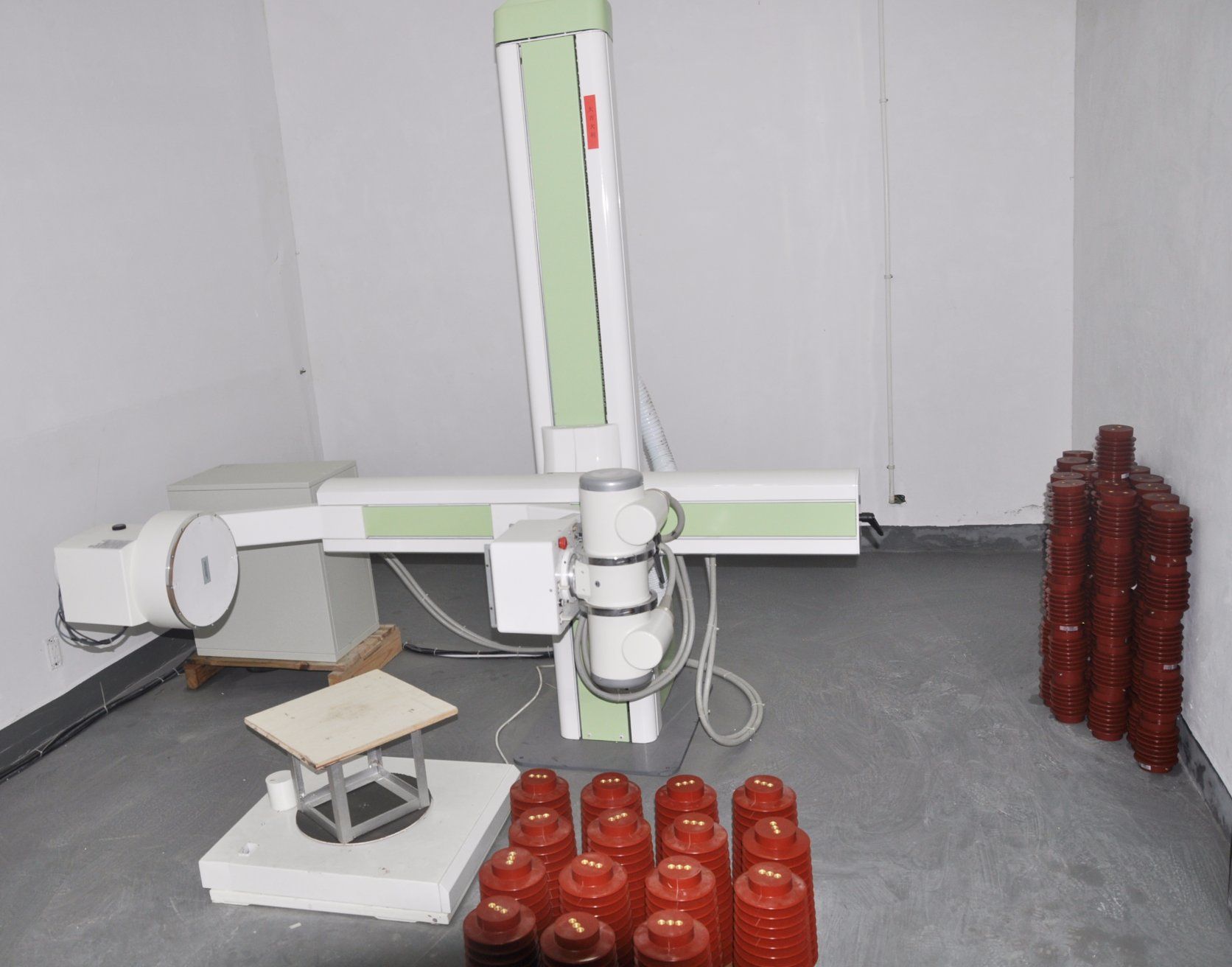

Joimmy ChowWhy US? Here are our advantages: -Professional Inspector(X-Ray inspector to ensure the quality of our products!)
which costs 30,000 US dollar!
- Many years manufacturing and export experiences, way better understand the demands of customers, could strictly control and guarantee in production, commissioning, inland transportation, sea shipment, and overseas after-sale services.Epoxy Resin Insulating Contact Box
For Switchgear Insulators.
12KV-24KV-40.5KV
630A-1250A-1600A-2000A-3150A-4000A
Shentong Technology Co., Ltd. is an integrated professional power equipment manufacturing enterprise of science, industry and trade, which is located in Wenzhou, Zhejiang which is called "The city of electrical"in China. The current enterprise registration funds is one hundred million Yuan. Our company has throughed the ISO9001 international quality certification system. We are also the national power "two network transformation"recommended enterprise. Our company is specialized in the production of HV/LV Integrated Switchgears and switchgears' accessories, power station accessories, such as: Power Transformer, 10kv-40.5kv intelligent vacuum circuit breaker, epoxy resin casting insulators, wall bushing, contact box, earthing switch, load switch, 10kv-35kv current transformer, 10kv-35kv voltage transformer, low voltage current transformers, solenoids, SF6 load switch, high voltage metering box and other electric components. Chinese professional terminal manufacture, Chinese vcb manufacture, electrical manufacture, switchgear manufacture, Chinese CT PT manufacture
Our company has a group of senior technical production staff. The company adopts modern production and management modes. With high quality products and perfect after sale Service, we got good reputation from customers. The products are widely used in aerospace, metallurgy, petrochemical, port, municipal and other industries.
We not only provide customers with excellent quality products, but also strive to use our years of professional experience to provide customers with the best solutions and characteristics of personalized services.
Product Advantages: Well and High Quality Control, Prompt Delivery, New Product, Customer's Design and Logo are Welcome, Competitive Prices, Earth-friendly Products, Small Order Acceptable, ODM Accepted, OEM Accepted,
