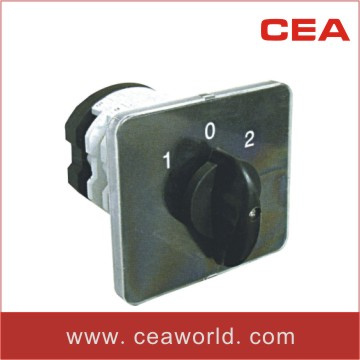

Changeover Switch/ Rotary Switch/ Cam Switch (FWZ12)

Name: Changeover Switch/ Rotary Switch/ Cam Switch (FWZ12)
Brand: all-electronics-online.com
SKU: 690468025
Availability: InStock
Rating: 4.7 (36 reviews)

Price:	US $ 2.6/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	100/Piece
Pay Type:	L/C,T/T

Contact Supplier

Showroom Product Company Profile

Prod Model:	FWZ12-20/-25/-32/-75/-125
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Electrical Life:	20X104
Mechanical Life:	6X104
Usage:	Digital Products

Product Description

This combined switch is mainly used in the circuit of AC 50Hz, rated voltage 690V and below, DC voltage 240V and below, rated current up to 125A, to manually make and break the circuit non-frequently as transferring of control, also it can directly control small capacity alternating motor, used as master control equipment motor control switch, master control switch and welding machine etc

Model	Lth A	Ui V	Ue V	AC-21A	AC-21A	AC-32A		AC-2		AC-3		AC-4		AC-15	DC-13
Model	Lth A	Ui V	Ue V	le A	le A	le A	P kw	le A	P kw	le A	P kw	le A	P kw	le A	le A
FWZ-20	20	600	400	20	20	15	7.5	15	7.5	11	5.5	3.5	1.5	4
			240											5	1
			120												5
FWZ-25	25		440	25	25	22	11	22	11	15	7.5	6.5	3	5
			240											8	1.5
			120												9
FWZ-32	32		440	32	32	30	15	30	15	22	11	11	5.5	6
			240											14	11
			120												25
FWZ-75	75		440	75	75	72	30	72	30	32	24	23	11.5
FWZ-75	75		120												60
FWZ-125	125		440	125	125	90	45	90	45	36	45	30	18.5
Numberof ycles of operati on		No-load		8500										Electrical life
		Load		1500										20×10 4	6×10 4
		Load		1500										Mech anical life(times)
		Total		1000										6×10 4

Founded in 1999, CEA Group International Co., Ltd.Is being acknowledged as one of the most respected nationwide manufacturers and exporters of low voltage electrical apparatus in P.R of China.

The Group, comprising 5 factories, owns a production area of 50, 000m2 and employs more than 1, 000 staff.During the past 13 years, we invested abundant resources in both research and development and employee training programs.The company was ranked in the front of 100 tops of wenzhou private enterprises." CEA" is named as a famous trademark in domestic and overseas markets.Our company has took the lead in applying IS09001 Quality Management System and ISO14001 Environmenttal Management System.Many products are certified under international certificate, such as CB, CE, BS, VDE, UL, SONCAP, CCC.

Currently, we have manufactured and exported more than 160 varieties of products, with over 2000 types of low voltage electrical apparatus including all kinds of LED lighting, Circuit Breakers, Contactors, Relays, Starters, Switches, , Wire & Cable and Electrical Accessories etc.As a result of our high quality products and outstanding customer service, we have gained a global sales network reaching South East Asia, Middle East, South America, Africa, Europe.

We are fully aware of the fact that only "Versatile Staff, Distinctive Quality and Advanced Technology"enable us to survive and succeed in today's intensively competitive market.Hence, we will be with overall technology support, good service to meet the requirements of world.

Enquiries from both domestic and overseas customers are cordially welcomed.Just Tell Us Your Requirements and Let Us Do The Rest For You!
