| Prod Model: |

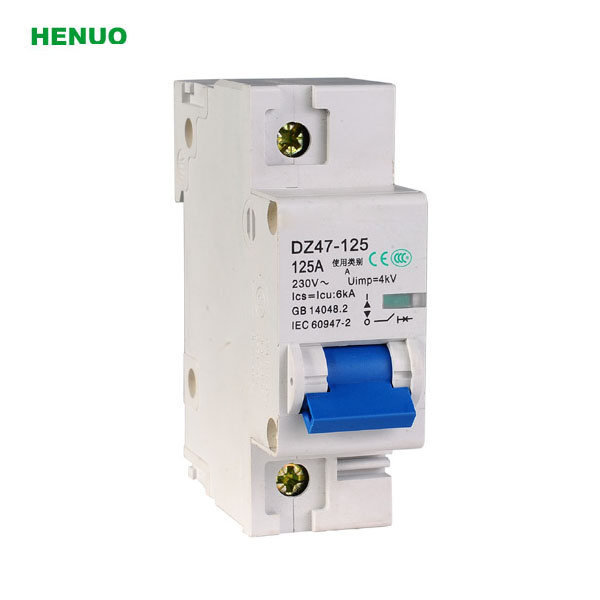

DZ47-125 |
| Markets: |
South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Color: |
White |
| Rated Current: |
63A-125A |
| Rated Voltage: |
230VAC(1p), 400VAC(2/3/4p) |
| Characteristic Curve: |
B, C, D |
| No. Of Pole: |
1p, 2p, 3p, 4p |
| Breaking Capacity: |
Low Voltage Circuit Breakers |
| Operation: |
Manual Type |
| Speed: |
Normal Type Circuit Breaker |
| Arc-extinguishing Medium: |
Air |
| Installation: |
Fixed |
| Structure: |
MCB |
| Poles Number: |
3 |
| Certification: |
CCC |
Product Description
HL32-100 Isolating Switch
HL32 series isolating switch is suitable for distribution box control loop with AC 50Hz or 60Hz, and the rated working voltage is up to 230V or 400V and below power as well as for power distribution unit with 100A directly for no-load division and act as isolators . Mainly as a master switch of terminal electrical, also can be used to isolate the control of various types of motors, small power appliances and lighting,etc.
This product complies GB140048.3and IEC60947-3 standard.
SPECIFICATION:
Model No: |
HL30-100 |
Rated Current: |
1A~63A |
Rated Voltage: |
230Vac(1P), 400Vac(2/3/4P) |
Characteristic Curve: |
B, C, D |
No. of Pole: |
1P, 2P, 3P, 4P |
Breaking Capacity: |
6000A |
Standards: |
IEC/EN 60898 |
Certificates: |
CE
|
1. HL30-100 ISOLATOR main switch products
2. CE&CB certificates
3. Plenty OEM experiences
4. New isolating item
Function and Feature:
Capable of switch electric circuit with load
Adaptable to padlock device
Capable of quickly releasing stored energy operation
Highlight of high making and breaking capacity
Used as main switch for household and similar installation
Rated Current(In): 20, 32, 63, 80, 100A
Rated Voltage(Un): 230VAC/400VAC
Number of Poles: 1P, 2P, 3P, 4P
Rated frequency: 50/60Hz
Electrical endurance: 10000 cycles
Mechanical endurance: 20000 cycles
Rated impulse withstand voltage(Uimp): 6kv
Type of Terminal: Lug type
Terminal Capacity: Cable up to 35mm2
Torque of screw: 2.5Nm
IP degree: IP 20
Width: 17.6mm/module
Standards: IEC60947-3, EN60947-31. HL ISOLATOR main switch products
2. CE&CB certificates
3. Plenty OEM experiences
4. New isolating item
Function and Feature:
Capable of switch electric circuit with load
Adaptable to padlock device
Capable of quickly releasing stored energy operation
Highlight of high making and breaking capacity
Used as main switch for household and similar installation
