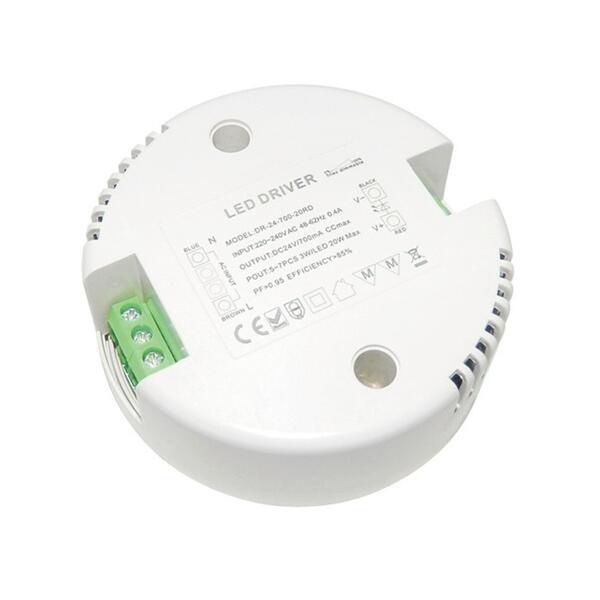

Circular Appearance Design Power Supply for Downlight

Name: Circular Appearance Design Power Supply for Downlight
Brand: all-electronics-online.com
SKU: 816822665
Availability: InStock
Rating: 4.9 (123 reviews)

Price:	US $ 12.9-14.9/Piece
Min Order:	100/Piece
Pay Type:	T/T,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	DR-24-700-20RD
Dimming Range:	5%-100%
IP Degree:	IP20
Efficiency:	85%
Dimensions:	D76X27mm
Output Power:	60W Max
Warranty:	2years
PF:	>0.95
Frequency:	48-62Hz
Operating Temperature:	-25~+55
Relative Humidity:	5-59%
Usage:	Light
Output Type:	Single
Driving Method:	LED Regulator Voltage
Circuit Structure:	PWM Controlled
Power Supply Mode:	Customed
Power Supply Voltage:	100-240V/AC
Brand:	No Brand

Product Description

Circular appearance design power supply for downlight

Technical parameters

Input voltage	100-240V/AC
Frequency	48-62Hz
Power factor	PF>0.95
Over-voltage production	110%-150%rates output voltage
Dielectric strength	IP-0/P:3750V/AC/1min
Start,rise,retention time	1500ms,80ms,20ms(230VAC full load)
Operating temperature	-25~+55ºC
Relative humidity	5~95%
Dimension	D76X27mm

Operating characteristic:
• Compliant with SELV standards with output voltage<60DC
• Efficiency>85%
• Soft start and low ripple current output
• Fit for class I protection lighting fixture
• Have multiple protection for output exception such as open circuit,short circuit,over load etc.
• Approved by over-temperature protection certification so it can be fit for class F lighting fixture
• Compliant with international standards sush as safety,EMI,anti-interference etc.
• Circular power supply and appearance design are suitable for ceiling lamp, down light, absorb dome light. It is convenient
• Work is stable,Flicker free and long service life,3 years warranty.

Model and operating parameters

Constant Current
Model	Dimming Principle	Input Voltage (V/AC)	Output Power (W)	Output Current (mA)±5%	Output Voltage (V/DC)	No Load (Vmax)	PF	Efficiency	Notes
DR-CC-30	Non dimmable	100-240	30	350	29-58	65	>0.95	82-86%
				500	20-40	50
				700	15-30	40
				900	11-22	30

Constant voltage

DR-CV-30	Non dimmable	100-240	30	2000	12V±5%	12V±5%	>0.95	80-86%
				1200	24V±5%	24V±5%
				625	48V±5%	48V±5%

Conformance with regulations

• EN 55015
• EN 61000-3-2CLASSIC
• EN 61000-3-3
• EN 61000-4-2,3,4,5,6,8,11
• EN 60598
