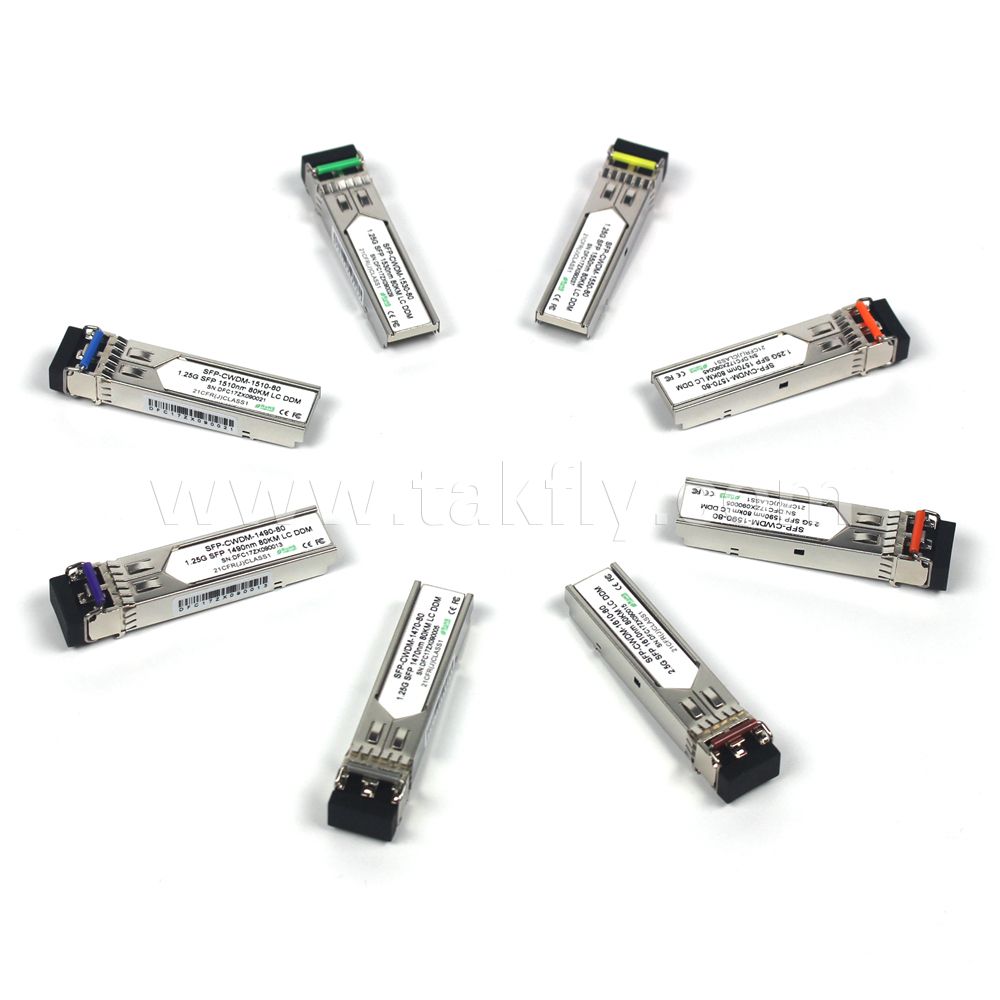

Cisco, Huawei, HP 1.25g 20km Dual Fiber SFP Module Transceiver
| Price: |
US $ 5-20/Piece |
| Trade Terms: |
FOB,DDP,FCA |
| Min Order: |
1/Piece |
| Pay Type: |
T/T,Western Union,Paypal |
| Prod Model: |
DF-TK-1310 transceiver |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Item Name: |
SFP Module/Optical Transceiver |
| Working Speed: |
10/100/1000m |
| Working Module: |
Sm |
| Fiber Type: |
Dual Fiber |
| Reach Distance: |
20km |
| Customized: |
Available |
| Ddm: |
Support |
| Compatible Brand: |
Cisco,Huawei,HP,etc |
| Usage: |
Workstation |
| Type: |
Wired |
| Support Network: |
Ethernet |
| Information Content: |
Data |
| Certification: |
RoHS |
| Condition: |
New |
Product Description
Cisco,Huawei,HP 1.25g 20km Dual Fiber SFP Module Transceiver(Small Form-factor Pluggable) A small transceiver that plugs into the SFP port of a network switch and connects to Fibre Channel and Gigabit Ethernet (GbE) optical fiber cables at the other end. Superseding the GBIC transceiver, SFP modules are also called "mini-GBIC" due to their smaller size. By choosing the appropriate SFP module, the same electrical port on the switch can connect to fibers of different types (multimode or singlemode) and different wavelengths. If the fiber is upgraded, the SFP module is replaced.
Main charateristic
1.25Gbps 20km FR-DT SFP
Part number:DF-TK-1310
Data rate : 1.25Gbps
Wavelength(Tx/Rx): 1310nm
Distance: 20km
Laser: FP
Fiber: SM
Optical Power: -9~ -3dBm
Sensitivity: ≤-24dBm


Feature
Up to 1.25Gbps bi-directional data links
Hot-pluggable SFP footprint
1310nm Fabry-Perot laser transmitter
Duplex LC connector
RoHS compliant and Lead Free
Up to 20 km on 9/125μm SMF
Metal enclosure for lower EMI
Single power supply 3.3V
Low power dissipation <500mW typical
Commercial operating temperature range: 0ºC to 70ºC
Applications
1.25Gbps 1000Base-LX Ethernet
1.06 Gbps Fibre Channel
Spec| PRODUCT DETAILS |
| Device Type | SFP (mini-GBIC) transceiver module - RJ-45 |
| Enclosure Type | Plug-in module |
| Dimensions (WxDxH) | 1.4 cm x 7.1 cm x 1.4 cm |
| Cabling Type | 1000Base-T |
| Data Transfer Rate | 1 Gbps |
| Data Link Protocol | Gigabit Ethernet |
| Max Transfer Distance | 120 Km |
| Compliant Standards | IEEE 802.3 |
| Manufacturer Warranty | 1 years warranty |
| Designed For | Cisco 5508; Catalyst 2970G-24, 3560-12, 3560-24, 3560-48, 3560E-12, 3560E-24, 3560E-48, 3560G-24, 3560G-48, 3560X-24, 3560X-48, 3750-24 |
| GENERAL |
| Device Type | SFP (mini-GBIC) transceiver module |
| Enclosure Type | Plug-in module |
| Width | 1.4 cm |
| Depth | 7.1 cm |
| Height | 1.4 cm |
| NETWORKING |
| Connectivity Technology | Wired |
| Cabling Type | 1000Base-T |
| Data Link Protocol | Gigabit Ethernet |
| Data Transfer Rate | 1.25 Gbps |
| Max Transfer Distance | 100 m |
| Features | Hot swap module replacement, auto-uplink (auto MDI/MDI-X) |
| Compliant Standards | IEEE 802.3 |
| EXPANSION / CONNECTIVITY |
| Interfaces | 1 x network - Ethernet 1000Base-T - RJ-45 |
| Compatible Slots | 1 x SFP (mini-GBIC) |
| ENVIRONMENTAL PARAMETERS |
| Min Operating Temperature | 0 °C |
| Max Operating Temperature | 70 °C |

Any queryabout the sfp optic module transceiver,please leave me an inquiry or contact me directly.
Takfly Communications Co., Ltd. is a Hi-Tech enterprise having its own brand and specializing in R&D, manufacture and sales of fiber optical communications equipments.
The main products of TAKFLY include fiber optic patch cord, connector, adapter, optical coupler, attenuator, optic media converter, optic splice closure, optic terminal box, ODF etc, which are widely used in telecommunications, broadband, broadcast, CATV and network industry. All the products acquired the approval of the Network Access License for Telecommunication Equipment Ministry of Information Industry, PRC, ISO9001, UL and CE standard, which ensure the reliability and make them sold very well not only in the domestic market but also the overseas market.
TAKFLY was establish in 2000, grow up rapidly. Now it has workshop area about 3000 square meters, more than 200 workers, the production capacity of fiber optic connectors is about 600, 000PCS per month. It controls the quality constantly and strictly in order to give the best products to the users. The outstanding features and advantage are the high technology, professional and excellent sales team, efficient and sound management, competitive price, wide and superior channels, as well as high-quality and flexible service.
Many international exhibitions upgraded "TAKFLY" as the well-known brand in the world. To be the super leader of the optical communications scopes in China is the goal of TAKFLY. In the next five years, TAKFLY will keep the strategic pattern of development ---"based in South China, penetrate into whole country, extend over the world". It will bring the fiber optic industry into a brilliant future. TAKFLY--- Your Honest Team, will be always ready for you.
