Climatic Hast Aging Test Chamber for IC Semiconductors

Name: Climatic Hast Aging Test Chamber for IC Semiconductors
Brand: all-electronics-online.com
SKU: 725364562
Availability: InStock
Rating: 5 (83 reviews)

Price:	US $ 4000-8000set
Min Order:	1set
Pay Type:	L/C,T/T,D/P,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	ZH-HAST-45
Certification:	Ce, RoHS, FCC, ISO, SGS Certificates
Power:	Electronic
Humidity Range:	70~100%R.H
Service:	OEM / ODM / Non-Standard Available
Applications:	Electronic Products
Pressure Range:	101.3kpa +0.0kg/Cm2 ~ 2.0kg/Cm2
Power Supply:	AC 1 220V 60/50Hz
Internal Size (Wxhxd)mm:	300X500
Temp.Range:	100c-135c
Warranty:	12 Months

Product Description

Climatic HAST aging test chamber for IC semiconductors

1. Imported high-temperature solenoid valve dual structure, which extent reduced the use of failure rate mostly;
2. Independent steam chamber, to avoid direct impact of steam products, so as to avoid local damage to the product;
3. Door lock force-saving structure, to solve the difficulty of locking disc-type handle in the first generation of products;
4. Exhaust cooling air before test; cooling air design in test (air discharge in test bucket) to improve pressure stability;
5. Ultra-long-term experimental operation time, test machine running for loing time about 400 hours;
6. Water level protection, through the test room water level Sensor protection;
7.tank pressure design, the box pressure (150 ºC) 2.65kg, in line with water pressure test 6kg;
8. Two-stage pressure safety protection device, adopt two-stage combination controller and mechanical pressure protection device;
9. Safety protection push button, emergency safety device two-stage automatic push button.
10. Bias test terminal voltage up to 3000V (optional);
11.USB interface for history data curve output.

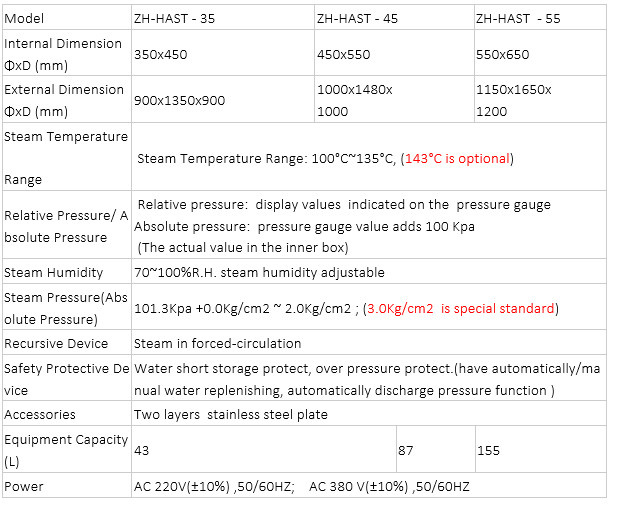

Product parameters:

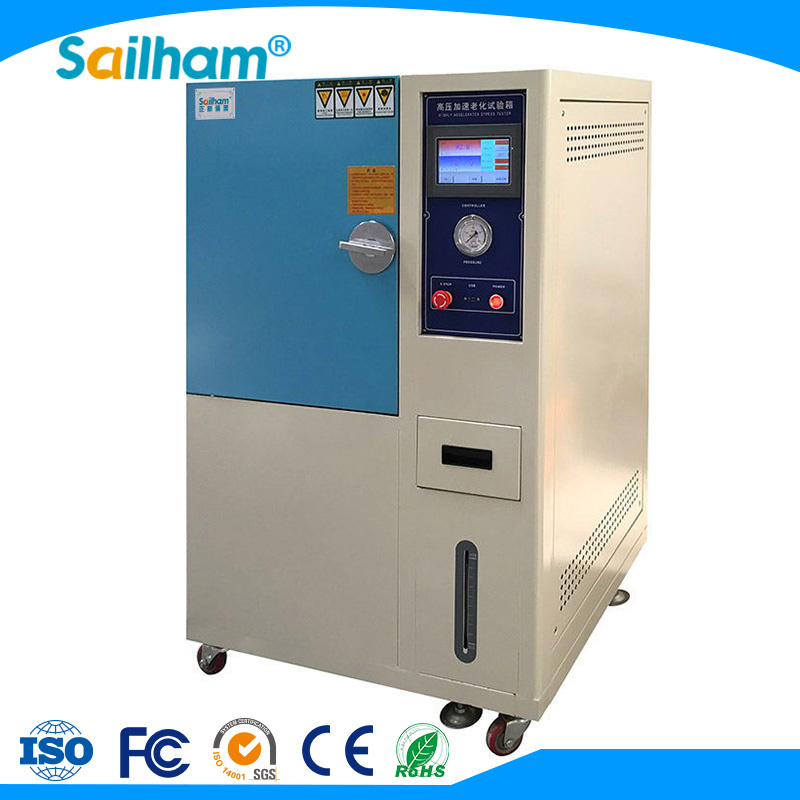

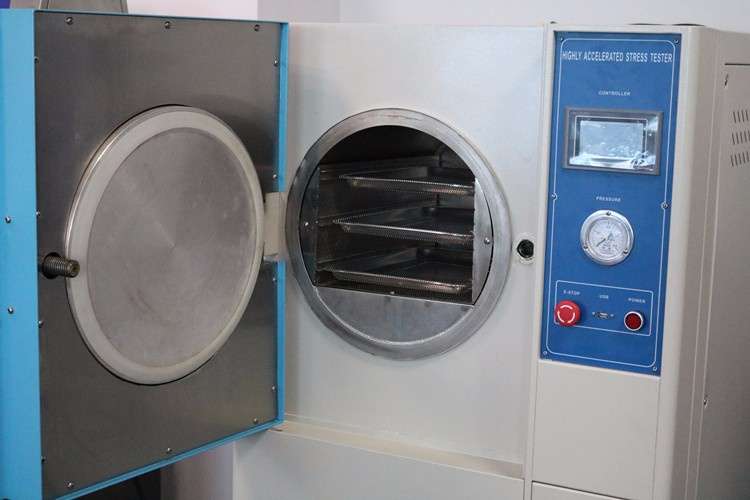

Product image:

TRADE SHOW:

CERTIFICATES:

Sailham Equipment (Dongguan) Co., Ltd. is a leading manufacturer that specializes in manufacturing and marketing the cost effective and reliable environmental test chambers, such as: Temperature and Humidity Chamber series, Highly accelerating tester series, Salt Spray Chamber, Vacuum Oven, Walk-in chamber, Thermal Shock Chamber, Ageing Testing series and so on, mechanical tester such as Universal testing machine, dropt tester, vibration test table, falling ball impact tester etc...Many of the environmental test chambers built include optional features or customization to exactly fit the customer's application.

Sailham create temperature & humidity extremes in chambers from benchtop to drive-in, and serve for a very wide industries like electronic, battery, semiconductor, LED photoelectricity, injection molded plastics, cables and wires, plastics, hardwares, paper packaging, automatic, solar photovoltaic, paints and adhesives, and other R & D institution, colleges and universities for simulation environmental laboratory test and quality control.

Sailham are committed to manufacture and service quality environmental chambers to our customers, also get a good reputation in the market at home and abroad with efforts under Sailham teamwork. The company has also passed the ISO 9001, always follows the concept of Quality, Profession, Creation, Credibility, Application, Efficiency. Customers'request and satisfaction, which is our maximum power all the time.
