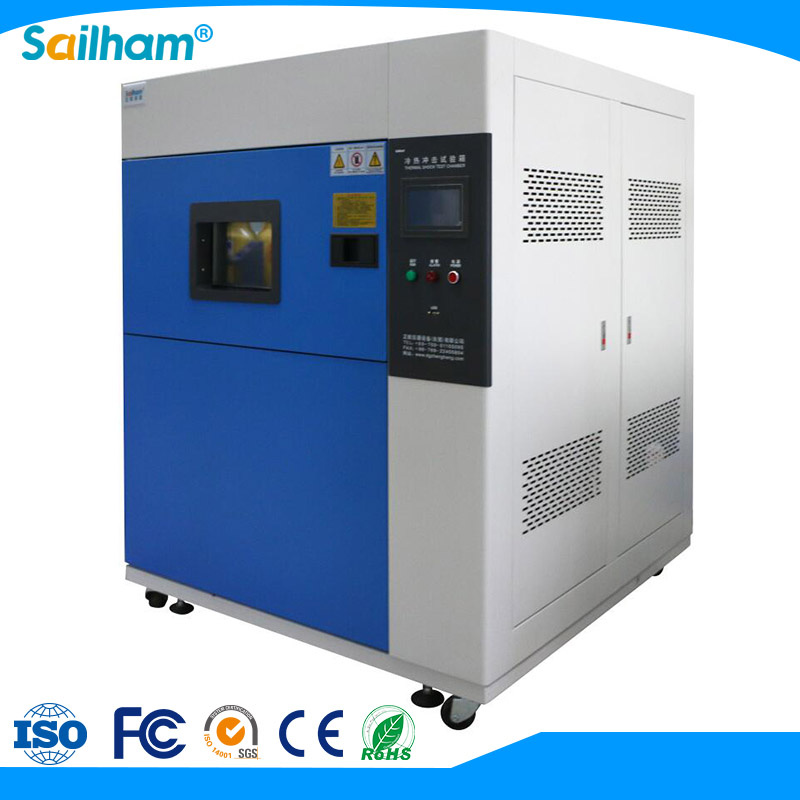

Thermal Shock Test Chamber for Semiconductor and High Polymer Materials
| Price: |
US $ 4000-8000set |
| Min Order: |
1set |
| Pay Type: |
L/C,T/T,D/P,Western Union,Paypal |
| Prod Model: |
ZH-TS-42 |
| Certification: |
Ce, RoHS, FCC, ISO, SGS Certificates |
| Shock Range: |
-60c~+150c |
| Types: |
Basket-Type (2-Zone) or 3-Zone |
| Service: |
OEM / ODM / Non-Standard Available |
| Applications: |
School, Hospital, Lab, Factory |
| Inner Materials: |
SUS#304 Stainless Steel |
| Preheating Temperature: |
200 Degree |
| Cooling Type: |
Water Cooling / Air Cooling |
| Power: |
Electronic |
| Warranty: |
12 Months |
Product Description

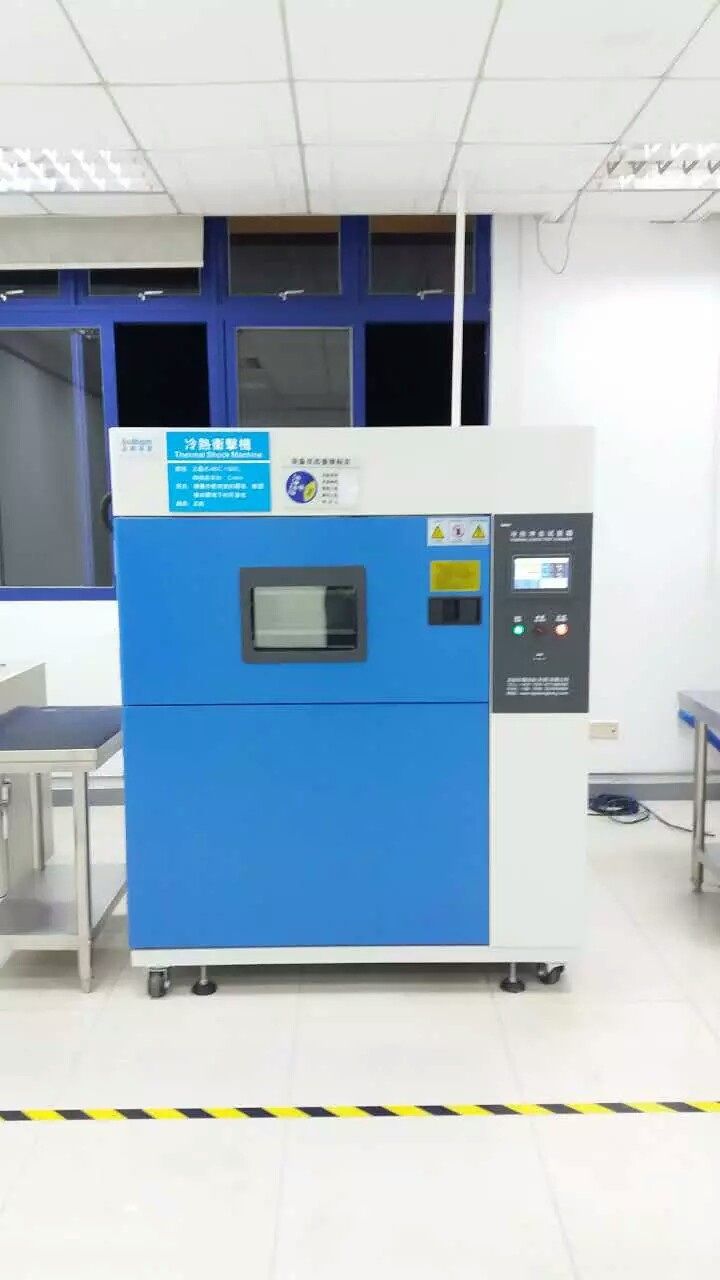

Thermal shock test chamber for semiconductor and high polymer materials is also known as rapid temperature changing test chamber, which is used to test the material structure or composite materials, that whether it can withstand the temperature continuous changes in an instant by the extremely high temperature and very low temperature environment, in order to test the chemical changes or physical changes caused by shortest possible time with heat or cold shrink.
It's applicable to objects, including metal, plastic, rubber, electronics and other materials, can be used as a basis for improvement of products as reference.
The equipment is divided into three parts: high temperature zone, low temperature zone, and test zone, (for 2-zone chamber, it's divided into three parts: high temperature zone, low temperature zone and nacelle for moving up and down with sample on it), and the test sample is completely static. Using a unique heat storage, storage structure, forced hot and cold air duct switch into the test area to complete the hot and cold temperature impact test.
Features:1. Japan imported LCD touch controller.
2. Three sections: High temperature zone, low temperature zone, testing zone.
3. High formula memory capacity can store 120 patterns, 9999 cycles, setting time for each pattern is 9999 Hrs 59 Mins.
4. RS-485 communication interface device, capable of connectig with computer.
5. 2 zone or 3 zone shocks chamber available
6. For 2-zone chamber, it's divided into three parts: high temperature zone, low temperature zone, and nacelle for moving up and down with samples on it)
7. Automatically alarming and shutting down device. 8 Touch screen controller
8. Best after sales service: One year free parts maintenance.
9. Meet international test standards.
10. Customization is available & welcomed.Product Specifications:| Model | ZH-TS-42
(A~C) | ZH-TS-60
(A~C) | ZH-TS-80
(A~C) | ZH-TS-100
(A~C) | ZH-TS-120
(A~C) | ZH-TS-150
(A~C) |
| Inner size: WHD (cm) | 40*30*35 | 50*30*40 | 50*40*40 | 50*50*40 | 60*40*50 | 60*50*50 |
| External size: WHD (cm) | 150*180*150 | 160*175*160 | 160*185*160 | 160*185*170 | 170*185*170 | 170*195*170 |
| Temperature range (Test zone) | High temperature:+60ºC~+200ºC; low temperature: -10ºC~-65ºC( A:-45ºC; B:-55ºC; C:-65ºC) |
| Heating Time | RT~200ºC about 30min |
| Cooling Time | RT~-70ºC about 85min |
| Temp. Conversion Time | Less than 10S |
| Temp. Recovery Time | Less than 5min |
| Temp. Deviation | ±2.0ºC |
| Temp. Fluctuation | ±0.5ºC |
| Material | External material: SUS#304 Stainless steel plate
Internal material: SUS#304 Stainless steel plate |
| Set Mode | Chinese / English menu, touch button input |
| Controller | Tato in Taiwan |
| Cooling System | Water-cooled or air-cooled, Imported GEA Compressor in France |
| Protection devices | Fuse switch, compressor overload switch, refrigerant high and low pressure, protection switch, super humidity over tempe. protection switch, fuse, failure warning system |
| Patrs | Viewing window;
1 Φ50mm (Φ100mm) access port or more available;
2 layers or more available
4 flexible footwheels |
| Power | AC380V 50/60Hz Three-phase four-wire, AC power |
| weight (kg) | 750 | 790 | 830 | 880 | 950 | 1050 |

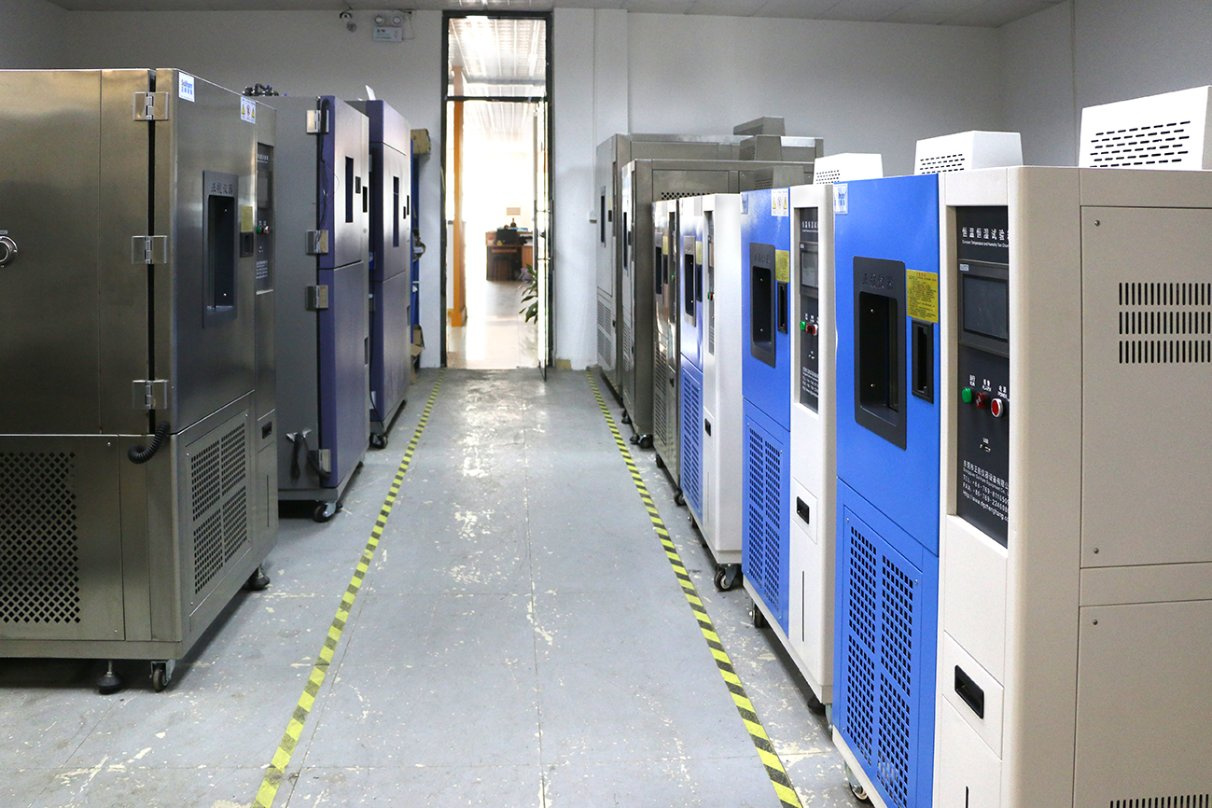

Work shop
Wooden case packing for export:

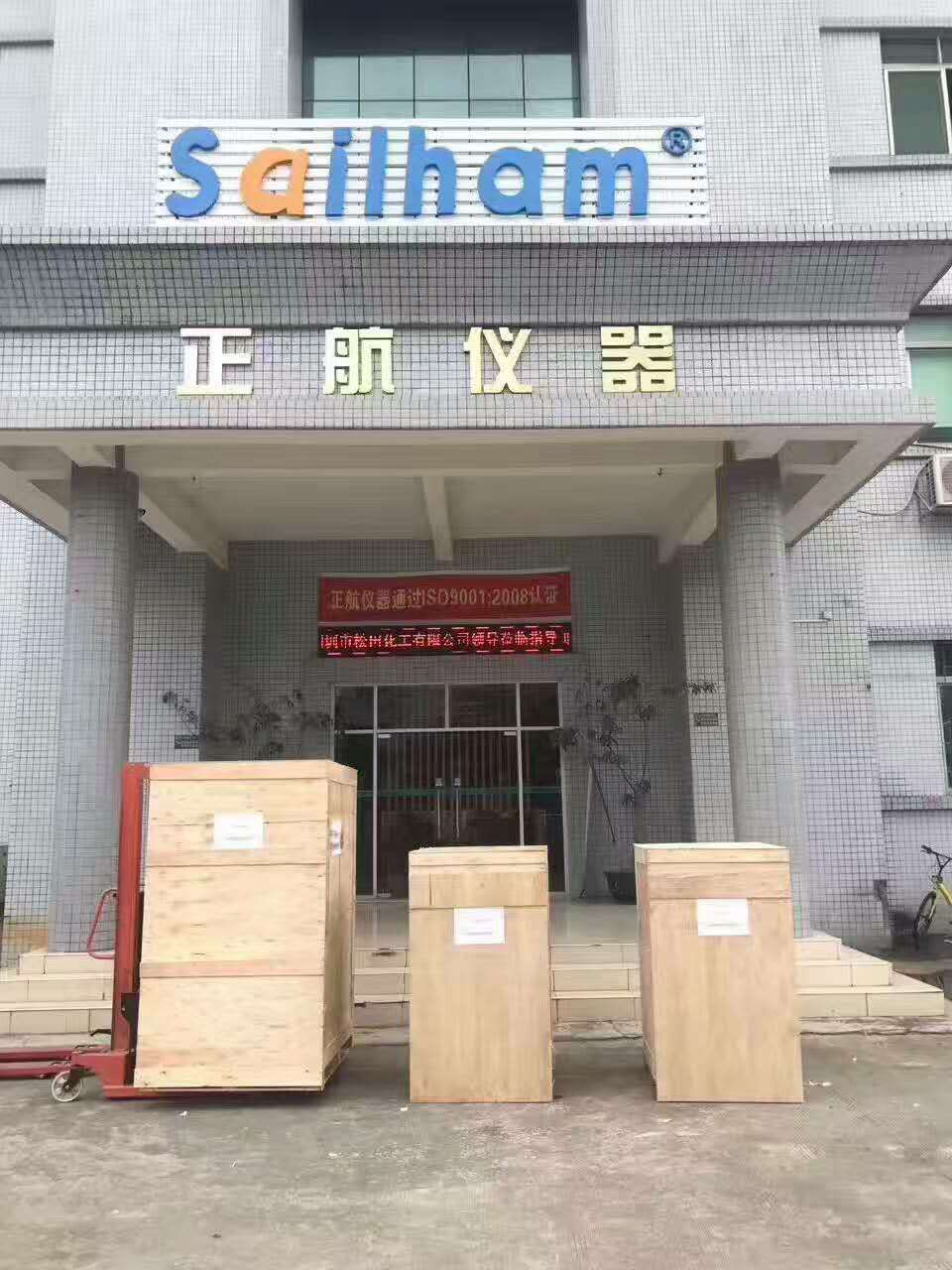

Sailham Equipment (Dongguan) Co., Ltd. is a leading manufacturer that specializes in manufacturing and marketing the cost effective and reliable environmental test chambers, such as: Temperature and Humidity Chamber series, Highly accelerating tester series, Salt Spray Chamber, Vacuum Oven, Walk-in chamber, Thermal Shock Chamber, Ageing Testing series and so on, mechanical tester such as Universal testing machine, dropt tester, vibration test table, falling ball impact tester etc...Many of the environmental test chambers built include optional features or customization to exactly fit the customer's application.
Sailham create temperature & humidity extremes in chambers from benchtop to drive-in, and serve for a very wide industries like electronic, battery, semiconductor, LED photoelectricity, injection molded plastics, cables and wires, plastics, hardwares, paper packaging, automatic, solar photovoltaic, paints and adhesives, and other R & D institution, colleges and universities for simulation environmental laboratory test and quality control.
Sailham are committed to manufacture and service quality environmental chambers to our customers, also get a good reputation in the market at home and abroad with efforts under Sailham teamwork. The company has also passed the ISO 9001, always follows the concept of Quality, Profession, Creation, Credibility, Application, Efficiency. Customers'request and satisfaction, which is our maximum power all the time.
