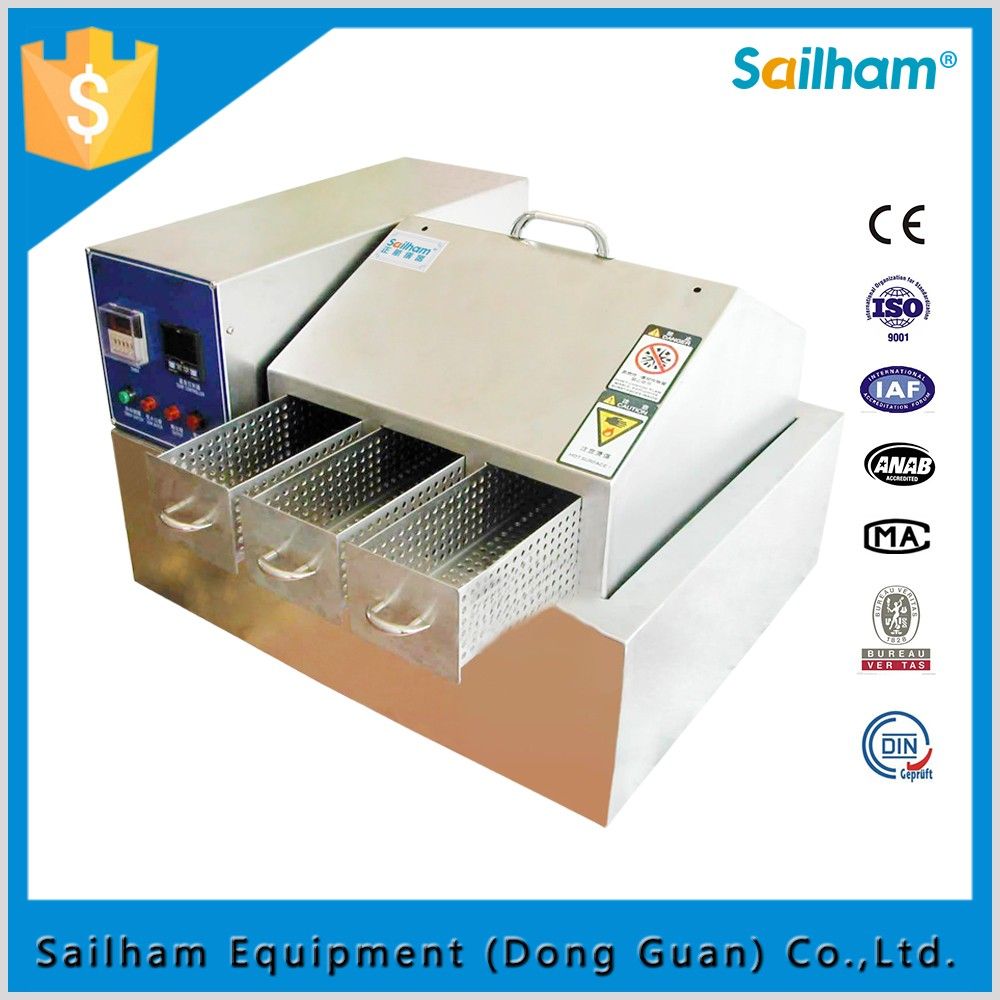

Steam Aging Test Chamber for Semiconductor IC

Name: Steam Aging Test Chamber for Semiconductor IC
Brand: all-electronics-online.com
SKU: 725310972
Availability: InStock
Rating: 4.3 (150 reviews)

Price:	US $ 500-4000set
Min Order:	1set
Pay Type:	L/C,T/T,D/P,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	ZH-SA-500
Certification:	Ce, RoHS, FCC, ISO, SGS Certificates
Power:	Electronic
Material:	SUS#304 Stainless Steel
Service:	OEM / ODM / Non-Standard Available
Applications:	Electronic Products
Single Tank Size:	100 X 30 X 380mm (W X H X D)
Power Supply:	AC 1Ψ 220V 60/50Hz
Heat-up (Min):	35min
Temp.Range:	R.T+10°c ~ +98°c
Warranty:	12 Months

Product Description

Steam Aging Test Chamber for semiconductor IC is used to test and determine oxidation, fatigue aging, performance degradation, corrosion test of Electronic products, electronic appliances, electronic hardware, metal plastic, chemical coatings, paint, automobile and motorcycle accessories, auto parts, semiconductor, passive components, and parts, electronic components, metal products, electronic products, Bicycles, sanitary ware, plumbing equipment, screws, fasteners, magnetic materials in the system lock industry, hardware furniture, sports equipment and other products of. Chip resistors, components, components, electronic components, metal pins, solder paste, as such aging test, to accelerated life time test,

Characteristics:
1. Controlled by microcomputer digital LED.
2. With ime planning function.
3. With safety device, including multi over-temperature protection and power off when out of water.
4. Testing high temperature high humidity to spare pares, components.
5. Digital electronic indicators + S.S.R with PID automatic calculation capability.
6. Have time planning function, the maximum setting is 9990 minutes.

Product parameters:

Model		ZH-SA-500
Test basket.W×H×D(mm)		500×400×170, with 3 test tanks
External Dim.W×H×D(mm)		610×540×420
Single tank size		100 x 30 x 380mm (W x H x D)
Performance	Temp.Range	R.T+10°C ~ +98°C about 30 minutes
	Temp.Constancy	±0.3°C
	Temp.Resolution	±0.1°C
	Heat-up(min)	35
Material	Exterior	SUS#304 stainless steel plate
	Interior	SUS#304 stainless steel plate
	Insulation	PU & Fiber glass wool
Systems	Heating	Chrome Steel Strip Wire Heater
Systems	Controller	Digital electronic indicators controller+S.S.R. With P.I.D & timer max 9,990mins
Safety Devices		Overheating prevention protector, Water shortage protector, steam outlet hole, No fuse breaker
Power		AC 1Ψ 220V 60/50Hz
