CNC Stepper Motor NEMA 23 Bipolar CNC Mill Lathe Router H571

Name: CNC Stepper Motor NEMA 23 Bipolar CNC Mill Lathe Router H571
Brand: all-electronics-online.com
SKU: 821801155
Availability: InStock
Rating: 4.8 (100 reviews)

Price:	US $ 7.41-11.53/Piece
Min Order:	500/Piece
Pay Type:	L/C,T/T,D/P,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	H571/H572
Size:	57mm
Step Angle:	1.8
Length:	41-112mm
Rated Current:	0.62-4.2A
Rated Resistance:	0.4-12ohm
Phase Inductance:	1.2-28mh
Holding Torque:	40-280n.Cm
Detent Torque:	2.5-12n.Cm
Lead Wire:	4.6
Number Of Stator:	Two-Phase
Excitation Mode:	HB-Hybrid
Operate Mode:	Three-Phase Six-Step
Type:	Hb Stepper Motor
Certification:	Ce RoHS
Brand:	I.CH

Product Description

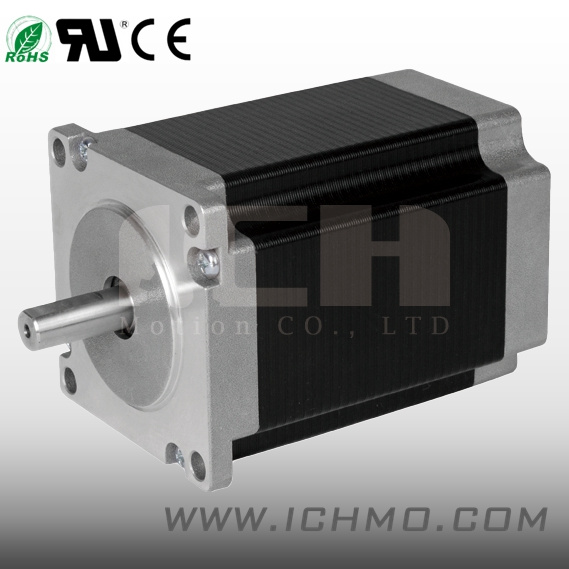

I. CH MOTOR - Hybird Stepper Motor H571(57MM) - Nema 23

Specifications:
-Step Angle: 1.8°
-Length: 41-112mm
-Rated Current: 0.62-4.2A
-Phase Resistance: 0.4-12ohm
-Phase Inductance: 1.2-28mH
-Holding Torque: 40-280N. Cm
-Detent Torque: 2.5-12N. Cm
-Lead Wire No.: 4, 6
-Weight: 470-1400g

Drawing:

Electrical Specification
Series Model	Step Angle ( o )	L (mm)	Rated Current (A)	Phase Resistance ( Ω )	Phase Inductance (mH)	Holding Torque (N.cm)	Detent Torque (N.cm)	Lead Wire (NO.)	Motor Weight ( g)
H571-04010	1.8	41	1.0	5.2	5.5	40	2.5	6	470
H571-05506	1.8	41	0.62	12	24	55	2.5	4	470
H571-05520	1.8	41	2.0	1.2	2.5	55	2.5	4	470
H571-08006	1.8	45	0.62	12	26	80	2.8	4	520
H571-08025	1.8	45	2.5	1.0	2.2	80	2.8	4	520
H571-11006	1.8	51	0.62	13	28	110	2.8	4	520
H571-11025A	1.8	51	2.5	1.2	3.2	110	2.8	4	520
H571-06208	1.8	51	0.8	6.8	9.2	62	3.0	6	590
H571-09015	1.8	56	1.5	3.2	5.5	90	3.5	6	590
H571-11025B	1.8	56	2.5	1.3	4.2	110	3.5	4	680
H571-11030	1.8	56	3.0	0.8	2.4	110	3.5	4	680
H571-11042	1.8	56	4.2	0.4	1.2	110	3.5	4	680
H571-15010	1.8	64	1.0	7.5	20	150	5.0	4	850
H571-15025	1.8	64	2.5	1.5	4.5	150	5.0	4	850
H571-15030	1.8	64	3.0	0.8	2.3	150	5.0	4	850
H571-15042	1.8	64	4.2	0.55	1.2	150	5.0	4	850
H571-14015	1.8	76	1.5	4.5	7.8	140	6.0	6	1050
H571-18025	1.8	76	2.5	1.8	6.5	180	6.0	4	1050
H571-18030	1.8	76	3.0	1.0	3.5	180	6.0	4	1050
H571-18042	1.8	76	4.2	0.6	1.8	180	6.0	4	1050
H571-25030	1.8	100	3.0	1.4	5.5	250	10	4	1250
H571-25042	1.8	100	4.2	0.8	3.0	250	10	4	1250
H571-28030	1.8	112	3.0	1.6	6.8	280	12	4	1400
H571-28042	1.8	112	4.2	0.9	3.8	280	12	4	1400
