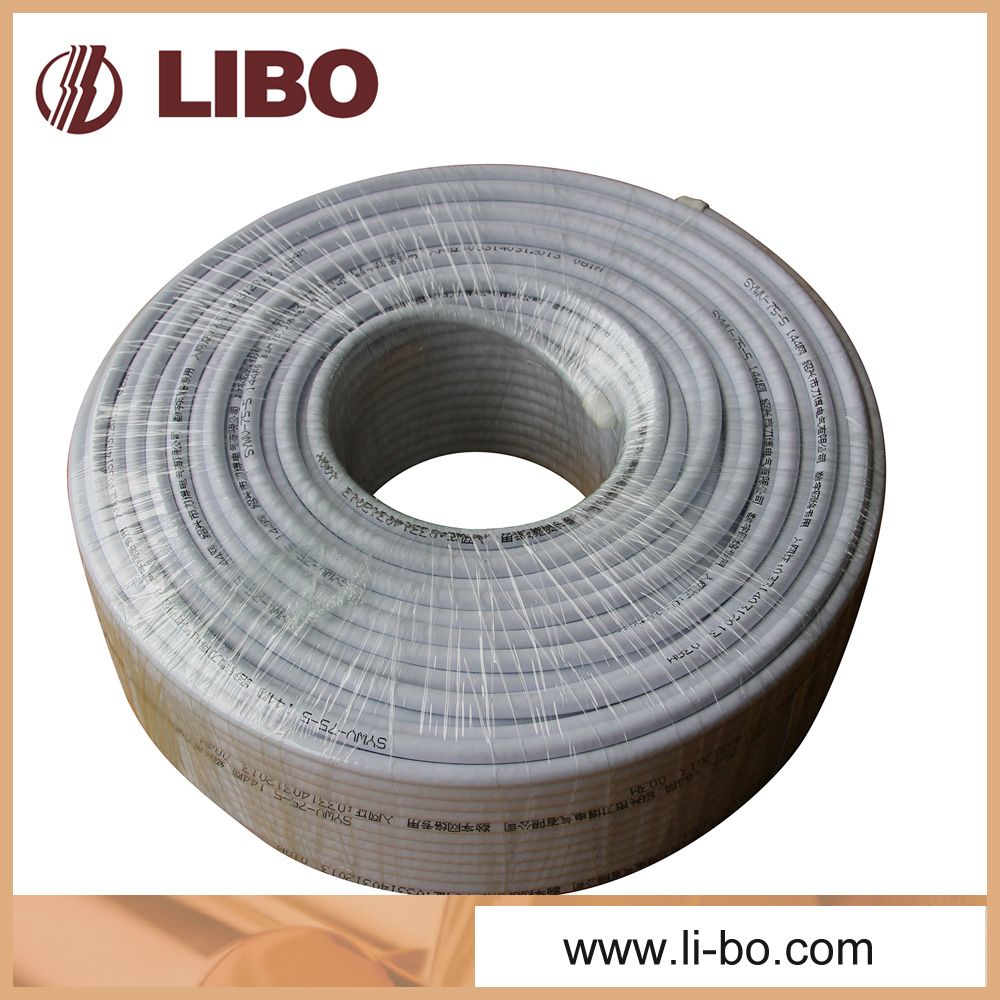

Coaxial Cable for 75ohm RG6 with RoHS Standard

Name: Coaxial Cable for 75ohm RG6 with RoHS Standard
Brand: all-electronics-online.com
SKU: 776915925
Availability: InStock
Rating: 4.8 (102 reviews)

Price:	US $ 0.01/Meter
Trade Terms:	FOB,CFR,CIF
Min Order:	10000/Meter
Pay Type:	L/C,T/T,D/P

Contact Supplier

Showroom Product Company Profile

Prod Model:	RG6
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Quad-Shield:	Flame Retardant RG6 Coaxial Cable
18AWG CCS:	Bonded Aluminum Foil
Application:	RF Cable
Conductor Material:	Copper
Cover Material:	PVC
Certification:	UL
Type:	RG6
Model:	RG6
Brand:	Libo or OEM

Product Description

75 ohm RG6 Video Cable with ROSH Standard RG6 Dual Coaxial Cable for CATV
? RG6 ROSH Standard Cable
? 18AWG CCS
? Polyethylene Insulation
? Bonded aluminum PET foil
? 60% braiding coverage
? Standard shield
? PVC jacket

Applications:
RG6 cable is used as drop cable for CATV (community antenna television) and MATV (master antenna television) distribution.

Description & Specifications:

construction	Testing item			Unit	Standard
	Inner conductor			mm	1.02±0.01
	Dielectric				4.57±0.08
	1st shield, Tape	Material		-	Bonded aluminum foil
		Thickness		mm	0.042±0.008
		Width		mm	17±0.3
	2nd shield, Braid	Material		-	Alloy wire
		Diameter		mm	0.152±0.01
		Ends		EA	5
		Carrier		EA	16
		Pitch		mm	42
Electrical properties		Coverage		%	65%
	Outer jacket	PVC or PE		mm	6.8+6.8+web
	Withstanding voltage			-	AC 1000V/min
	Capacitance			nF/KM	53.2 Nominal
	Characteristic impedance(10MZ)			Ω	75±3
	VSWR(5.75-864MHZ)				1.2dB
	Attenuation 20ºC(max) 10MHz(10%) 50-1000MHz(5%)		10MHZ	dB/100m	2.80
			50MHZ		4.96
			150MHZ		8.11
			250MHZ		10.39
			350MHZ		12.30
			450MHZ		14.39
			750MHZ		19.43
			864MHZ		20.48
Physical properties	Inner conductor tensile strength			Kgf/mm2	50.0
	Inner conductor elongation			%	1.0 (Min)

Competitive Advantage:
RG6 cable has outstanding anti-interference effectiveness and excellent transmission reliabilities.
RG6 cable is of low cost, and it is easy to install as well.
Libo cable was established in 1994,it is subsidiary of Libo group which is one of the 500 largest private enterprises in China.
Libo cable has a stable workforce and engineering team, normal lead-time of 40'FCL is about 7 days.
Libo cable is equipped with a Provincial-level Research and Development Center, we offer OEM and DEM services.

Shaoxing is a place propitious for giving birth to great men and a place endowed with the fine spirits of the universe. The towering Jishan Mountain and flowing Jianshui River nurture the prosperous civilization of this famous historic and cultural city.

About 2500 years ago, Pingshui at the foot of Kuaijishan Mountain had been the manufacturing base of bronze weapons for the ancient kingdom of Yue. Stories of Rizhu Mountain that got the name from the sword-casting in one day by Ou Yezi, as well as the Sanzao (Three Furnances) of Shangzao, Zhongzao and Xiazao, have been widely told by generations. Now, relying on the innovative technology and ideas and top-class quality, Libo Group of Shaoxing is leading the new trend of copper and aluminum processing.

Libo Group is a nationally recognized Hi-Tech Enterprise specializing in copper and aluminum processing, electronic wire and cable, machinery manufacturing, new energy materials and real estate development, including 12 subsidiaries and 2000 employees. It is one of the 500 largest private enterprises in China and has been awarded Advanced Labor and Social Security Enterprise and a Key and Major Enterprise in Shaoxing. "Libo" has been the Well-known Trademark of China.

Libo Cable is subsidiary of Libo Group, it is specialized in the manufacturing of physical-foamed RF coaxial cable, seamless aluminum tube trunk cable, leaky feeder cable, solar PV ribbon and cable. With the advanced physical high-foam production lines and continuous-extruding seamless aluminum tube production lines, it now possesses the yearly capacity of 60, 000 km of coaxial cables, with the world-class quality. Products have been certified by UL and CE and exported to European and American market. The solar PV ribbon and cable makes use of the oxygen-free copper strip as the blank and it possesses the excellent electric conductivity and favorable solder ability and flexibility, which has been favored by the majority of users.
