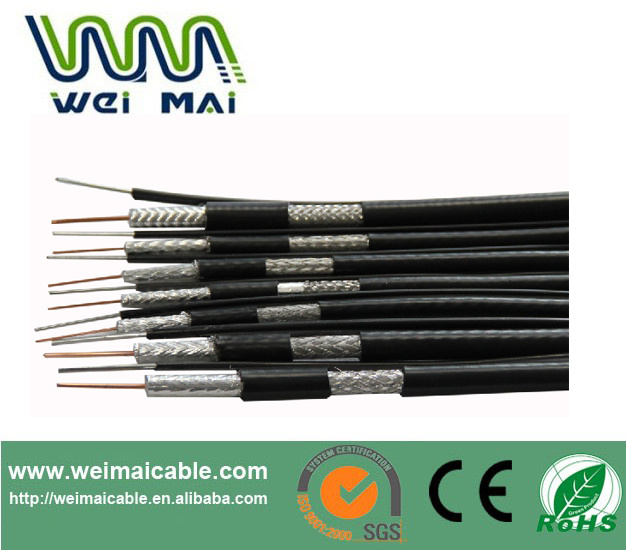

Coaxial Cable for CATV 7D-Fb (WMO067)

Name: Coaxial Cable for CATV 7D-Fb (WMO067)
Brand: all-electronics-online.com
SKU: 727298385
Availability: InStock
Rating: 4.4 (74 reviews)

Price:	US $ 1/Meter
Trade Terms:	FOB,CFR,CIF
Min Order:	10000/Meter
Pay Type:	L/C,T/T,D/P,Paypal,Money Gram

Contact Supplier

Showroom Product Company Profile

Prod Model:	Coaxial Cable
Cable Manufacturer Inner Conductor:	Cu/CCA/CCS
Cable Manufacturer Cable Insulation:	Fpe
Cable Manufacturer Out Conductor:	Braiding
Cable Manufacturer Jacket:	PVC/PE
Echo Loss:	VHF: 20 dB/ UHF 18 dB
Certification:	VDE
Application:	Submarine Cable
Conductor Material:	BC/CCS/CCA/TC/CU/CCAG
Cover Material:	PVC
Type:	Coaxial Cable

Product Description

Specifications
7D-FB Cable Manufacturer in China
1. Free Sample
2. CE, RoHS
3. Fast delivery
4. Great service

Packaging & Delivery
Packaging Detail: 1) Inner packing: 100m in PE film, 100m in plastic/wood spool, 305m/wood drum, 500m/wood drum 2) Outer packing: Carton, wooden drum 3) Other packing available according to clients requests
Delivery Detail: Within 15 days

7D-FB Coaxial Cable
1) Construction

Center Conductor:

2.60mm Solid Copper

Dielectric:

7.30 + 0.02mm Foam PE

Shield:

Bonded Al Foil

Braid Coverage:

85%TC

Jacket:

8.20 + 0.10mm PVC

Jacket Thickness:

0.80mm

2) Characteristics

Inner Conductor Resistance:	1.83 ohm/km
Dielectric Withstand Voltage:	1000 ACV/min
Impedance:	50 + 2Ohm
Capacitance:	85 + 3nF/Ft (Nom.)
Echo Loss:	VHF: 20 dB/ UHF 18 dB

3) Attenuation

Attenuation	[@68 o F. (20 o C.)]
Frequency (MHz)	Nom.(dB/100 ft.)
150	5.30
280	7.30
350	8.30
400	9.10
800	13.00
900	14.30
1200	17.00
1500	19.70
1900	22.90

Linan Weimai Electron Co., Ltd is a manufacturer with more than 6 years

Experience in the communications cable industry in China. With an experien-

Ced and professional team, we have exported our products to many countries

And regions all over the world, especially European countries, North Americ-

An, Asia and the Middle East. We can professionally manufacture and supply

Coaxial cables, LAN cables, alarm cables, telephone cables Speaker Cable,

Audio RCA Cable, Scart cable, Flexible RVV Cable and the cable assembly

etc, and many are approved by CE, RoHS. Current production capacity is

About 180, 000, 000 meters per year. Our factory is located in Lin an city, enjoying great convenience toShanghai and Ningbo Sea Port. We have advanced testing machines, ToTest Attenuation, Return Loss Ect. We carefully test cables under ISO 9001-2000 quality management before shipping to the customers. We welcome

Customers, business associations and friends from all parts of the word to

Contact us and seek cooperation for mutual benefits
