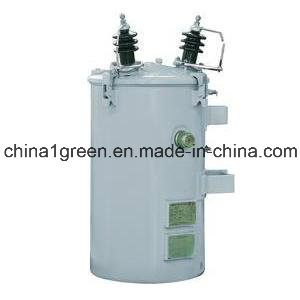

Complete Self-Protected (CSP) Single-Phase Pole Mounted Distribution Transformer

Name: Complete Self-Protected (CSP) Single-Phase Pole Mounted Distribution Transformer
Brand: all-electronics-online.com
SKU: 732807905
Availability: InStock
Rating: 4.9 (141 reviews)

Price:	US $ 2500/Piece
Trade Terms:	FOB,CIF,EXW
Min Order:	1/Piece
Pay Type:	L/C,T/T,Paypal,Western Union

Contact Supplier

Showroom Product Company Profile

Prod Model:	DH15-M or D11-M
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Type:	Csp
Rated Voltage:	10kv/(0.22~0.24)
Tapping Range:	± 5%; ± 2*2.5%
Frequency:	50Hz
Vector Group:	II0 or II6
Operation Environmen:	Outdoor
Application:	Power
Phase:	Single
Winding Type:	Auto-transformer
Coil:	Toroidal

Product Description

Complete Self-Protected (CSP) Single-Phase Pole Mounted Distribution Transformer

In order to meet the various demands of customers, the Company has design D11-M and DH15-M two series single phase fully-sealed transformer. D11-M transformer adopts laminated core and is characterized by low loss, low noise level and others; DH15-M transformer adopts amorphous alloy core which further reduces the no-load losses of the transformer. Table below specifies technical parameters and dimensions of the two series of transformers.

Table below specifies technical parameters and dimensions of the two series of transformers.

No	Protection type	High voltage load switch	High voltage fuse	Surge arrestor	Low voltage over-current circuit breaker
1	CPS	Yes	Yes	Yes	Yes
2	SP	Yes	Yes	Yes	No
3	CP	Yes	Yes	No	Yes
4	Ordinary type	No	No	No	No

Model	Loss(W)		No-load current(%)	Short-circuit impedance(%)	G.W	Dimension of ordinary type(mm)	Dimension of CSP,SP CP types
Model	No-load loss	Load loss	No-load current(%)	Short-circuit impedance(%)	G.W	Dimension of ordinary type(mm)	Dimension of CSP,SP CP types
DH15-M-30/10	30	560	1.6	3.5	315	5206051100	5206051355
DH15-M-50/10	40	855	1.2		405	5606501130	5606501380
DH15-M-63/10	50	1020	1.0		480	6806501180	6806501430
DH15-M-80/10	60	1260	0.9		560	7607401235	7607401485
DH15-M-100/10	70	1435	0.8		615	8057501235	8057501515
DH11-M-30/10	80	560	2.8		285	5206051050	5206051300
DH11-M-50/10	120	855	2.3		365	5606501100	5606501350
DH11-M-63/10	145	1020	2.1		435	6806501130	6806501380
DH11-M-80/10	160	1260	2.0		500	7607401180	7607401430
DH11-M-100/10	190	1485	1.9		550	8057501210	8057501460
DH15-M-30/20	35	620	1.6		350	5606051200	5606051450
DH15-M-50/20	45	950	1.2		445	6806801260	6806801510
DH15-M-63/20	60	1135	1.0		530	7607601300	7607601550
DH15-M-80/20	70	1400	0.9		620	8057801350	8057801600
DH15-M-100/20	80	1650	0.8		680	8558001380	8558001630
DH11-M-30/20	90	515	1.7		325	5606051155	5606051400
DH11-M-50/20	120	690	1.5		420	6806801210	6806801460
DH11-M-63/20	145	830	1.4		500	7607601240	7607601490
DH11-M-80/20	160	975	1.4		580	8057801300	8057801550
DH11-M-100/20	190	1155	1.3		635	8558001330	8558001580

Established in 1996, predecessor Xi' An TopRank Electric Industry Co., Ltd. Located in known to the world civilization, the ancient capital of Xi' An, Shanxi Province, China. Mainly commitment consulting, purchasing and export business to renewable energy products, energy-saving products, Power Generation, Transmission & Distribution related Projects and equipment.

Since its inception, uphold the customers want, integrity management, holding with customers solidarity, cooperation, open up, operation and development purposes, has become the core supplier to Malaysia Toshiba Transmission & Distribution Asia Systems Co., Ltd. In China.

With the progress of globalization, we continue to integrate quality factory resources dedicated to beauty supply platform material at higher prices for domestic and foreign demand. If you are overseas companies, potential product sourcing in China, we will be your best choice; , we will be your best choice if you have a product, hoping to find the right agency.

We look forward to working with you!
