Composite Insulator

Name: Composite Insulator
Brand: all-electronics-online.com
SKU: 673706502
Availability: InStock
Rating: 4.6 (35 reviews)

Price:	Negotiable
Trade Terms:	FOB
Min Order:	1/Piece
Pay Type:	L/C,T/T

Contact Supplier

Showroom Product Company Profile

Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Model Number:	Fxbw
Material:	Silicone
Type:	Solid
Application:	Insulators

Product Description

Composite insulator

Rated volt.: 25kv

Ratedmechanical load: 70kN

Min. Nominal creepage distance: 720mm

Insulating distance: 2

Composite polymer suspension insulator 10kv, 11kv, 15kv, 22kv, 24kv, 25kv, 33kv, 36kv, 66kv, 69kv, 110kv, 132kv, 150kv, 220kv, 230kv, 330kv, 400kv, 500kv, 750kv

1) APPLICATION

Our aim is to provide the best quality with reasonable prices and satisfy service.

2) SPECIFICATION

1. We can supply all kind of omposite insulator, from 10KV to 1000KV.

Material: Silicon rubber

According to requirments of customer.

Manufacture and test standard: IEC61109, ANSI

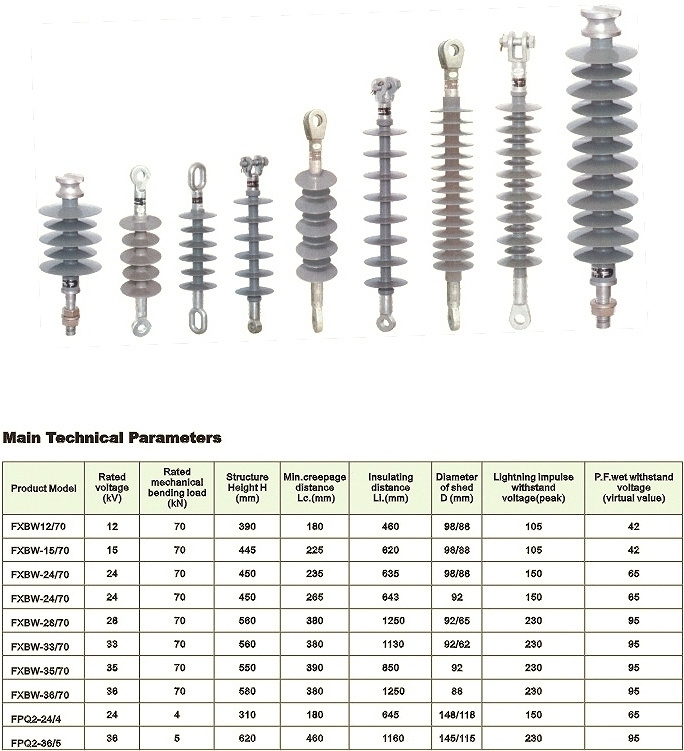

Type	Rated viltage(kv)	Rated mechanical bending load(kn)	Structure Height H(mm)	Insul ating distance Li(mm)	Min creepage distance Lc(mm)	Diameter of shed D(mm)	Lightning impulse withstand voltage(peak)	PF wet withstand voltage(virtual value)(kv)
FXBW-12/70	12	70	390	180	460	98/88	105	42
FXBW-15/70	15	70	445	225	620	98/88	105	42
FXBW-24/70	24	70	450	235	635	148/118	150	42
FXB-28/70	28	70	560	380	1250	88	230	95
FXBW-33/70	33	70	560	380	1130	92/62	230	95
FXB-36/70	36	70	580	380	1250	88	230	95
FXBW-36/70	36	70	650	450	1320	148/118	230	95

Shanghai Powery Industries Co., Ltd. Located in Shanghai China, our factory located in the beautiful seaside city--Qingdao, covering more than 10000sqm, with the workshop covering an area of 5000sqm, is a advanced management company, which is about 15 minutes' drive away from the Qingdao airport and about half-hour's drive away from the port.

We are engaged in the design, manufacture and marketing services of rigging, vessel and container fittings, electric power fittings, and high and low voltage transmission and distribution line fittings. We have been equipped all kinds of forging machines, casting machines, punching machines, lathes and drilling machines. "Quality and Service" is our top belief. Our products have been exported to Asia, America and Africa for many years. Most of our friends and customers are satisfied with our quality and services, on the basis of which, long-term friendships have been established.

Being ISO9001: 2008 certified and with permits for all products, we produce all products according to relative International Standards and customers' requirements.

You and your esteemed company are welcomed to visit us. Our best services, famous Qingdao beach sightseeing and delicious seafood are waiting for your presence.
