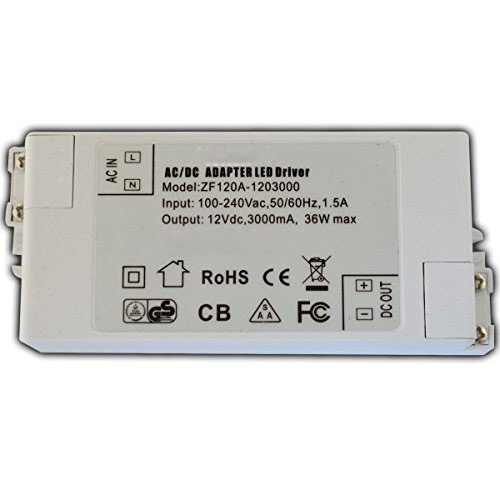

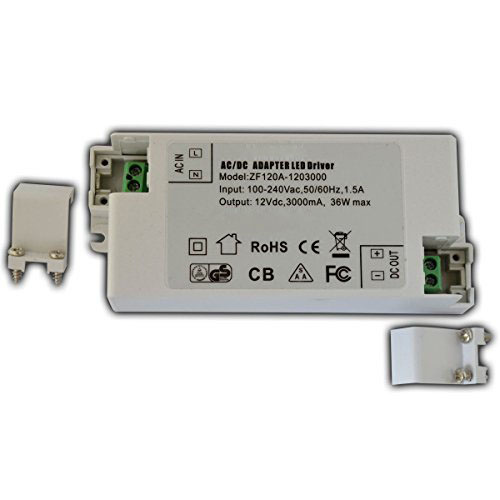

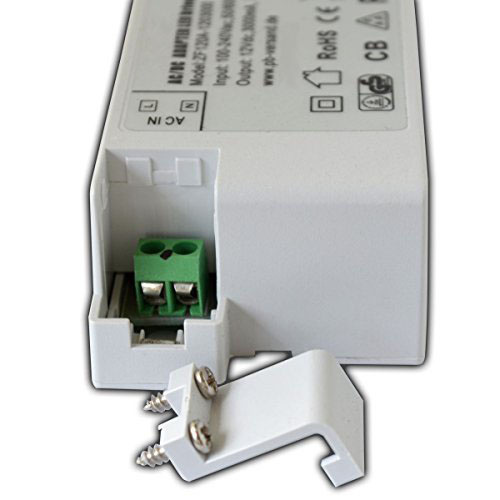

Constant Voltage 12V 36W LED Driver with CE

Name: Constant Voltage 12V 36W LED Driver with CE
Brand: all-electronics-online.com
SKU: 766419285
Availability: InStock
Rating: 4.8 (62 reviews)

Price:	US $ 4.9-6.35/Piece
Trade Terms:	FOB
Min Order:	50/Piece
Pay Type:	T/T,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	T36
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Dimension:	120 X 50 X 32mm
IP Degree:	IP67
Dimmable:	No
Protection:	Short Circuit
Workspace:	1W-36W
Output Voltage:	12V
Usage:	Light
Output Type:	Single
Driving Method:	LED Constant Current
Circuit Structure:	Triac
Power Supply Mode:	Customed
Modulation System:	Triac
In-Out:	Constant Voltage
Brand:	No Brand

Product Description

75w 12v plastic cover waterproof led power supply

Features:
1.Workspace: Up to 24 watts
2.Not dimmable
3.Dimensions: (length / width / height): 120 x 50 x 32mm
4.High quality, 2years warranty

Specifications:

Input/Output Specifications
Input Voltage	AC 100-240,50/60Hz
Range Voltage	AC 90-264, 47/63Hz
Output Power	36W
Output Voltage	12V
Over Voltage Protection	120%min
Over Current Protection	120%min
Short-cut Protection	[Auto recover]
Load Regulation	±5%
Out current	3000mA
Ta Temperature	45ºC
Tc Temperature	85ºC
Operating Relative Humidity	5%~95%RH
Withstanding Voltage	AC 3000V(Min),5mA(Max)
Insulation Resistance	DC 500V 100M Ω(Min)
MTBF	>50,000Hrs
Size	*1054832mm*

Pictures:
