Yongjiu Electric Power Fitting Co., Ltd. >> Copper Lug with Inspect Hole Spy Hole Copper Connectng Terminals

Copper Lug with Inspect Hole Spy Hole Copper Connectng Terminals

Copper Lug with Inspect Hole Spy Hole Copper Connectng Terminals
Price: US $ 0.025-10/Piece
Min Order: 500/Piece
Pay Type: L/C,T/T,Western Union,Money Gram
Prod Model: SC
Yojiu Profession: 28 Years
Crimp Terminal Surface: Original or Tin Plated
Crimp Terminal Material: Copper
Usage: Wire Connector, Power
Others: OEM Service Offered
Product Name: Sc Lug
Name: Copper Cable Lug
Special: Good Quality
Certificate: ISO9001
Samples: Available
Type: Single Hole Terminals
Material: Copper
Application: Conduct Electricity
Character: Other
Production Process: Friction Welding
Interface Type: Other
Certification: Other
Brand: Yojiu or OEM

Product Description



Product Description

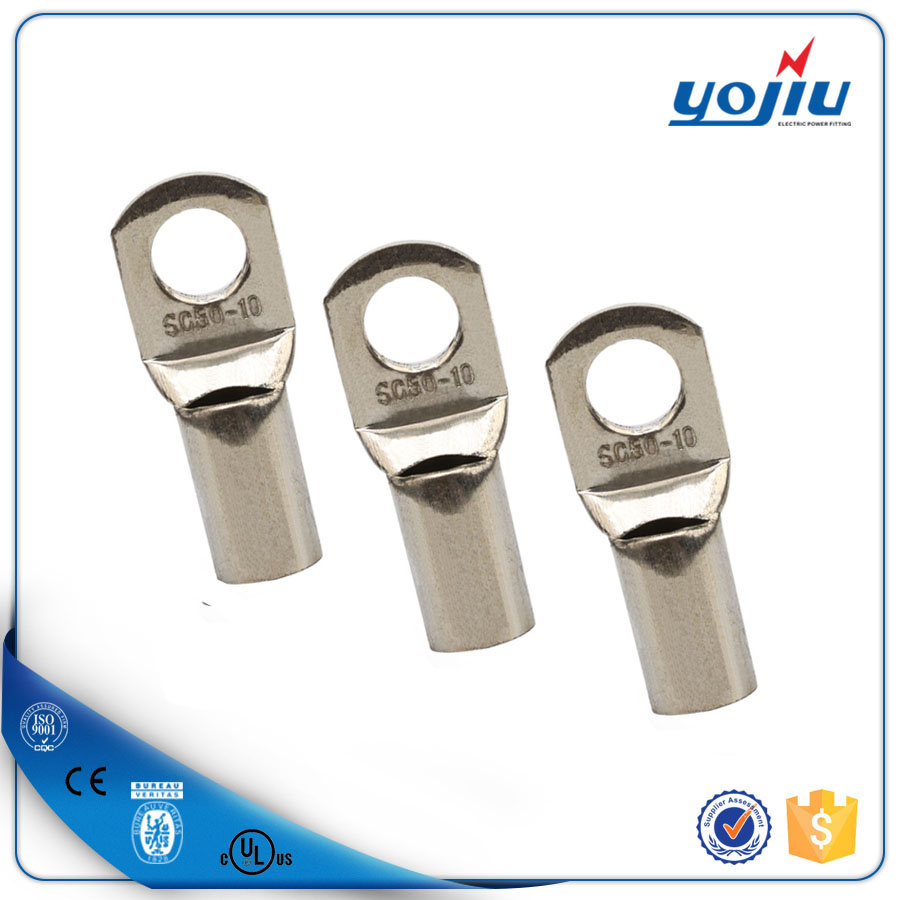

Tinned SC(JGK) Copper Cable Lug

Tinned SC(JGK) Copper Cable Lug are suitable for the connection of copper conductors(section 1.5-1000mm2) in power cable with electronic equiment they are made of with higher 99.9% pure copper tube T2 and coated with tin.working temperature-55oC-150oC.

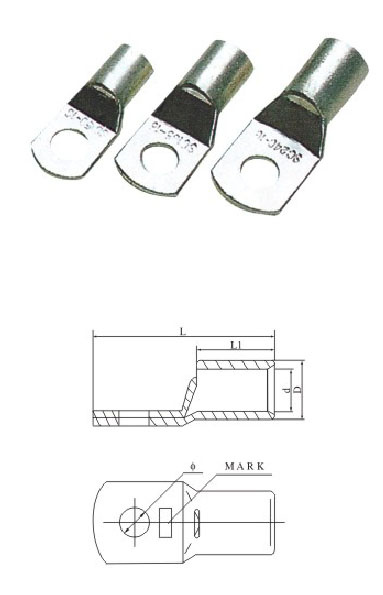

Dimension

Item No.Applicable BoltsDimensions(mm)Note
DdL2L1φ
SC2.5m4,m642.42375.5(1)Can be produced according to customer's drawings.
SC4 4.83.12495.5
SC6m5,m6,m8,m10,m125.53.82795.5
SC107530116.5
SC16m6,m8,m108630.5128.5
SC25m6,m8, m10,m129735.5158.5
SC3511944188.5
SC5012.510472010.5
SC70m8,m10,m12,m161512532310.5
SC951714572412.5
SC120m10,m12,m161916642812.5
SC1502117743014.5
SC185m10,m12,m16,m2023.519803414.5
SC2402621934017
SC300m16,m2029231024617
SC400m16,m2032261074617
SC500m16,m2036291254817
SC630m16,m2042341556017








We are the biggest manufacturer and exporter of electric power fitting and cable accessory in China. We have more than 20 years experience and we are ISO9001/2000 certified enterprise. Our campany located in Liushe Town, Wenzhou. Liushi is the centr of eelectric appliance in China. It isabout 15Kmfar away from Wenzhou Airport and Railway Station and 104State level highway across through. Therefore the transportation is very convenient.

The total area of our company is over 1500m2. We have more than300 workers include 38 senior and intermcdiate special technical personnel and administraive personnel. We havemore than 200 series and 3000 vareties products. Include cable hardware, circuity hardware, substation hardware, power station hardware, cabletie, heat or cold shrinkable material and other accessory.

Our product has been exported to the Southeast Asia, Africa, Middle East, Europe and America more than 40 countries. In our trade with merchants of various countries, we always adhere to theprinciple of equality and mutual benefit. Welcomecustomers in this line to come over for negotia-tion and cooperation and make contribution to development of electric power.
