Copper Tape Screened Steel Tape Armoured Control Cable

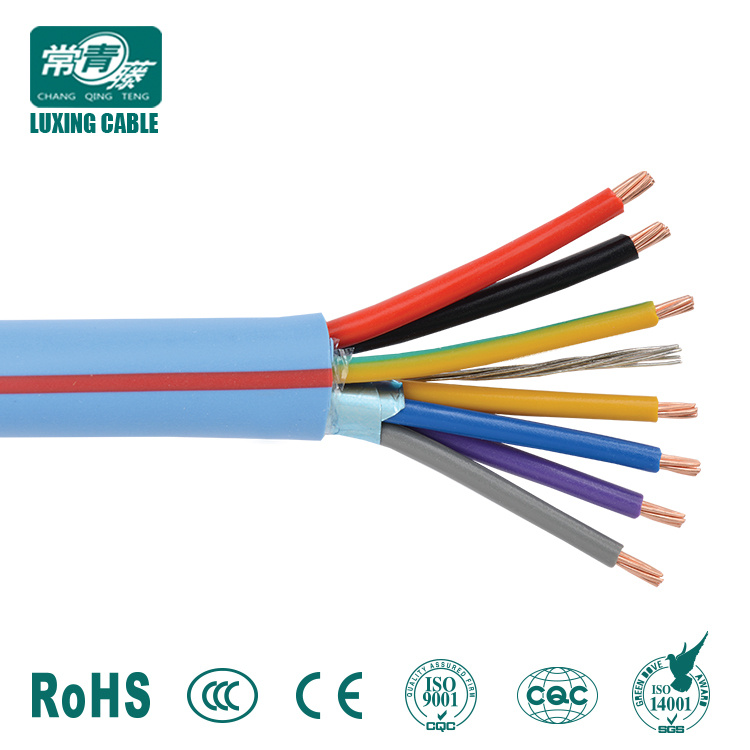

Name: Copper Tape Screened Steel Tape Armoured Control Cable
Brand: all-electronics-online.com
SKU: 691262871
Availability: InStock
Rating: 4.8 (91 reviews)

Price:	US $ 0.1-30/Meter
Min Order:	100/Meter
Pay Type:	L/C,T/T,D/P,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	copper tape screened control cable
Product Name:	Copper Tape Screened Control Cable
Rated Voltage:	450/750 V
Conductor:	Copper
Insulation:	XLPE/PVC
Sheath:	PVC/PE
Core Number:	1 2 3 4 5 6 7 8 9 10
Color Color:	Red , Yellow , Blue ,Green or as Your Requirement
Origine:	Shandong , China
Packaging:	Wooden Drum
Shipping:	3-10 Working Days
Application:	Power Station
Voltage:	Low and Medium Voltage Cable
Current:	DC & AC
Insulation Material:	XLPE
Certification:	VDE
Model:	XLPE Power Cable
Brand:	Chan Qing Teng

Product Description

ITEM NAME : copper tape screened steel tape armoured control cable

Brief Introduction

Product Name: Copper conductor PVC insulated steel tape armoured control cable

Constructions

Conductor: Class 5 copper conductor

Insulation: PVC insulation

Armour: Steel tape

Outer Sheath: PVC sheath

Note: Insulation color as per standards or at request

Applications

Used as power and connecting cables in mechanical engineering for tooling machinery, control unit,

production lines, transportation equipment, conveyor and assembly lines as well as in plant construction

under the circumstance that the rated voltage is up to 450/750V AC

Standards

China: GB/T 12706.2-2008

Other standards such as BS,DIN and ICEA upon request

Technical data

The long term woring temperature allowed for the power cable conductor is 70 ºC

(2) the enviromental temperature in cable-laying is not less than 0 ºC

(3) the conductor short circuit Max.temperature is not over 160 ºC ,PE Insulation is not over 130 ºC .
the Max.continuous working time is not olver 5s

Certificates

CE, ROHS, CCC, KEMA and more others at request

Types and Specifications

Type	Name	Section Area(mm2)	No. of Core	Application Site
KVV	Copper Conductor,PVC Insulated and Sheathed Control Cable	0.75 1.0 1.5 2.5	2-16	Permanent installation indoors,in cable ditches or pipes
		4 6	2-14
		10	2-10
KVVP	Copper Conductor,PVC Insulated and Sheathed,Braiding Shielded Control Cable	0.75 1.0 1.5 2.5	2-61	Permanent installation indoors,in cable ditches or pipes where shielding is required
		4 6	2-14
		10	2-10
KVVP2	Copper Conductor,PVC Insulated and Sheathed,Copper-tape Screened Control Cable	0.75 1.0 1.5 2.5	4-10	Permanent installation indoors,in cable ditches or pipes where shielding is required
		4 6	7-61
		10	4-10
KVV22	Copper Conductor,PVC Insulated and Sheathed,Steel tape Armored Control Cable	0.75 1.0 1.5 2.5	7-61	Permanent installation indoors,in cable ditches,Be able to withstand stronger external mechanical force
		4 6	4-14
		10	4-14
KVVR	Copper Conductor,PVC Insulated and Sheathed,Flexible Control Cable	0.5-2.5	4-61	Installation indoors where flexibility and movability are required
KVVRP	Copper Conductor,PVC Insulated and Sheathed,Braiding shielded Flexible Control Cable	0.5 0.75 1.0	4-61	Installation indoors where flexibility shielding and movability are required
KVVRP		1.5 2.5	4-48
KYJV	Copper Conductor,XLPE Insulated and PVC Sheathed Control Cable	0.75 1.0 1.5 2.5	2-16	Permanent installation indoors,in cable ditches or pipes
		4 6	2-14
		10	2-10
KYJVP	Copper Conductor,XLPE Insulated,Braiding Shielded,PVC Sheathed Control Cable	0.75 1.0 1.5 2.5	2-61	Permanent installation indoors,in cable ditches or pipes where shielding is required
		4 6	2-14
		10	2-10
KYJV22	Copper Conductor,XLPE Insulated,Steel-tape Armoured,PVC Sheathed Control Cable	0.75 1.0 1.5 2.5	7-61	Permanent installation indoors,in cable ditches,pipes or underground Be cable to with stand stronger external mechanical force
		4 6	4-14
		10	4-10
KYJVP2	Copper Conductor,XLPE Insulated,Copper tape Screened,PVC Sheathed Control Cable	0.75 1.0 1.5 2.5	7-61	Permanent installation indoors,in cable ditches or pipes where shielding is required
		4 6	4-14
		10	4-10
KYJVR	Copper Conductor,XLPE Insulated,PVC Sheathed Flexible Control Cable	0.5-2.5	4-61	Installation indoors where flexibility and movability are required
KYJVRP	Copper Conductor,XLPE Insulated,Braiding Shielded,PVC Sheathed Flexible Control Cable	0.5 0.75 1.0	4-61	Installation indoors where flexibility and movability are required

Luxing Factory : our production base

Video Show

Company introduction: https://youtu.be/j-bfOk2gCFY

Copper wire stranded: https://youtu.be/QT-b7M9YkLw

Copper wire braided: https://youtu.be/3-fP1OOuPA4

Cabling machine: https://youtu.be/h6kE4ofeiWA

Armoured: https://youtu.be/Clu5e7LW_l8

Extruded pvc sheathed,insulation: https://youtu.be/3c93OxsKmBw

Luxing Cable Mainly Produce

300/500V 450/750V electrical wire	AAC conductor
600/1000V PVC insulated cable	AAAC conductor
600/1000V XLPE insulated cable	ACSR conductor
1.8/3KV to 26/35KV power cable	OPGW
Armored underground cable	ABC cable
Control cable and instrumentation cables	Rubber cable

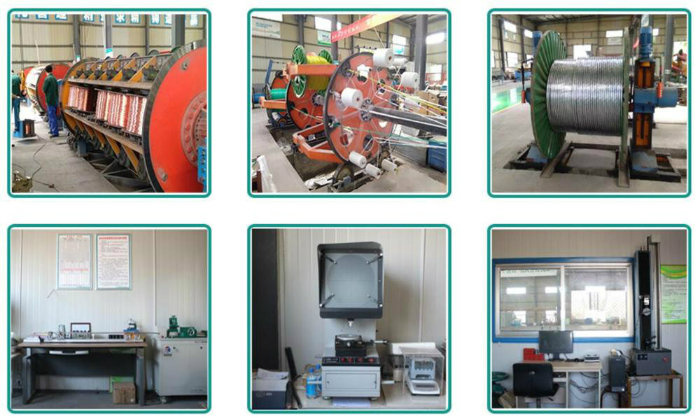

Strict Quality Test

Packaging & Shipping

Why choose us

1.18 years manufacturing experience

2.Professional international trade team

3.Delivery on time

4.Factory low price and high quality based on advanced technology and high work efficiency

Contact us

1) About Luxing Cable Factory:

-Shandong New Luxing Cable Co., Ltd established in the year of 1999.

-The headquarter is located in Jinan City, the capital of Shandong province, China.

-Registered capital of USD16.5 million, Legal representative Wang Xiuzhen.

-Luxing Cable Factory is located in Linyi Economic Development ZoneCovering an area of more than 60 acres.

-Shandong New Luxing Cable Co., Ltd has more than 150 employees, which college degree more than 50 people.

2)Why Choose Luxing Cable Factory?

-Luxing cable, the designated supplier of China's national grid construction.

-We provid high-quality cables for our clients for more than 18 years.

-The professional, safe and reliable of Luxing factory gained great trust and praise from our customers.

-Serve you any time.

3)The Product of Luxing Cable Factory

-300/500V 450/750V electrical wire

-600/1000V PVC insulated cable

-600/1000V XLPE insulated cable

-1.8/3KV to 26/35KV power cable

-Armored underground cable

-Control cable and instrumentation cables

-ABC cable

-AAC conductor

-AAAC conductor

-ACSR conductor

-OPGW

-Rubber cable

4)Product application

-Used for open air installation, for direct burrial underground, in water, in cable ducts, power stations, for industry and distribution boards and so on.

-Power transmission and distribution project bids we can work, cable retail and wholesale, regional agent we can cooperate.

5)Production Market

-Supply power cables & electrical wire to

South America(Brazil...),

East Asia(Korea...),

Africa(Uganda, South Africa, Zimbabwe...),

Southeast Asia(Myanmar, Thailand, Indonesia, Philippines, Malaysia, Cambodia...),

Europe(Czech Republic...) to global market.

-Had fixed partnership with SGCC&STATE GRID CORPORATION OF China (China largest power enterprise) and many other our country State-owned big enterprise.

6)Our service

-We guarantee that we will comply with the requirements of warranty period specified in the contract, that the Goods supplied under the purchase order For Procurement of self-carrying distribution network's cable and wire.

-We will be manufactured under this specification and that the Goods will be new, unused, of the most recent or current models. Once we are selected, we will supply the Goods strictly according to the requirements of the Contract.

-The warranty shall remain valid for twelve (12) months after the Goods, or any portion thereof as the case maybe, have been delivered to and accepted at the final destination indicated in the SCC, or for eighteen (18) months after the date of shipment from the port or place of loading in the country of origin, whichever period concludes earlier.

-During the warranty period purchaser may proclaim directly to the manufacturer in the written form or by the agent if there is any problem in Goods quality. The manufacturer will do the repair or replacement in reasonable time, and will bear all the expenses relating to this.
