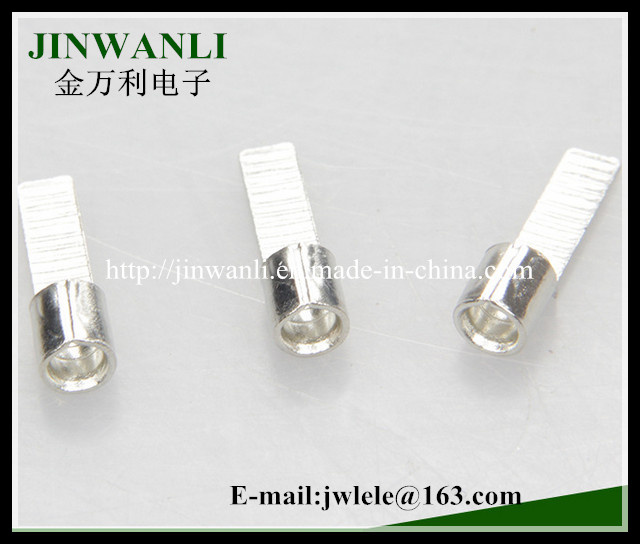

Copper Terminal Dbn Chip-Shaped Naked Terminal

Name: Copper Terminal Dbn Chip-Shaped Naked Terminal
Brand: all-electronics-online.com
SKU: 767945235
Availability: InStock
Rating: 5 (150 reviews)

Price:	US $ 0.01/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	10000/Piece
Pay Type:	L/C,T/T,Paypal,Western Union

Contact Supplier

Showroom Product Company Profile

Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Material:	Copper
Application:	Transmission of Electrical Signals
Shape:	Dbn
Brand:	Jwl

Product Description

Specifications
terminal wire connector
1.Made by high purity copper
2.Tin plating:Corrosion Resistance
3.Certificate:ISO9001 SGS CE CQC    wire connector
4.Easy to connect with electrical wire and strengthen its reliability    electrical terminals
5.Type:DBN crimp terminal
6.Thickness:0.7mm 0.8mm 1.0mm    electrical connectors and terminals

Non-insulated Blade Terminals
Cable size:0.5~1.5mm2(A.W.G.22~16) Max current:Imax=19A Material:Purple copper
Thickness:0.75mm
ITEM NO	Dimension(mm)
ITEM NO	B	L	F	E	Dφ	dφ
DBN 1.25-10	2.3	14.8	10	4.8	3.4	1.7
DBN 1.25-14	2.3	18.8	14
DBN 1.25-18	2.3	22.8	18

Cable size:1.5~2.5mm2(A.W.G.16~14) Max current:Imax=27A Material:Purple copper
Thickness:0.8mm
ITEM NO.	Dimension(mm)
ITEM NO.	B	L	F	E	Dφ	dφ
DBN 2-10	2.8	13.8	9	4.8	4.1	2.3
DBN 2-14	2.4	18.9	14.1
DBN 2-18	2.2	22.8	18

Cable size:4~6mm2(A.W.G.12~10) Max current:Imax=48A Material:Purple copper
Thickness:1.0mm
ITEM NO	Dimension(mm)
ITEM NO	B	L	F	E	Dφ	dφ
DBN 5.5-10	2.8	14.8	10	6	5.6	3.4
DBN 5.5-14	4.5	21	14
DBN 5.5-18	4.5	23	18
DBN 8-14	5	22.5	14	8.5	7.2	4.5
DBN 14-16	6	30.6	16	14	9	6.5

A.W.G 16-14 non-insulated blade terminal lugs DBN Non-insulated blade terminals spade terminals electrical blade terminal

Packaging & Delivery terminal types plug automotive

Packaging Details:	Inner packing:100pcs/bag or as customer's requirement. Outer packing:export carton with size is 37'31'34cm or 37'37'18cm,it depends on the goods.
Delivery Detail:	Within 7-10 days

Our company is a key electrical accessories manufacturer of terminal blocks and other cable accessories in China.

Our company is located in Yueqing, Wenzhou City, Zhejiang Province. It is a manufacturing and export company, specialized in producing components for kinds of lights, automobile and so on. They have gone through many authentications such as CQC, CE, RoHS. The main products are terminal blocks and wires, cable ties, cable clips, cable glands and copper inserts. They have entered the mafket of most parts in the world including Europe, the Middle East and Latin America. They are of good quality and sell well in many countries.

Our company manufactures products strictly according to IEC and national GB standards, and we have established a complete and improved quality management system according with ISO9002 standard system, We guarantee the products with competitive price, high quality and timely delivery. Besides, we can supply a complete set of after-sales service to our customers and help term expand their local market share.

We welcome you to contact us for more information and we are looking forward to chances of creating a long and mutually beneficial partnership with you. We do hope to cooperate very very well and develop rapidly with our joint efforts for mutual benefits.
