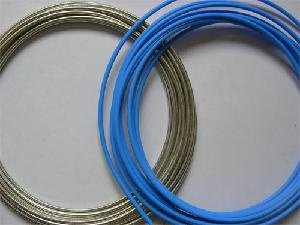

CPR Approval Semi Flexible Coaxial Cables

CPR Approval Semi Flexible Coaxial Cables
Price: Negotiable/Box
Trade Terms: FOB,CFR,CIF
Min Order: 50/Box
Pay Type: L/C,T/T,Western Union
Prod Model: S-16062015104
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Package: 305m/ Wooden Drum/ Box
Dielectric: 0.29mm PTFE
Inner Conductor: 0.29mm Spccs
Impedance: 50+/-2ohm
Application: Coaxial Cable
Conductor Material: Copper
Certification: UL
Cover Material: PTFE Insulation
Type: RF
Model: S-16062015104
Brand: Simpact/OEM

Product Description


Product Description
Construction:
Inner Conductor: 0.29mm SPCCS
Dielectric: 0.94mm PTFE
Outer Conductor: 1.19mm Tin Dipped Copper Braid

Electrical & Mechanical Characteristics:
Capacitance (pF/m) 95.1
Impedance (Ω) 50+/-2
Velocity of Propagation (%) 70.0
Max. Operating Frequency (GHz) 109.0
Max. Operating Voltage (VRMS) 1500.0
Time Delay(ns/m) 4.7
Min. Inside Bend Radius (mm) 4.0
Operating Temp Range (º C) -55 to +155

Semi-Flexible coaxial cable, 0.047 inch diameter 50 ohm coaxial cable with silver-plated copper clad steel center conductor, solid PTFE dielectric, and Tin dipped Copper Braid, and extruded FEP jacket is available too.



Packing Lengths
305m/roll
 Inner packingWooden reel, plastic reel.
Outer packingCarton box, pull out box, pallet available.
Other packing available according to client's request
Our Service
1.OEM service
2.Free sample for evaluating
3.UL,ROHS,CE,ISO certificated
4.Strictly quality control, best price, best service
Guangdong Simpact Technology Corp. Is located in Huadu District, Guangzhou Overseas Chinese Science and Technology Industrial Park, a land area of 90 acres, 50.08 million yuan of registered capital of the company, has a staff of 500 people. Is a research and development, production and sales in one of the digital communication cable manufacturer specializing in the production and sales of the network wire, communication wire, the production capacity and the largest in the forefront of the industry in the province, China Telecom, China Unicom, China Mobile Communications co-production supplier of wire, the current annual turnover of over $ 500 million annual tax amount of thousands of yuan.

Products comply with ISO9001-2008 standard certification, copper, fiber products by UL U. S. Federal certification, the European RoHS certification, CE certification and national Theil, the technical indicators meet the requirements, "Simpact" brand by China' S industry and commerce administration trademark Office registered the prestigious both at home and abroad.

Simpact has branches and offices in the major cities of Guangzhou, Shenzhen, Beijing, Shenyang, Chongqing, Chengdu, Hangzhou, Shijiazhuang, In addition to the domestic market, but also exported to Europe, the Americas. The company adhering to the "quality first, customer first" business philosophy, in recent years, in the increasingly severe market competition, Simpact excellence, strict quality control, attention to after-sales feedback to ensure the survival of enterprises in the competition in the development of competition, and move forward in the competition.

Work Simpact, the better!
