| Prod Model: |
F24-60 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Shell: |
Fiberglass |
| Weight: |
Approx.1000g |
| Control Distance: |
Within 100m |
| Application: |
Toys |
| Signal Transmission: |
Radio Waves |
| Type: |
Joystick |
| Certification: |
CE |
| Universal: |
Universal |
| Transmission Distance: |
50-100m |
| Voltage: |
12V |
| Material: |
Plastic |
| Battery Type: |
AAA Battery |
Product Description
Specifications

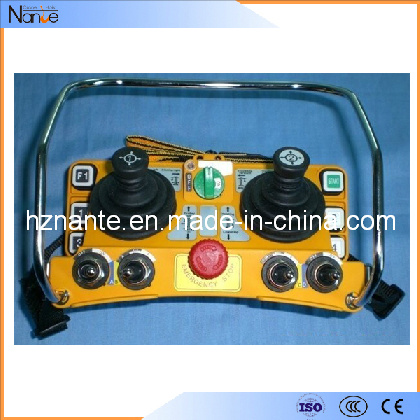

1. Crane Radio Joystick Remote Control, Low Power Consumption
2. Joystick type
Buttons
Double 5 steps Joystick with 6 single step buttons and 4 selector switch
1. Fully programmable relay configuration with maximum 16 relays output per command.
2. Feature accleration delay time control
Product introduction
Radio Remote Controls have become a key element within a modern working context where safety, productivity, freedom of movement has a continuously increasing importance. Industrial radio controllers are consequently for time saving and risk reduction working instruments.
Thanks to the radio controller, the operator stands in the place with the best visibility and lowest operation risk. The wireless technology allows controlling the machine in full autonomy without requiring other operators to support the job with indications.
Receiver:
Size: 290*230*70 mm
Weight: 2200g
Receiver power supply: 24/48/110/220/380 VAC
Transmitter:
Size: 210*110*90mm
Weight: Approx. 860g (without batteries)
The ranges of applications of our industrial radio remote control system
1. Overhead bridge cranes,
2. Gantry crane
3. Beam launcher
4. Monorail hoists,
5. Motorized jib cranes o
6. Other pieces of industrial equipment.
Features
Joystick control, easy and fexible for operation.
Light weight for carring.
Durable nylon-fiber housing for extra shock resistance...
Fully programmable relay configuration with maximum 16
Relays output per command.
Operating range up to 100 meters
Pre-wiring standard cable making installation quick and easy.
Economic efficiency, ease of operation.
3 stages LED battery power indicator.
Feature acceleration delay time control (smooth moving for
Multiple speeds cranes)
Safety features:
-4.3 billion unique ID code
-Hamming code
-Enhanced watch-dog circuit
| General Specification |
| Operating Temp. | -35 o C ~ +80 o C |
| Maximum Range | 100 M |
| TX power supply | 4 AA size Alkaline batteries |
| RX power supply | 24/48/110/220/380 V |
| Protection class | IP 65 Industrial standard |
| ID Code | 4.3 billion (32 bit) |
| Hamming code distance | > 4 |
| TX Dimension & Weight | 220x110x90 mm Apprx. 860g (w/o batteries) |
| RX Dimension & Weight | 290x230x70mm Apprx.2200g (w/o cable) |

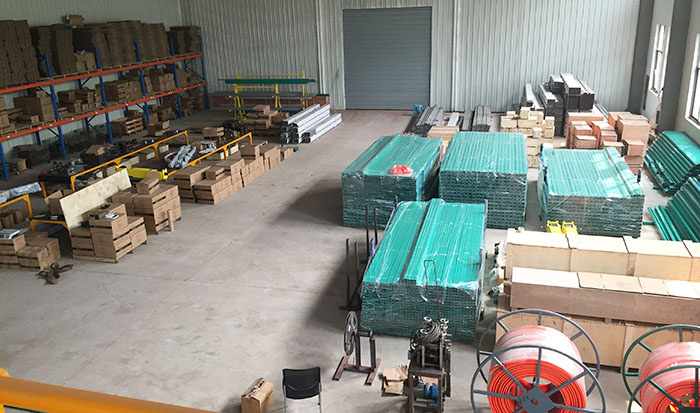

Nante Machinery is a subsidiary company of Zhejiang Zhongjian Road & Bridge Machinery Co, . Ltd. Zhongjian was founded in 1994. After nearly two decades' sound and rapid development, we have grown into one of China's leading heavy machinery cranes and crane components manufacturers. We covers an area of more than 100, 000 square meters, and above 500 experienced employees, among which, a rough 10% are engineers. Our production lines are all equipped with world-leading brand tools and devices. In recent years, our annual revenue has steadily exceeded 20 million USD, in which a 20% contribution is from foreign trading. We have established long term business relationship with lots of clients from USA, Singapore, Indonesia, Kenya, India, Cambodia, South Africa, Albania, Chile etc.
As a mature crane components manufacture, we not only produce normal crane components, but also deliver an end-to-end solution to crane projects.
We have more than 100models of products
1. From wheel, whell sets to wheel block and end carriage
Open geared type to Hollow shaft model
110mm wheel to 700mm diameter
2. From Lowhead room electirc hoist to chain hoist
3. From Enclosed conductor rail to unipole insulated conductor
HFP56, HFP52(AKAPP model), HFP95(max. 10poles), NSP(max. 1250ampers)
4. From C track festoon system to beam trolley, wire rope trolley to angle steel trolley
5. From Crane cabin to electric panel
6. From industrial remote control to pendant control
7. From limited switch to overload device
As a mature heavy machinery manufacturer, we not only produce individual industrial equipments, but also deliver an end-to-end solution to cover the entire project lifecycle including machinery design, manufacturing, installation and on-going maintenance. We have more than 50 models of products, which can be divided into five major categories as following:
1. Series of construction cranes
Bridge launching crane, form traveller, bridge deck launching gantry, tower crane etc.
2. Series of workshop, shipyard, and port cranes
Overhead crane, gantry crane, jib crane and portal crane etc.
3. Various parts of cranes
Electric hoist, winch, motors, rails, bus bars etc.
4. Structural steel projects
Contractor of industrial steel structures such as new-built workshops, towers, chutes, etc
5. Steel Bailey bridges
Two standard models called Compact 100 and 200 in International market
Quality concept lies deeply in our blood. We are awarded Class-A license of specialized equipment manufacturing and repairing officially by China's State Administration of Quality Supervision, Inspection and Quarantine. All of our deliverables have been certified against ISO9001-2008 quality management system.
Fact is always more persuading than paper works. The quality of our products and services has been testified by their successful implementations in a number of key national construction projects, to name some of them: Hangzhou bay Bridge, Jiubao Bridge, Shanghai-hangzhou high-speed railway, Shenzhen-Guangzhou highway, etc.
We pursue the value of innovation, quality, efficiency and excellence in our company's long term development strategy. We target to become one of China's top manufacturer and solution provider in the heavy machinery industry and a competitive player in the overseas market.
