CS1-J Auto Switch Magnetic Sensor

Name: CS1-J Auto Switch Magnetic Sensor
Brand: all-electronics-online.com
SKU: 826236005
Availability: InStock
Rating: 4.7 (29 reviews)

Price:	US $ 1.99-9.99/Piece
Min Order:	10/Piece
Pay Type:	L/C,T/T,D/P,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	CS1-J
Type:	Infrared Sensor Switch
Principle:	Infrared
Wires:	Two-Wires
Standard:	Standard
Application:	Corridor
Certification:	CE

Product Description

Specification

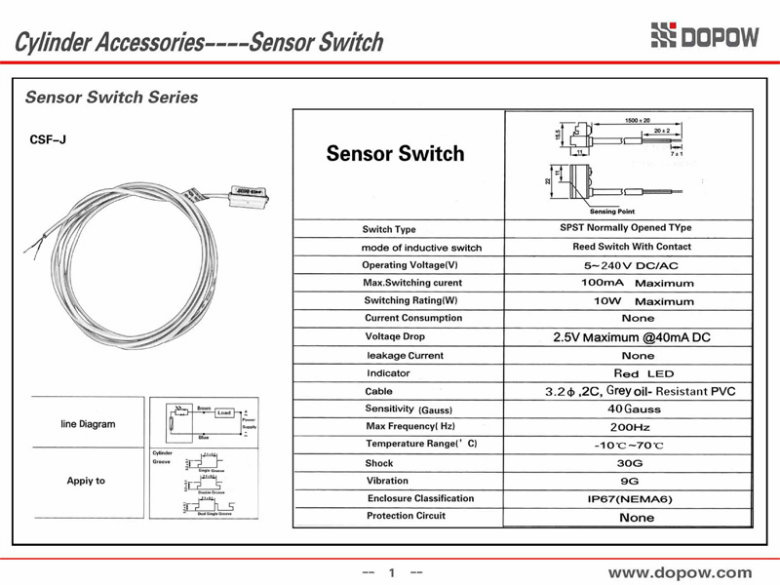

1. CS1 Auto Switch also called magnetic sensor, it played an important role with pneumatic cylinder.
2. Reed action type, widely used on built-in magnet air cylinder.

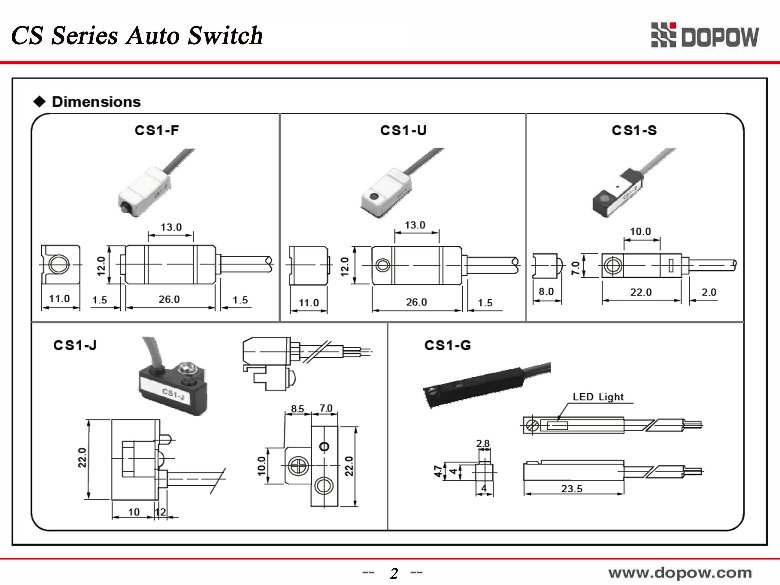

3. Dopow provide many sensor for different pneumatic cylinder. Model: CS1-F, CS1-U, CS1-S, CSI-J, CS1-G

Auto Switch	Operating voltage rang	Operating current range	Response time	Shock resistance	Indicator lamp	Lead wire	Temperature range	Applicable cylinder series

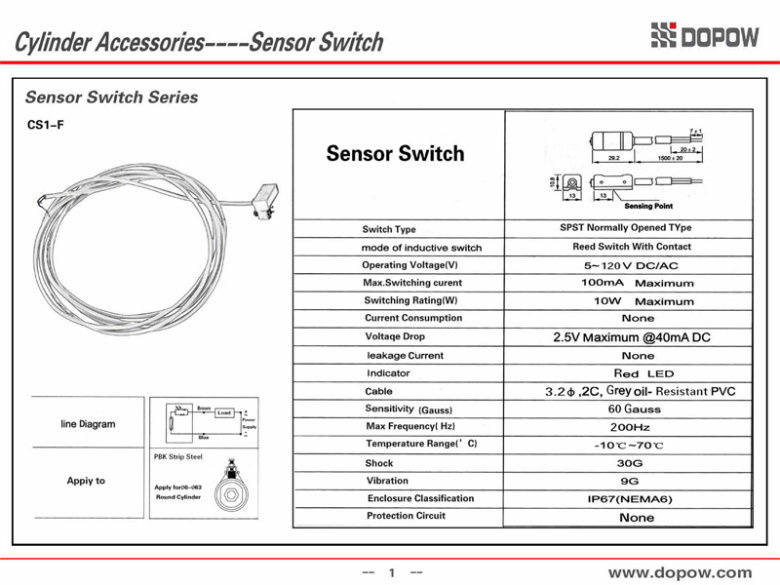

CS1-F	DC:5V-240V AC:5V-380V	DC:5-60mA AC:5-50mA	1ms (Max.)	300m/S²(30G)	LED	2M	0~60ºC	SI,SU,SC,MI,MF,MA,MAL
CS1-U	DC:5V-240V AC:5V-380V	DC:5-60mA AC:5-50mA	1ms (Max.)	300m/S²(30G)	LED	2M	0~60ºC	SI,SU,SC,MI,MF,MA,MAL
CS1-S	DC:5V-240V AC:5V-240V	DC:5-60mA AC:5-40mA	1ms (Max.)	300m/S²(30G)	LED	2M	0~60ºC	MI,PB,MF,MA,MAL
CS1-J	DC:5V-240V AC:5V-240V	DC:5-60mA AC:5-40mA	1ms (Max.)	300m/S²(30G)	LED	2M	0~60ºC	ACQ,SDA,TN

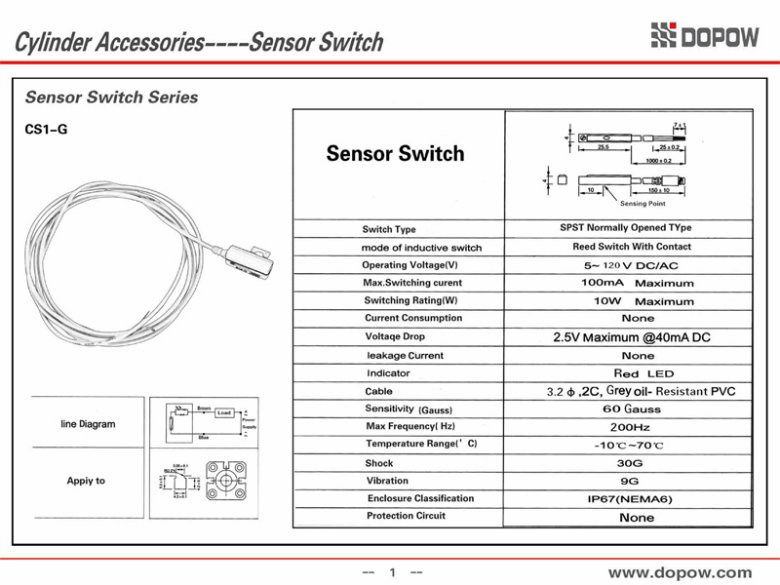

CS1-G	DC:5V-240V AC:5V-240V	DC:5-60mA AC:5-40mA	1ms (Max.)	300m/S²(30G)	LED	2M	0~60ºC	ACQ,SDA,MD,MK,STM
