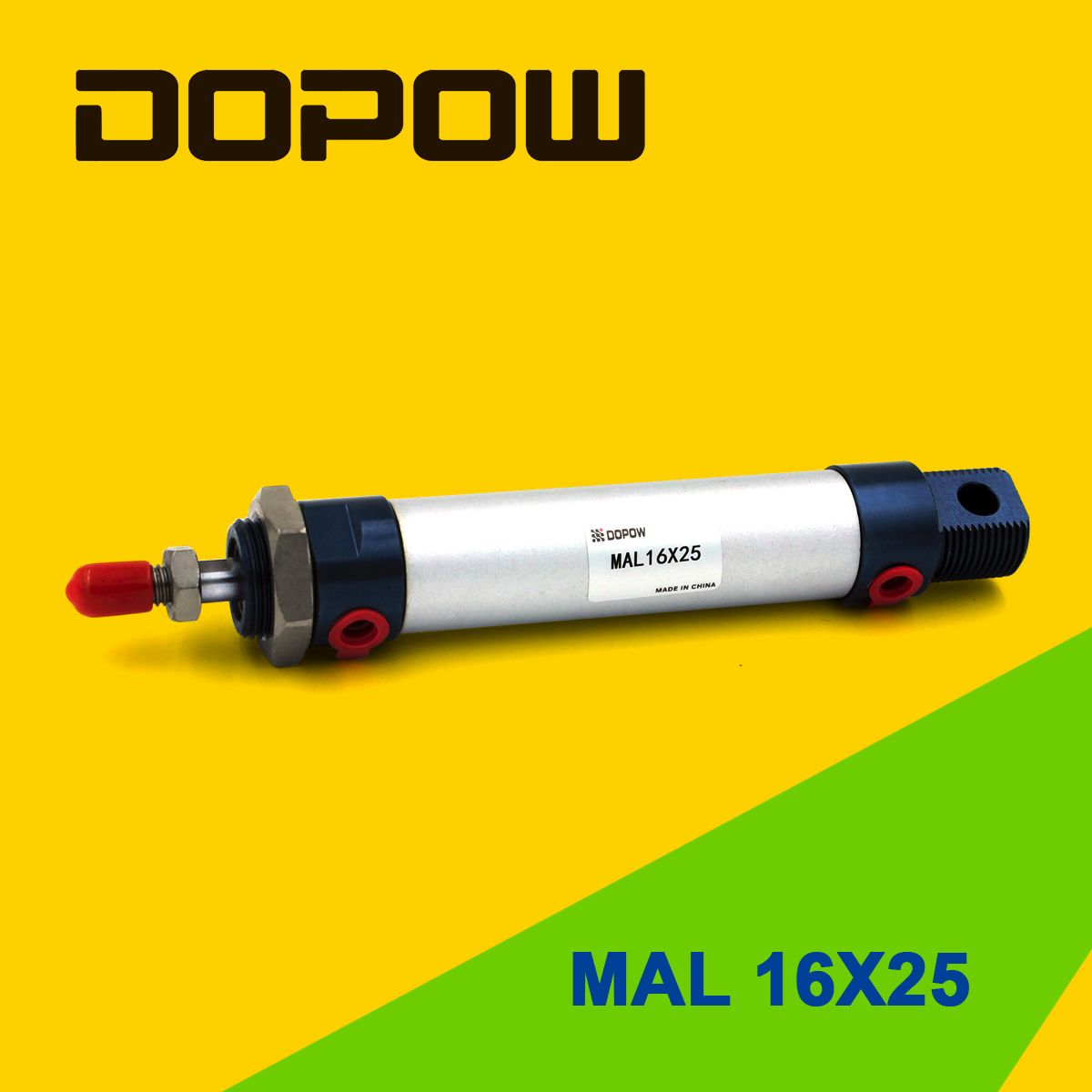

Dopow Mal16-25 Pneumatic Cylinder Mini Air Cylinder

Name: Dopow Mal16-25 Pneumatic Cylinder Mini Air Cylinder
Brand: all-electronics-online.com
SKU: 816240535
Availability: InStock
Rating: 4.6 (73 reviews)

Price:	US $ 4.2-5.4/Piece
Min Order:	1/Piece
Pay Type:	L/C,T/T,D/P,Paypal,Money Gram

Contact Supplier

Showroom Product Company Profile

Prod Model:	MAL16-25
Bore:	12mm/16mm/20mm/25mm/40mm
Stroke:	25-500mm
Max Using Pressure:	0.9 MPa
Promise Pressure Resistance:	1.35MPa
Port Size:	M5,1/8"
Material:	Aluminum
Structure:	Piston Cylinder
Power:	Pneumatic
Standard:	Nonstandard
Pressure Direction:	Double-acting Cylinder

Product Description

Manufactured by our enterprise.
Front and back cover and cylinder tube are connected by threads.
Piston adopts heterogeneous two-way seal structure. It has compact size and has the function of grease reservation.
Front cover adopts self-lubrication bearing guide that has good performance of lubrication and guide.
There are several modes of back cover, which makes the installation of cylinder more convenient.
There are cylinders and mounting accessories with several specifications for your choice.

Details

Bore size(mm)		20	25	32	40
Acting type	MSAL,MTAL	Single acting
	MAL,AMLD,MALJ	Double acting
Fluid		Air(to be filtered by 40µ m filter element)
Operating pressure	Double acting	0.1~1.0MPa(15~145psi)(1.0~10.0bar)
	Single acting	0.2~1.0MPa(28~145psi)(2.0~10.0bar)
Proof pressure		1.5MPa(215psi)(15bar)
Temperature ºC		-20~70
Speed range mm/s		Double acting:30~800 single acting:50~800
Stroke tolerance		0~150+1.0>150+1.4
Cushion type		Bumper
Port size		1/8"		1/4"
PT thread,NPT thread and G thread are available.
