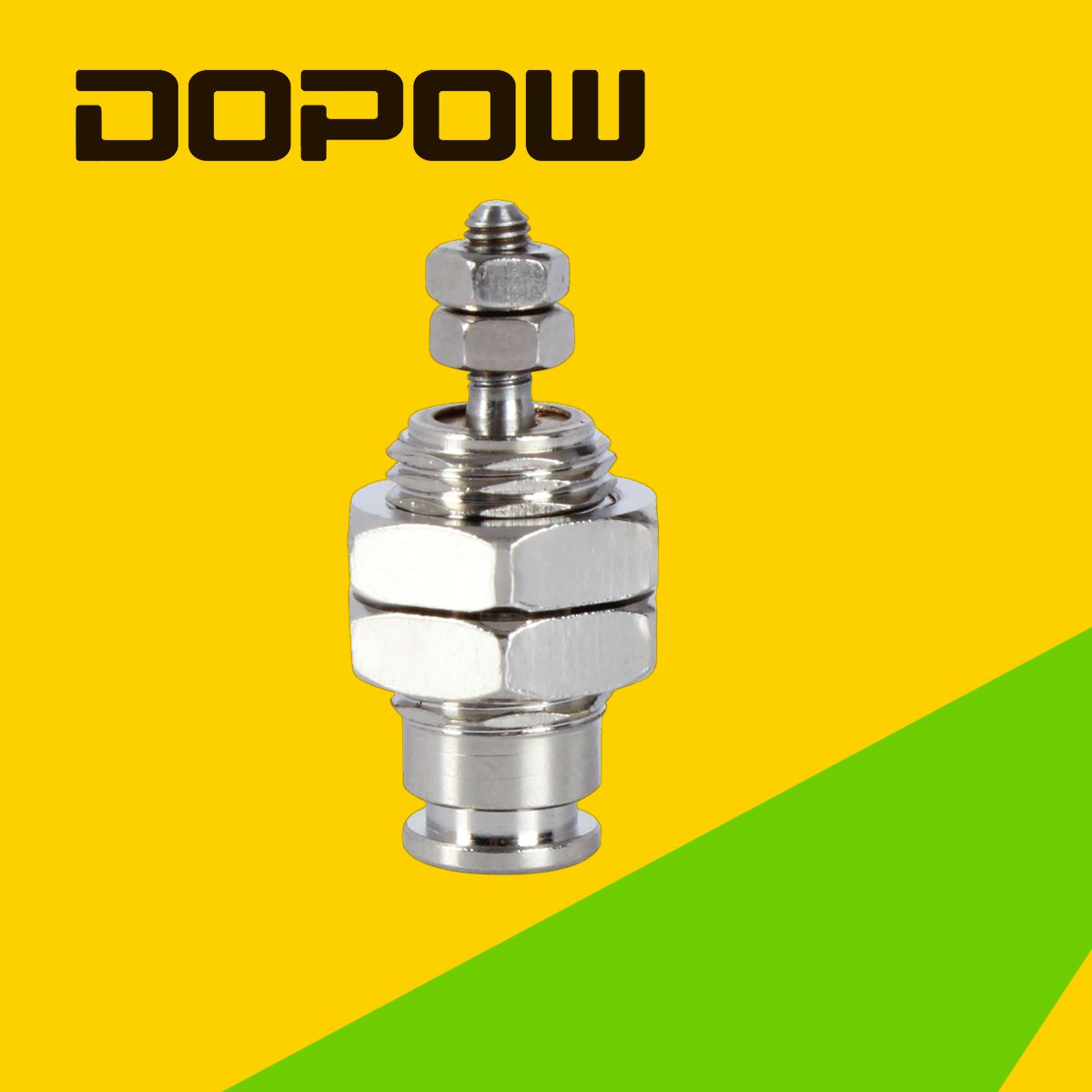

Dopow Cjpb Needle Type Cylinder (single action)

Name: Dopow Cjpb Needle Type Cylinder (single action)
Brand: all-electronics-online.com
SKU: 816661575
Availability: InStock
Rating: 4.4 (105 reviews)

Price:	Negotiable/Piece
Min Order:	5/Piece
Pay Type:	L/C,T/T,D/P,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	CJP
Bore:	6mm/10mm/15mm
Stroke:	5-15mm
Max Using Pressure:	0.7MPa
Promise Pressure Resistance:	1.05MPa
Port Size:	M5
Material:	Aluminum
Structure:	General Cylinder
Power:	Pneumatic
Standard:	Standard
Pressure Direction:	Single-acting Cylinder

Product Description

DOPOW single-acting CJP Series pin cylinder has a compact brass body with an unthreaded stainless-steel piston rod, and it has panel mounting for installation through walls or panels.

1) CJP series needle cylinder ,compact design minimizes mounting space .
2) Be available in two mounting types:panel mounting and embedding mounting.
3) Single action with spring return and double action are available.
4) Precision grinding piston rod,cylinder parts were processed by high precision CNC lathe and CNC machining centre,and also good seals to guarantee good action and long lifetime.

Specification

Bore size	6	10	15
working fluid	Air
Working type	Single acting-spring in
Max working pressure	0.7
Min working pressure	0.12	0.06
Ambient & fluid temperature	Without sensor switch:-10ºC,with sensor switch:-10ºC~60ºC
Cushion	Rubber cushion in two ends
Piston working speed	50~500mm/s
Stroke tolerance
Oil supply	No need
Port size	M5X0.8
