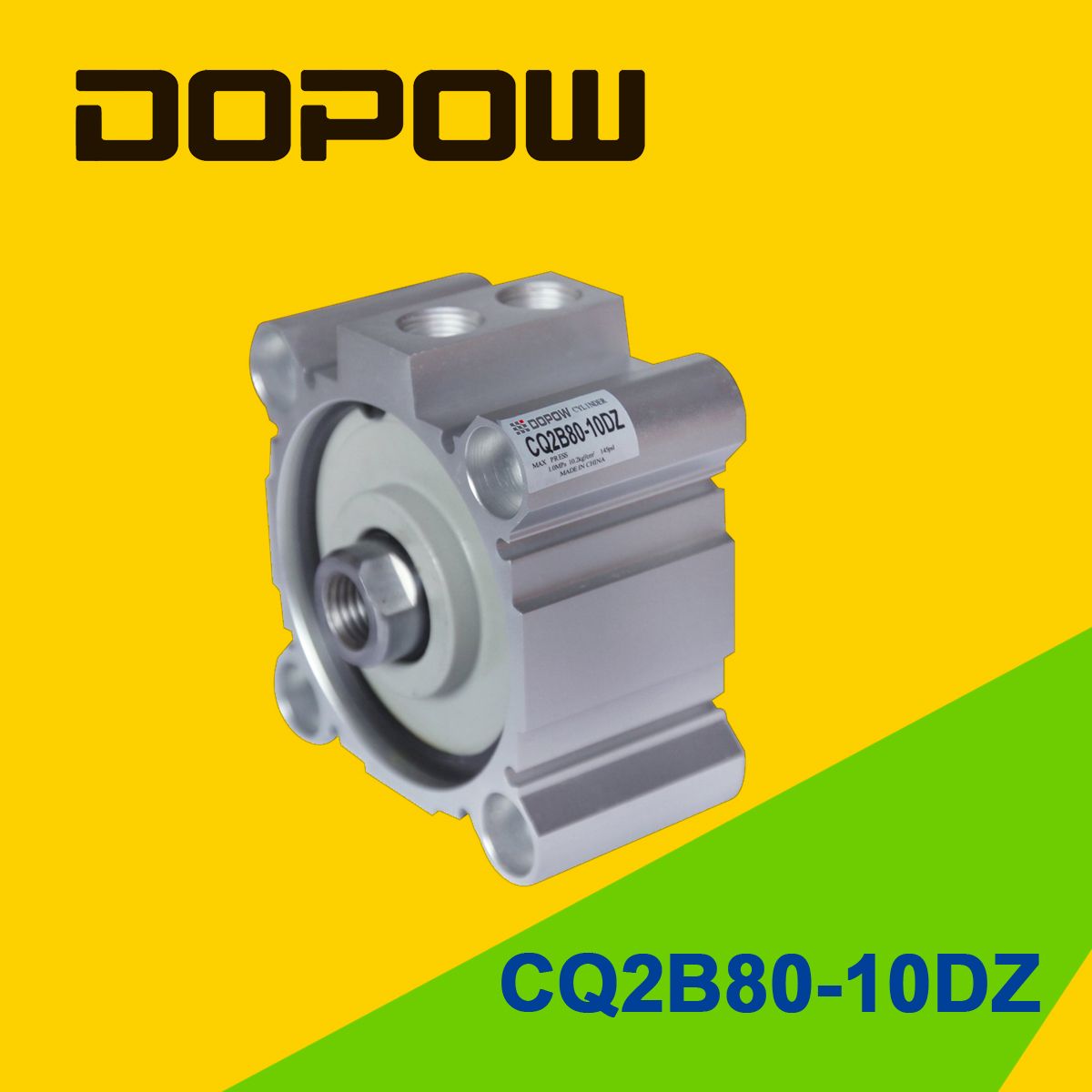

Dopow Series Cq2b80-10 Compact Cylinder Double Acting Basic Type

Name: Dopow Series Cq2b80-10 Compact Cylinder Double Acting Basic Type
Brand: all-electronics-online.com
SKU: 815641015
Availability: InStock
Rating: 4.9 (43 reviews)

Price:	US $ 11.99-13.99/Piece
Min Order:	10/Piece
Pay Type:	L/C,T/T,D/P,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	cq2b80-10
Max Using Pressure:	0.9 MPa
Promise Pressure Resistance:	1.35MPa
Port Size:	M5, 1/8, 1/4, 3/8
Material:	Aluminum
Structure:	General Cylinder
Power:	Pneumatic
Standard:	Standard
Pressure Direction:	Double-acting Cylinder

Product Description

Compact thin cylinder requiring small space for installation, easy maintance and disassembly.
Provided with push-in slot for installation of magnet switch, which can fix the magnet switch at any position.
The air cylinder, without the need to add lube, suits the occasions of short stroke and small installation space.

Features:
CQ2B series Impact Pneumatic Cylinder .
Equivalent to SMC new compact air cylinder CQ2 series, With the same appearance.
Remodeled with a new body to get more flexibility.
Can mount small auto switches on 4 surfaces.(12 to 25mm: 2 surfaces) Improved flexibility of system design..
A wide variety of types and broad size variations.
Bore size(mm): 12, 16, 20, 25, 32, 40, 50, 63, 80, 100.
Double acting or single acting.
Reduction in number of components, takes a lot of labor and time.
Comapct size, lighter weight, long service life, easy to maintain and operate, Low cost.

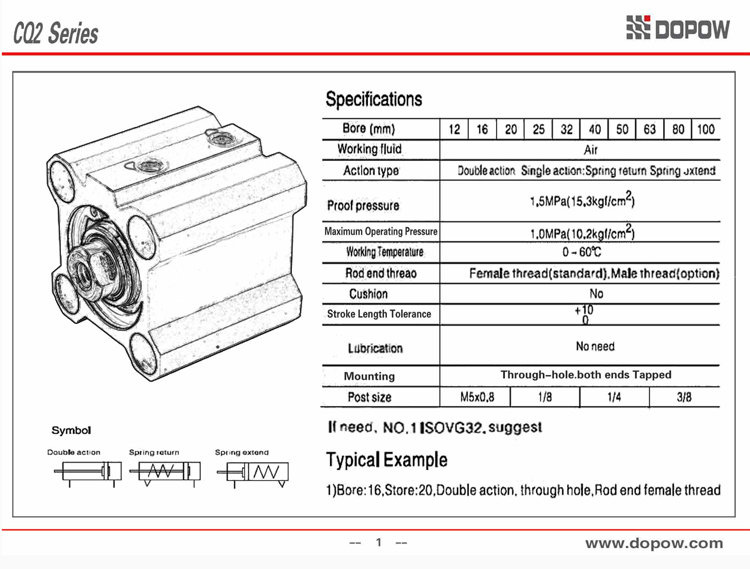

Specification:CQ2B Series Aluminum Cylinder

Bore size (mm)	12	16	20		25	32	40	50	63	80	100
Fluid	Air
Action	Double acting,Single rod
Minimum operating pressure	0.07 Mpa			0.05 Mpa
Maximum operating pressure	1.0 MPa
Proof pressure	1.5 MPa
Ambient and fluid temperature	Without auto switch: - 10 to 70°C (No freezing)
	With auto switch: - 10 to 60°C (No freezing)

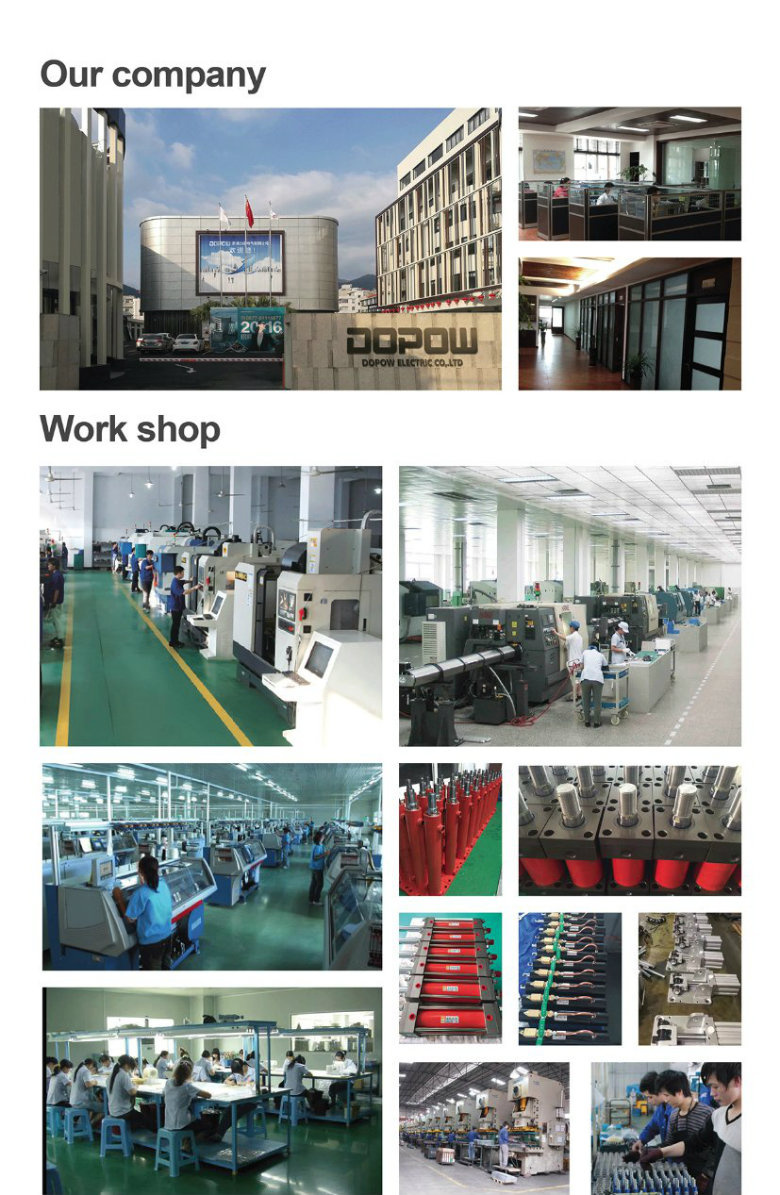

We were founded in 2007, Our company supplies different kinds of products. High quality and favorable price. We're pleased to get your Inquiry and we will come back to as soon as possible. We stick to the principle of "quality first, service first, continuous improvement and innovation to meet the customers" for the management and "zero defect, zero complaints" as the quality objective. To perfect our service, we provide the products with good quality at the reasonable price.

Since its inception, DOPOWhas researched and developed various kinds of products while constantly predicting and meeting future needs as a pioneer in automation technology. Today, our product lineups have tens of thousands of items, and we play an active role in a broad range of industrial fields. With our comprehensive technological strengths, we can develop creative products in cohort with customers
