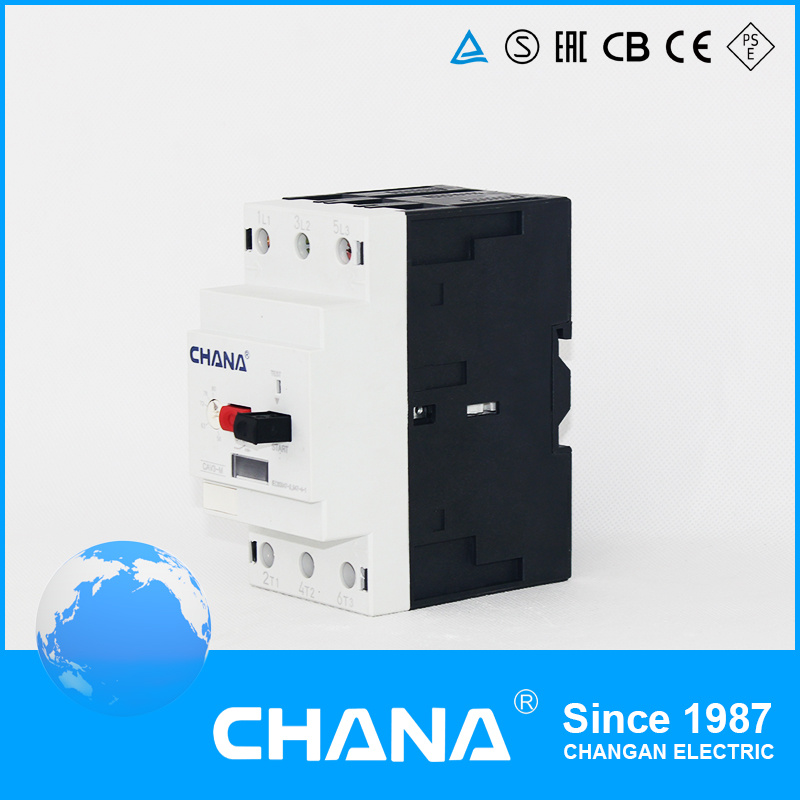

CS2-80 (GV3) Motor Protection Circuit Breaker

Name: CS2-80 (GV3) Motor Protection Circuit Breaker
Brand: all-electronics-online.com
SKU: 749028595
Availability: InStock
Rating: 4.5 (79 reviews)

Price:	US $ 7-16/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	100/Piece
Pay Type:	L/C,T/T,D/P,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	CS2-80
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
IEC Standard:	IEC60947-2
Approval:	CE
Max. Current:	80A
Phase:	3 Phase
Breaking Capacity:	Low Voltage Circuit Breakers
Operation:	Manual Type
Speed:	Normal Type Circuit Breaker
Arc-extinguishing Medium:	Air
Installation:	Fixed
Poles Number:	3
Certification:	CE
Structure:	MPCB

Product Description

1.General

1) Electric ratings: AC690V, 32A, 80A;
2) Standard: IEC/EN 60947-2, IEC60947-4-1

2.Operating Conditions

1) Temperature: -5ºC~+40ºC average temperature in 24 hours not exceed +35ºC
2) Altitude: not exceed 2000m
3) Air conditions:
At mounting site, relative humidity not exceed 50% at the max temperature of +40ºC, higher relative humidity is allowable under lower temperature,for example, RH could be 90% at +20ºC
4) Pollution grade: Grade III
5) Release grade: 10A(CS2-32)   10A(CS2-80)
6) Rated operational system: Continuous operational system
7) Mounting conditions:
   The inclination between the mounting plane and the vertical plane shall not exceed 5°
   The product shall be installed and operated at a place without obvious shake, Impact and vibration....

3.Technical Data

Model of overload relay	Code	Rated current(A)	Rated ultimate short-circuit breaking capacity Icu(kW)			Rated service short-circuit breaking capacity Ics(kW)			Standard rated power of three-phase motor(kW)
Model of overload relay	Code	Rated current(A)	230/240V	400/415V	660/690V	230/240V	400/415V	660/690V	230/240V	400/415V	660/690V
CS2-32	3201	0.1-0.16	100	100	100	100	100	100	-	-	-
	3202	0.16-0.25	100	100	100	100	100	100	-	-	-
	3203	0.25-0.4	100	100	100	100	100	100	-	-	-
	3204	0.4-0.63	100	100	100	100	100	100	-	-	0.37
	3205	0.63-1	100	100	100	100	100	100	-	-	0.55
	3206	1-1.6	100	100	100	100	100	100	-	-	1.1
	3207	1.6-2.5	100	100	3	100	100	2.25	0.37	0.75	1.5
	3208	2.5-4	100	100	3	100	100	2.25	0.75	1.5	3
	3210	4-6.3	100	100	3	100	100	2.25	1.1	2.2	4
	3214	6-10	100	100	3	100	100	2.25	2.2	4	7.5
	3216	9-14	100	15	3	100	7.5	2.25	3	5.5	9
	3220	13-18	100	15	3	100	7.5	2.25	4	9	11
	3221	17-23	50	15	3	50	6	2.25	5.5	11	15
	3222	20-25	50	15	3	50	6	2.25	5.5	11	18.5
	3232	24-32	50	15	3	50	6	2.25	7.5	12.5	22
CS2-80	8025	16-25	-	15	-	-	7.5	-	5.5	11	-
	8040	25-40	-	15	-	-	7.5	-	11	22	-
	8063	40-63	-	15	-	-	7.5	-	15	33	-
	8080	56-80	-	15	-	-	7.5	-	22	45	-
