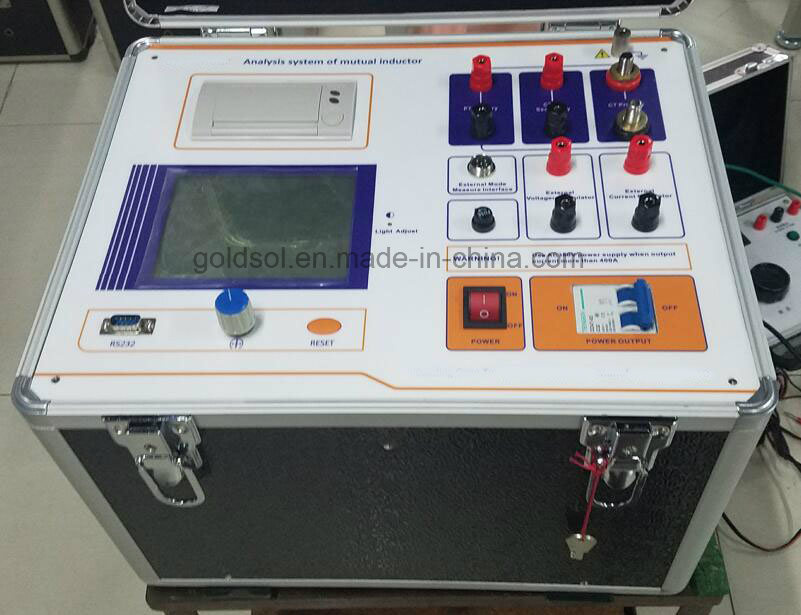

CT Integrated Characteristics Tester

Prod Model:	GDVA-402
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Usage:	Electric Component Tester
Type:	Transformer Tester
Customized:	Non-Customized
Display:	LCD

Product Description

Summarize
The CT tester is a comprehensive atomatic current transformer test equipment, testing including: CT characteristics test, CT polarity test, CT polarity test transformer ratio. The Instrument can automatically calculate any point error curve CT, CT difference of transformer ratio. The Instrument has the following features:

Safe and convenient operation: Microcomputer device, built-in import of high-performance CPU, high reliability, according to the interface are prompted to set the test value, without human contact with the test equipment, eliminating manual pressure regulator, manual record, organize, describe curves tedious labor. Fast, simple and convenient. No computer knowledge is very easy to master, so away from the high voltage circuit testing personnel to ensure their personal safety.

Full-feature: Testing protection CT characteristics, automatic draw 5% and 10% error curve, ratio, polarity, it can also output high current which is used to test CT secondary loop circuit.

Output capacity: Maximum output voltage characteristic test voltage up to 1000V, variable ratio test maximum current up to 600A, the instrument output capacity 5kVA.

Optional accessories completed: Accessories including external Voltage Transformer, external Current Transformer, external voltage regulator. External voltage transformer maximum voltage up to 2000V/3A; External Current Transformer up to 1000A; Maximum output of external voltage regulator up to 1500V/20A. Characteristic test of highest level 500KV 1A current transformer can be tested if external voltage transformer.

Good interface: Large-screen 320 * 240 DOT matrix characters graphical interface, after the test is completed, it can be directly displayed volt-ampere characteristic curve, graphics, clear, beautiful, easy-to-analysis, comes with micro-printer, and print curves and test results.

6. Convenient human-computer interaction: High-performance optical instruments rotate the mouse as an input device, simple operation, long service life.



Data memory capacity: Built-in Flash memory devices which can store large amounts of test data, non-volatile data storage, after field test is completed, it can be in the room to view and print test results.

Multi-channel human-computer interaction: Instruments in addition to its input by rotating the mouse control, you can also comes with RS232 communication interface with the computer online, PC, and instrumentation to achieve communication, can take advantage of computer-controlled test equipment to test or Upload test data from the instrument, apparatus, brought a powerful PC, application software, beautiful appearance, easy operation, the test results can be achieved save, print, and export data to EXCEL to test editing a document format.

Results easy to operate: After test, using the cursor to show through each point on the curve corresponds to the voltage and current values, you can choose to print the print data or print or both print the curve, you can also set the data according to the actual needs of the print interval Save to save the actual need to set the type and label.

Multi-mode power supply: AC380V AC220V power can achieve adaptive supply. When AC220V power supply input, AC voltage output is 0 ~ 600V; AC380V input terminals voltage, AC voltage output is 0 ~ 1000V. Users can choose according to actual needs.

	Input	Output		Test  Range		Accuracy
Instrument Host	220V	0-600V, 0-20A		0-600V, 0-20A		0.5%
	380V	0-1000V, 0-20A		0-1000V, 0-20A		0.5%
	220V	0-600A		0-600A		Transformer  ratio  0.5%
External  Voltage  Transformeter	220V	0-1650V, 0-3A		0-1650V, 0-3A		0.5%
	380V	0-2000V, 0-3A		0-2000V, 0-3A		0.5%
External  Current Transformeter	220V	0-1000A		0-1000A		Transformer  Ratio  0.5%
External  Voltage  Generator				0-1000V, 0-30A		0.5%
Power  Supply	AC220V/380V    50HZ		Size		420× 330× 320mm		Weight	24kg
