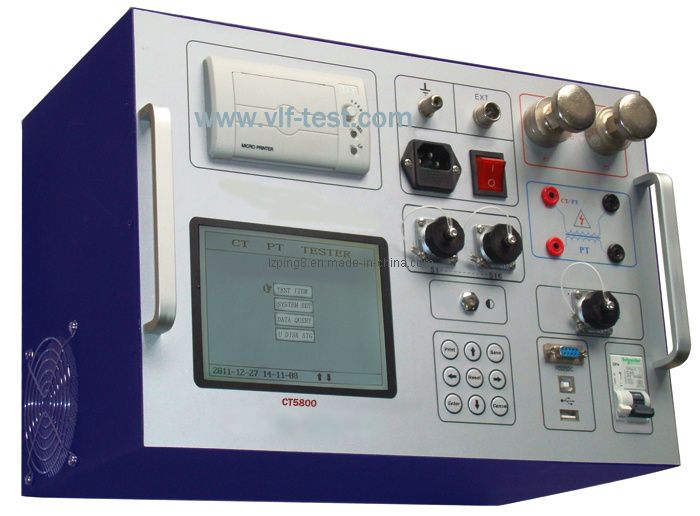

Current Transformer & Potential Transformer Analyzer

Prod Model:	CT5800E
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
CT PT:	CT PT
Type:	Combined Transformer
Phase:	Single
Application:	Instrument

Product Description

Overview

This tester is designed for testing volt-ampere characteristic, error curve, transformation ratio, polarity, angular difference ratio, and secondary side loop check, etc. When testing, the tester will boost voltage/current automatically and shows the testing results of volt-ampere characteristic, transformation ratio, polarity, etc. With only testing voltage/current value being set. The results displayed vary depending on the models chosen by customer. It supports data saving and field printing. This not only omits some trivial labor like manual voltage regulation, manual record, curve plotting, etc., but also can accomplish the program control to the tester and intelligent analysis to data results via RS232/USB interface, and thus offers a simply and intuitive operation.



Advantage

2.1 Safe and reliable: Single-phase AC220V input power, besides, operating power source and power source share a input port, more reasonable design, safer and more reliable in using.

2.2 Comply with national maintenance regulations: The power output of the device are all real voltage and current values, and waveform is standard sine waves, with frequency at 50-60Hz; It can simulate the real status of transformer effectively and complies with relevant national maintenance regulations.

2.3 High output capacity: Maximum voltage output is 0-2500V when single machine 220V input, single machine maximum current output is 0-1000A; Can test 500KV/1A transformers or above directly, suitable for using at field maintenance.

2.4 Complete functions: It has multiple uses, including testing CP/PT volt-ampere characteristic, transformation ratio, polarity, angular difference ratio, DC resistance, 5% and 10% error curve, CT once current flow and CT degaussing, etc.

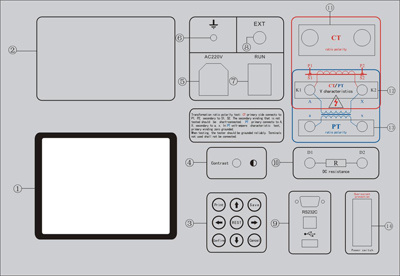

2.5 Simple connection mode: Uses single power input port, CT/PT testing items can be completed with only 8 testing ports. The mode of wire connection is simple and safe, suitable for using at field, can lower labor intensity and improve work efficiency greatly.

2.6 Wide test range: Test range of CT ratio is 25000A/5A, 5000A/1A.



Speciafication

Working Power: AC220V (50~60Hz)
Angular difference test accuracy: 4
Ratio difference test accur
Current-voltage output voltage: 0~2500V
Current-voltage output current: 0-15 A
Ratio output current: 0~1000 A
DC resistance test: 10mΩ~200Ω
Secondary load test range: 0-500VAacy: 0.1 level
Volt-ampere test accuracy: < 0.5%
Max. Transformation ratio test accuracy: < 0.5%
Operating temperature: -10~50ºC
Volume: 382× 265× 205 (mm)
Quality: 25Kg
