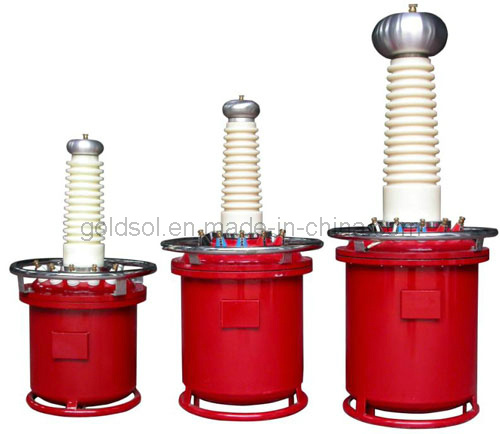

Sf6 Inflatable Test Transformer

Sf6 Inflatable Test Transformer
Price: Negotiable/Piece
Trade Terms: FOB,CFR,CIF
Min Order: 1/Piece
Pay Type: L/C,T/T,Paypal
Contact Supplier
Showroom Product Company Profile
Prod Model: DDJZ series
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Sf6 Transformer: Sf6 Transformer
Phase: Single
Winding Type: Auto-transformer
Application: Instrument
Coil: Power Test Equipment
Cooling Method: Sf6

Product Description

Instroduction:

SF6 Test Transformer are widely used for testing AC/DC withstand voltage such as electrical
equipment, electrical components, insulation materials.
This series of test transformer has the advantages of small size, light weight, compact structure,
strong universality etc.


Advantage

1.HV bushing was first time made

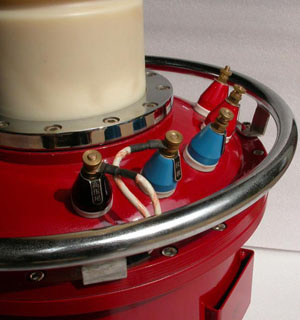

2.Between the bushing and the gas tank is completely isolated, and all connection parts adopted
 imported "O" type sealing ring seal, so we completely solve the common problems of
 transformer leakage.
3.Sleeping core type design, effectively improve seismic resistance.
4.All products're passed through 1.1 times induction withstand voltage testing.
5.Pure SF6 insulating medium.
6. HV & LV cables are made by high strength polyester, oxygen free copper enameled wires.
7.The core was adopted with new WISCO,two silicon cold rolled silicon steel strip



Technical parameters

1.Input voltage: AC 220V (10KVA or below); AC 400V ( over 10KVA)
2.No-load current:< 10%
3.Impedance voltage:< 10%
5.Ratio Error: <1%
6.Meter voltage: 100V



Spec. *  Input Output LV Current HV Current Size(mm) Weight
(kg)
3/50 AC200V 50kV 15A 60mA Φ300*690 35
5/50 25A 100mA Φ300*690 35
10/50 50A 200mA Φ375*750 60
15/50 AC400V 37.5A 300mA Φ420*800 70
20/50 50A 400mA Φ440*820 85
30/50 75A 600mA Φ386*840 100
50/50 125A 1000mA Φ416*910 120
5/100 AC200V 100kV 25A 50mA Φ300*1300 65
10/100 50A 100mA Φ475*1300 65
15/100
AC400V		 37.5A 150mA Φ390*1320 85
20/100 50A 200mA Φ400*1340 100
30/100 75A 300mA Φ410*1360 110
50/100 125A 500mA Φ460*1410 125
15/150 150kV 37.5A 100mA Φ390*1800 100
20/150 50A 133mA Φ415*1800 110
30/150 75A 200mA Φ430*1800 125
50/150 125A 333mA Φ490*1850 140
20/200 200kV 50A 100mA Φ510*2150 140
30/200 75A 150mA Φ530*2150 160
50/200 125A 250mA Φ550*2150 240
