| Prod Model: |
Mini Gbic |
| Item Name: |
SFP Module/Mini GBIC |
| Working Rate: |
1.25gbs/S |
| Mode Type: |
Mutil Mode |
| Wavelength: |
850nm |
| Fiber Type: |
Dual Fiber |
| Reach Distance: |
550m |
| Compatible Brands: |
Cisco,HP,H3c,etc |
| Customized: |
Available |
| Usage: |
Laptop |
| Type: |
Wired |
| Support Network: |
Ethernet |
| Information Content: |
Data |
| Certification: |
GS |
| Condition: |
New |
Product Description

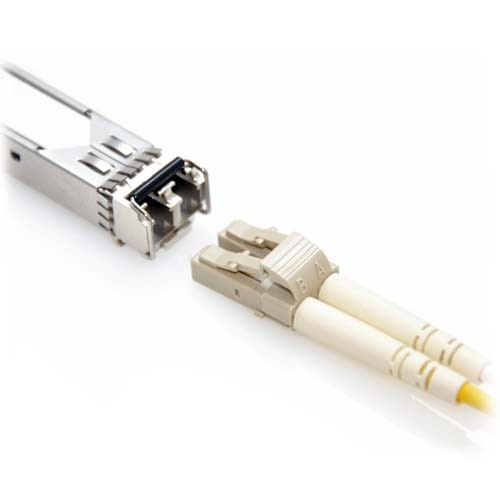

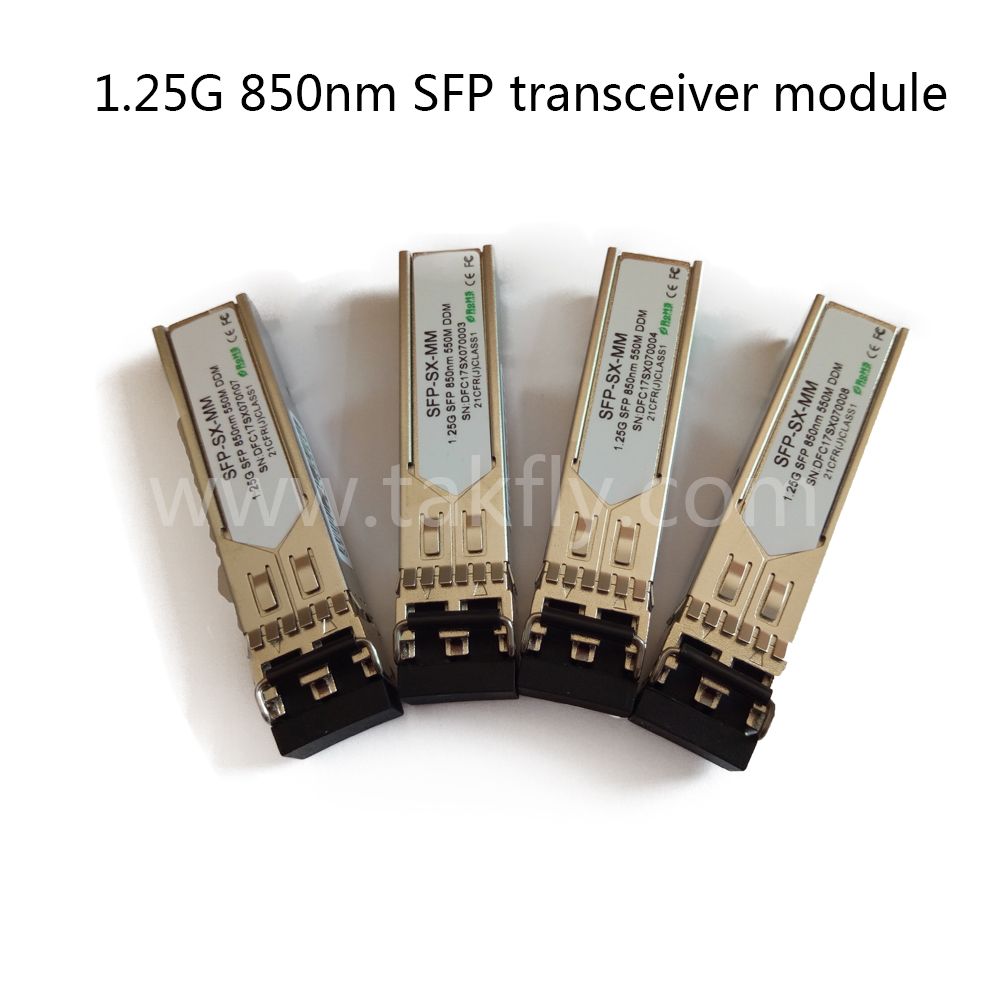

Customized 1.25G 850nm Mini SFP GBIC Transceiver ModuleMini SFP Gbic module tranceiver are hot-swappable, compact media connectors that provide instant fiber connectivity for your networking gear. They are a cost effective way to connect a single network device to a wide variety of fiber cable distances and types.
Description1.The Mini Gbic SFP transceivers are high performance, cost effective modules supporting data-rate of 1.25Gbps and 550m transmission distance with MMF.
2.The transceiver consists of three sections: a VCSEL laser transmitter, a PIN photodiode integrated with a trans-impedance preamplifier (TIA) and MCU control unit. All modules satisfy class I laser safety
requirements.
3.The transceivers are compatible with SFP Multi-Source Agreement (MSA) and SFF-8472. For further
information, please refer to SFP MSA.
Features1.Data-rate of 1.25Gbps operation
2.850nm VCSEL laser and PIN photodetector
3.Compliant with SFP MSA and SFF-8472 with duplex LC receptacle
4.Digital Diagnostic Monitoring: Internal Calibration or External Calibration
5.550m transmission with 50/125µm MMF
6.270m transmission with 62.5/125µm MMF
7.Compatible with SONET OC-24-LR-1
8.Compatible with RoHS
9.+3.3V single power supply
10.Operating case temperature range of 0°C to +70°C (Standard) or -40°C to +85°C (Industrial)
Mini Gbic spec| Optical Fiber Module |
| Standards and Protocols | IEEE 802.3z, CSMA/CD, TCP/IP |
| Wave Length | TX: 1550nm / RX: 1310nm |
| Power Supply | 3.3V |
| Cable | Single-mode Fiber |
| Fiber Type | 9/125 um Single-mode |
| Max. Cable Length | 20KM |
| Data Rate | 1.25Gbps |
| Port Type | LC or SC |
| Safety & Emission | FCC, CE,RoHS |
| Temperature | Operating Temperature: 0°C~70°C (32 ° F~158 ° F )
Storage Temperature: -40°C~80°C (-40 ° F ~176 ° F ) |
| Humidity | Operating Humidity: 10%~90% non-condensing
Storage Humidity: 5%~90% non-condensing |

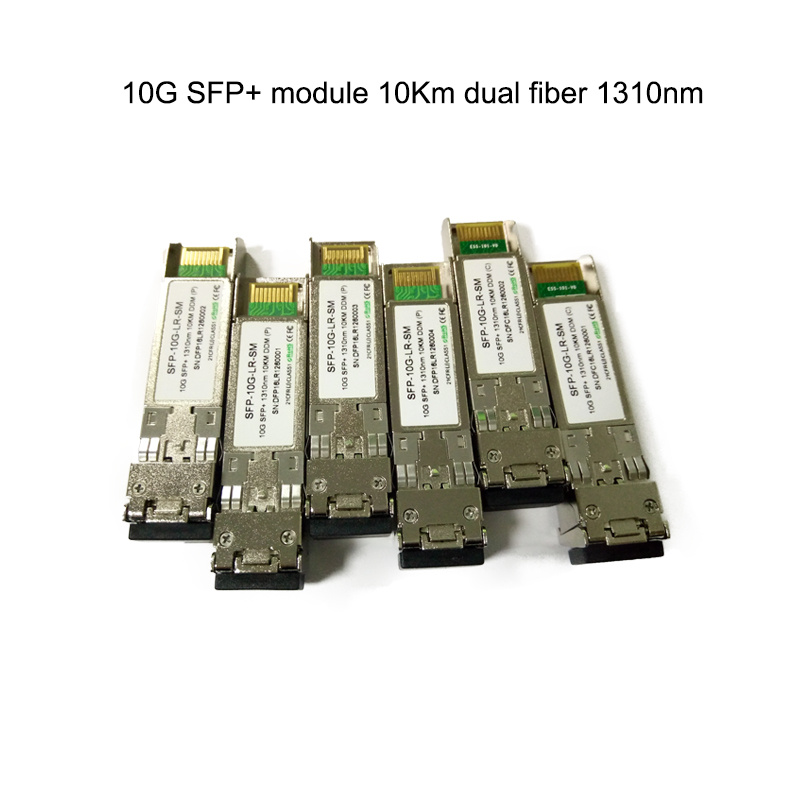

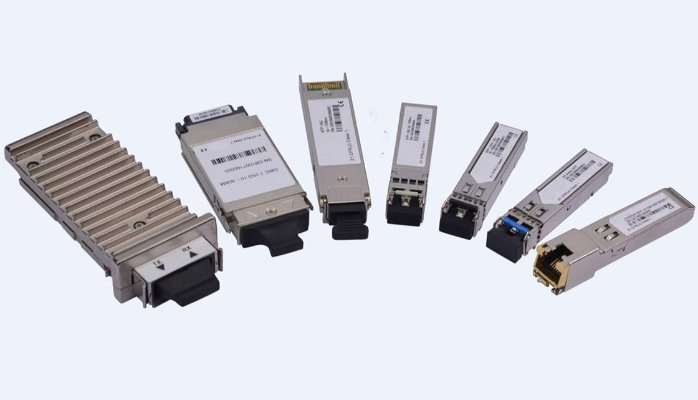

Different type of sfp gbic tranceiver module
What we can offer you:1.Order inquiry: Keep working time from 8 AM to 23 PM to gurantee the first reply
to clients,and 24 hours no Cellphone power off
2.Order production: Keep very close touch with production department to gurantee the right delivery time to
clients

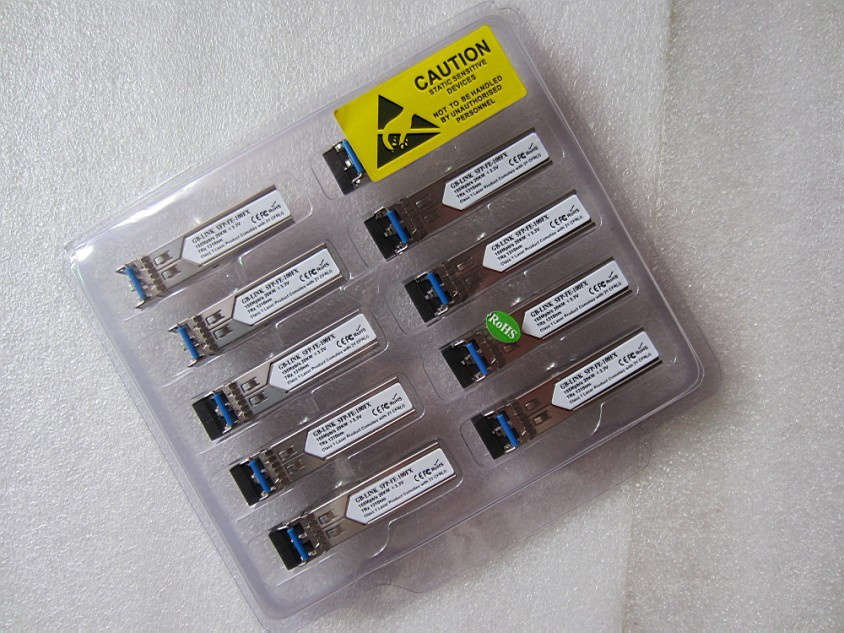

3.Before shipment: Our sales would double check the order quantity,package and strength of cartons to avoid lost and damage
4.After shipment: Keep tracking shipping status and reporting to clients
5.Shipment: DHL,UPS,FEDEX,TNT,EMS,SEA,AIR
Any doubt about this mini Gbic,please leave me an inquiry or contact me directly.
