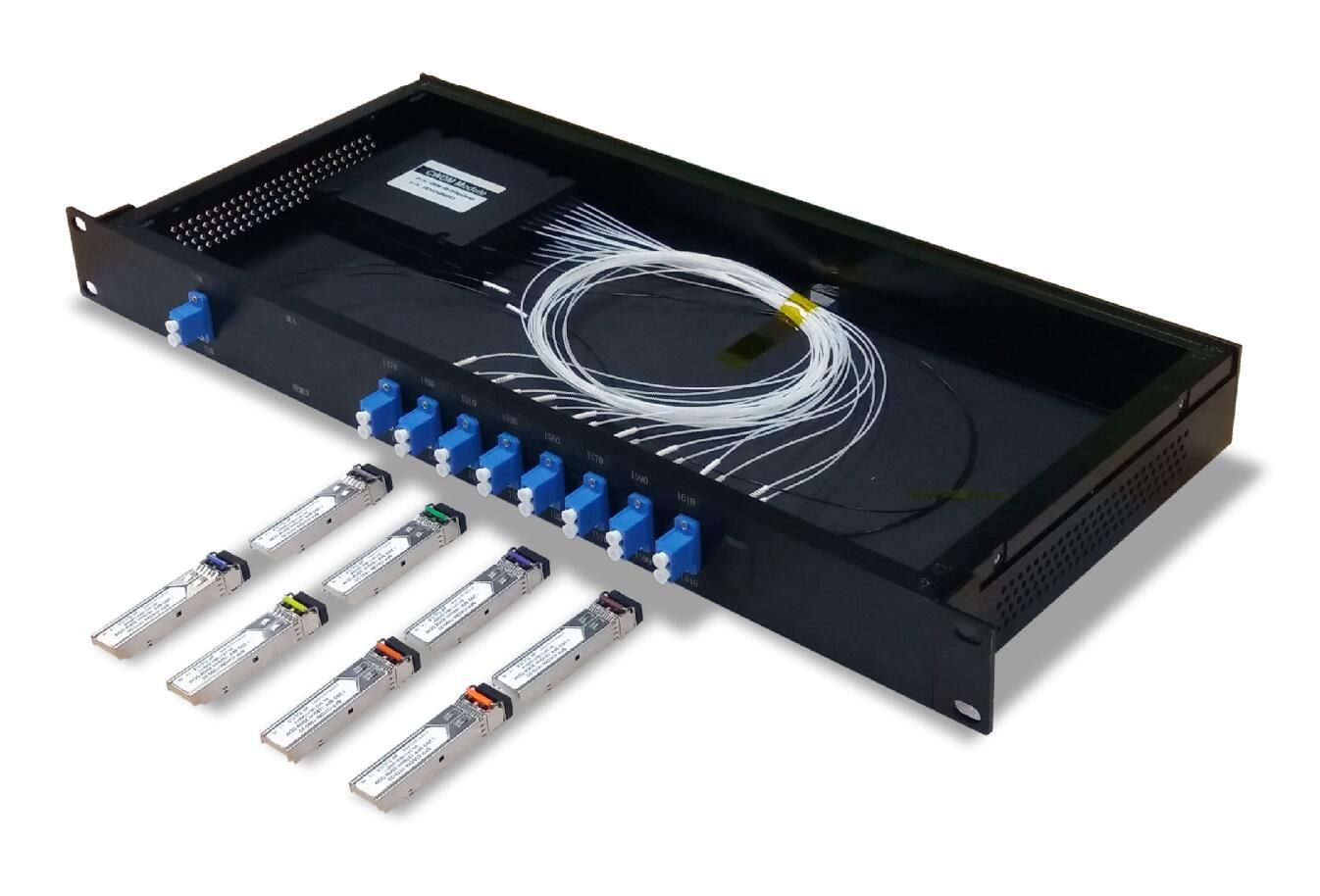

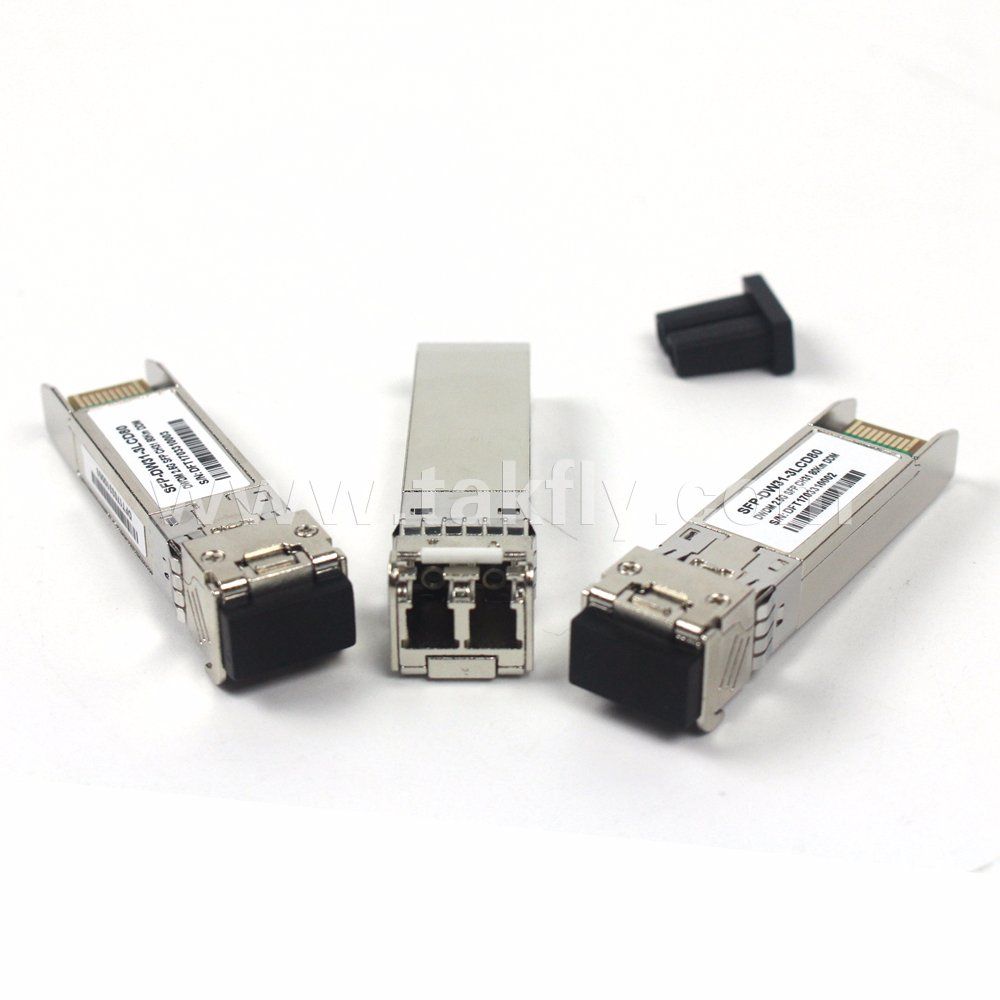

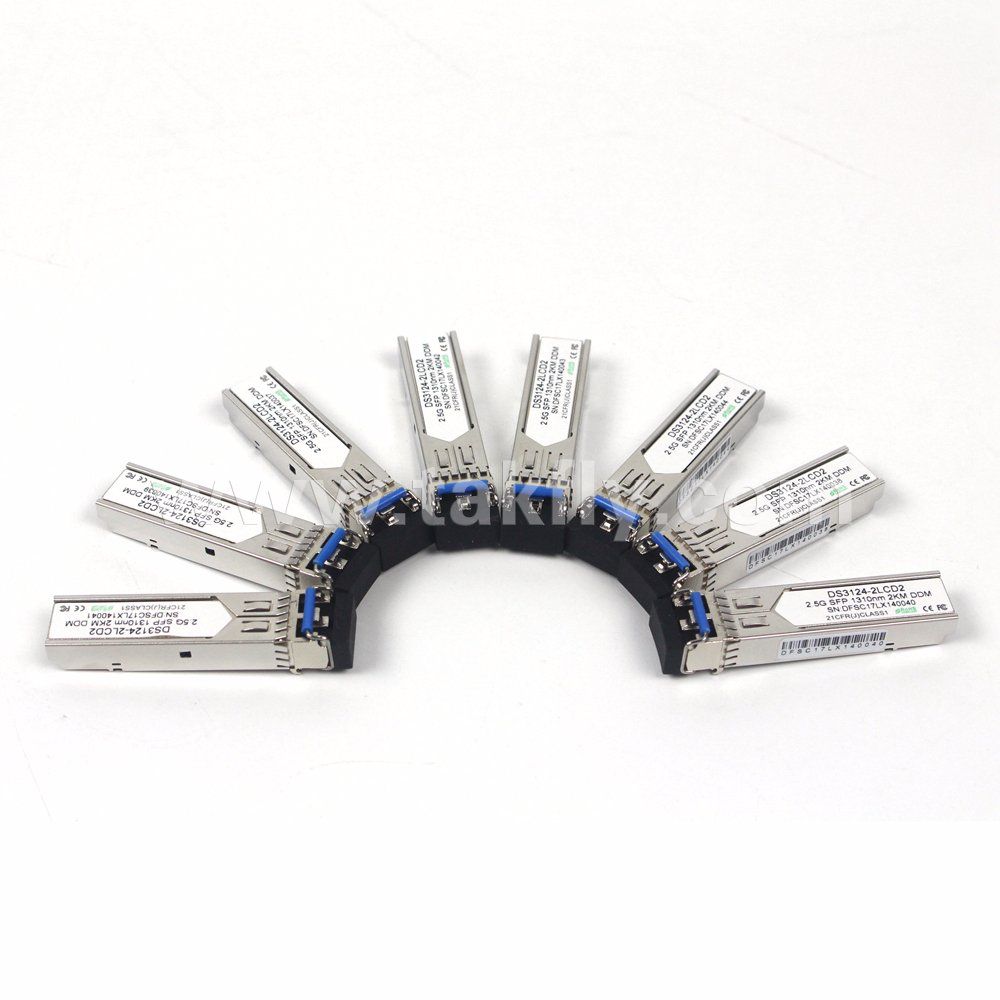

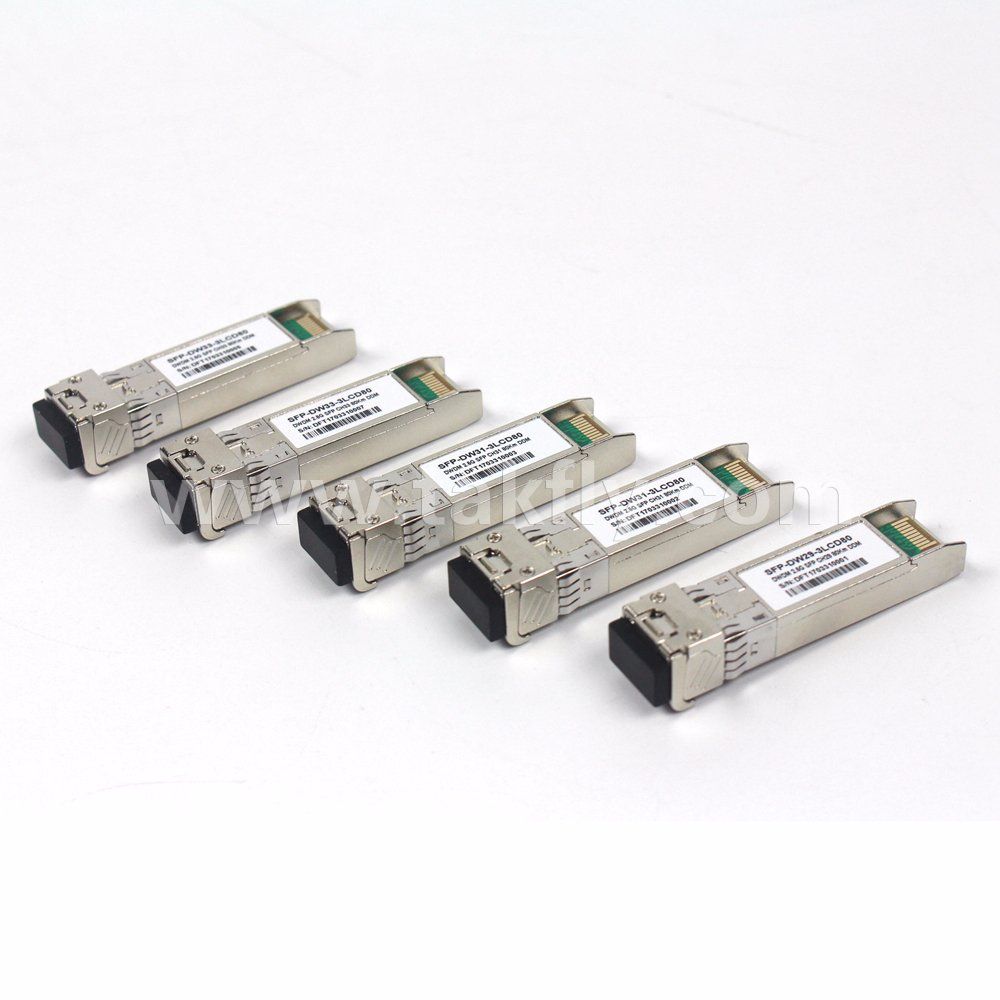

Customized CH29 CH33 10g SFP Optical Module DWDM
| Price: |
US $ 10-1000/Piece |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T,D/P,Western Union,Paypal |
| Prod Model: |
sfp dwdm |
| Item Name: |
DWDM SFP Optic Transceiver |
| Working Rate: |
1.25g,2.5g,10g or Customzied |
| Wave Length: |
1270-1610nm |
| Interface: |
LC |
| Compatible Brand: |
Cisco,Huawei,HP,Brocade,etc |
| Reach Distance: |
20,40,60,80 Is Available |
| Customzied: |
Available |
| Usage: |
Laptop |
| Type: |
Wired |
| Support Network: |
GSM |
| Information Content: |
Data |
| Certification: |
GS |
| Condition: |
New |
Product Description
Customized CH29 CH33 10g SFP Optical Module DWDMDWDM SFP - Dense Wavelength Division Multiplexing uses the C-Band(1530 nm-1560 nm) transmission window but with denser channel spacing. Channel plans vary, but a typical DWDM system would use 40 channels at 100 GHz spacing or 80 channels with 50 GHz spacing.DescriptionTakfly DWDM SFP Transceiver exhibits excellent wavelength stability, supporting operation at 100 GHz channel, cost effective module. It is designed for DWDM SONET/ SDH, Gigabit Ethernet and Fiber- Channel applications. The transceiver consists of two sections: The transmitter section incorporates a colded DFB laser. And the receiver section consists of a APD photodiode integrated with a TIA. All modules satisfy class I laser safety requirements. Takfly DWDM SFP transceiver provides an enhanced monitoring interface, which allows real-time access to device operating parameters such as transceiver temperature, laser bias current, transmitted optical power, received optical power and transceiver supply voltage, laser temperature and TEC current.
Applications- SFP Transceivers for DWDM SONET/ SDH
- Ethernet IEEE 802.3ae
- Fiber Channel
Features- Wavelength selectable to C-band and L-band ITU-T grid wavelengths
- Suitable for use in 100GHz channel spacing DWDM systems
- DWDM SFP MSA Compliant
- Up to 2. 667Gb/s data rate
- Cold Start up Wavelength Compliance
- Low Power Dissipation <1.3W Maximum
- -5ºC to 70ºC Operating Case Temperature
- Diagnostic Performance Monitoring of module temperature, supply Voltages, laser bias current, transmit optical power, receive optical power, Laser temperature and TEC current
- Extended link budget with APD receiver technology
- OC48/STM-16 Long Reach 80km(1600 ps/nm), 120km(2400 ps/nm) Versions
- RoHS compliant and lead free
Ordering information| Part Number | Product Description |
| DF-XX24-08CD | DWDM, 1.25Gbps, 80km, -5ºC ~ +70ºC,With Digital Diagnostic Monitoring |
| DF-XX24-12CD | DWDM, 1.25Gbps, 120km, -5ºC ~ +70ºC,With Digital Diagnostic Monitoring |
| DF-XX48-08CD | DWDM, 2.5Gbps, 80km, -5ºC ~ +70ºC,With Digital Diagnostic Monitoring |
| DF-XX48-12CD | DWDM, 2.5Gbps, 120km, -5ºC ~ +70ºC,With Digital Diagnostic Monitoring |
| DF-XXMR-12CD | DWDM, Multi-rate, 120km, -5ºC ~ +70ºC,With Digital Diagnostic Monitoring |
XX=17~61 (ITU Channel C-band)
62~16(ITU Channel L-band) |
Why choose Takfly1.High efficiency,with more than 3000 square meters size & 150+ professional workers can finish your order within a week
2.Quality assurance,we are a factory strictly operating ISO 9001:2008 quality control system,twice check before delivery
3.Competitve price.As a factory,costs are controllable
4.Flexible payment term.T/T,L/C,paypal is availble
5.Professional,Our workers are at least 3 years experience in fiber optic fields,besides,we cooperated with Electroson,Telefonica,etc
6.Complete product range, products cover fiber optic cable,
Fiber optic adapter,attenuators,full total FTTH solution.
Would you like some sfp dwdm sample to test,please leave me an inquiry or contact me directly.
