Dali Dimmable 80W LED Driver with EU Plug

Name: Dali Dimmable 80W LED Driver with EU Plug
Brand: all-electronics-online.com
SKU: 828308285
Availability: InStock
Rating: 4.6 (139 reviews)

Price:	US $ 22-24/Piece
Min Order:	5/Piece
Pay Type:	T/T,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	HC-80DA
Product Name:	Dali Dimmable 80W LED Driver
Output:	Constant Current
Cover Material:	Plastic
Color:	White
Power Factor:	0.95
Dimming Manner:	Dali Digital Dimming
Dimming Range:	5%-100%
IP Degree:	IP44
Suit For:	LED Downlight, LED Panel Light
Protection:	Short Circuit
Usage:	Light
Output Type:	Single
Driving Method:	LED Constant Current
Circuit Structure:	Electronic Step-down Transformer
Certification:	SAA ETL
Pack Sealing Size:	White Box
Brand:	Sunred

Product Description

Dali dimmable 80w led driver with EU PLUG
Max output 80Watt, Constant current output
Compatible with IEC62386
Drivers are with EMC LVD ROHS SAA TUV ETL certificate
Suit for led downlight, led panel light and so on

Input voltage:110/240VAC
Output voltage:(30/40/60)*0.5VDC
Output current: 2300/2000/1350ma (can be made according to your light)

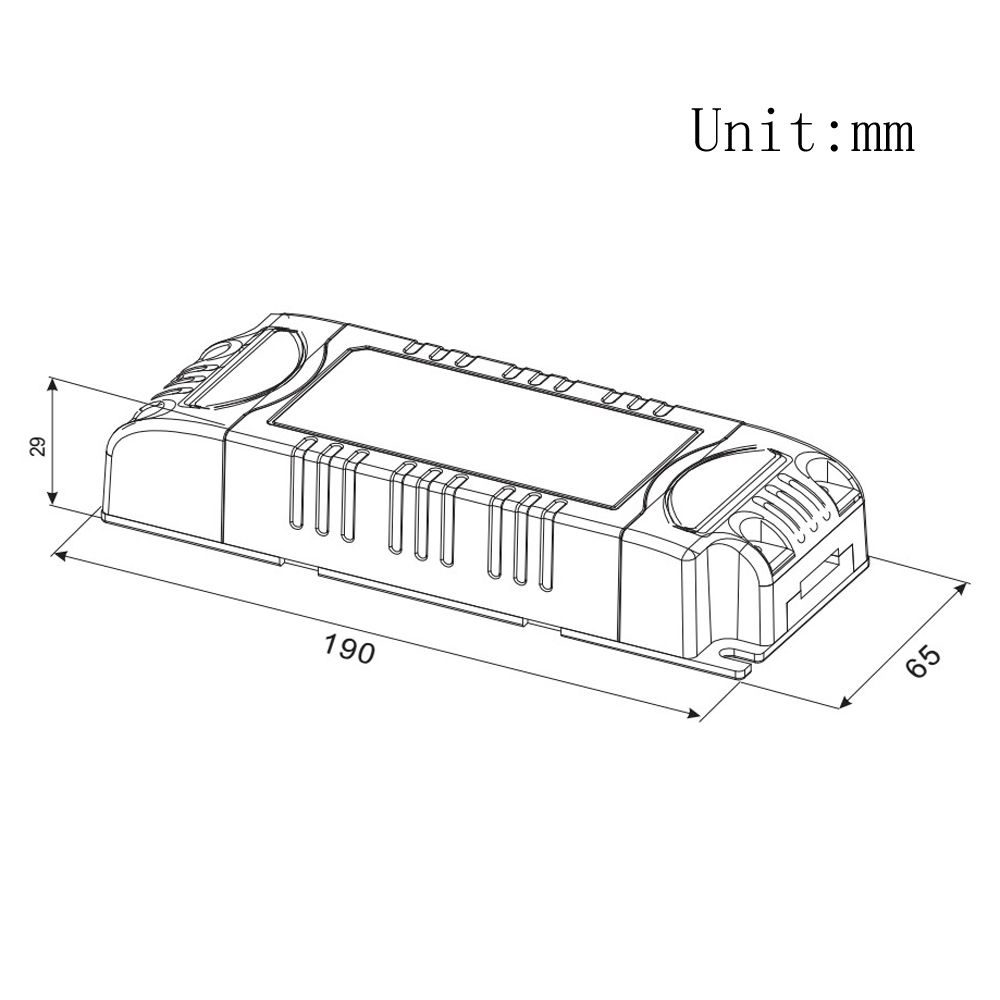

Size:190*65*29mm
PFC>0.95
Efficiency> 85%

More pictures for your reference:

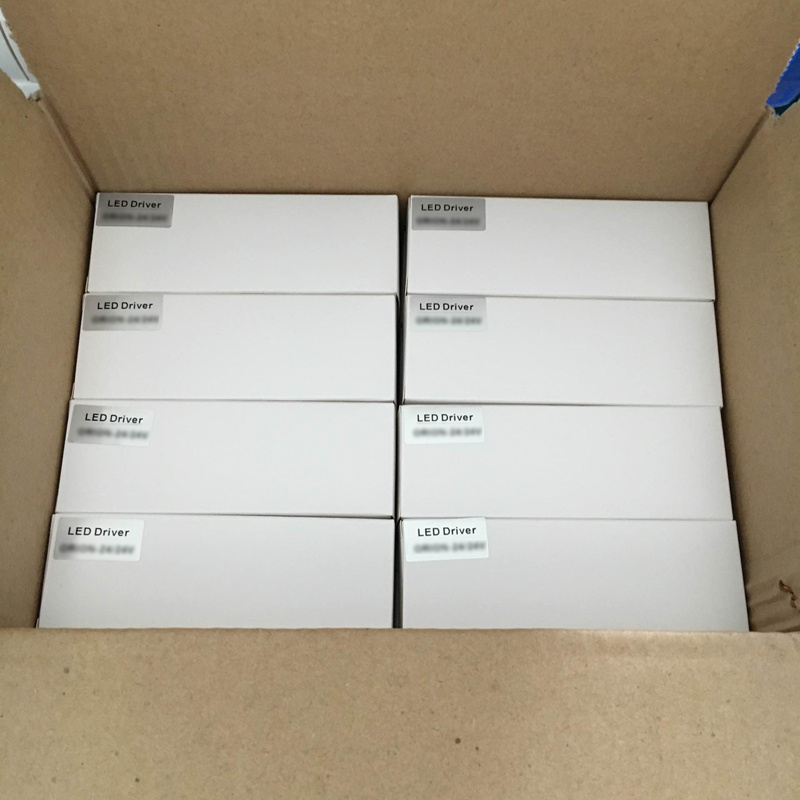

White box packing:
28pcs/carton, gross weight:13kg, size: 38*27*27cm

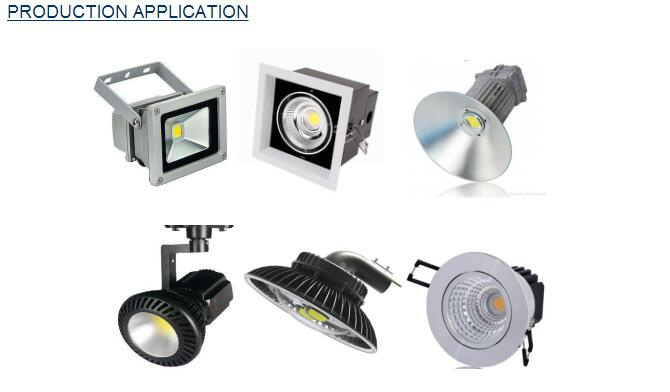

Application: The dali dimming led driver widely used on spot light, downlight, panel light, led street light, led highbay light etc.

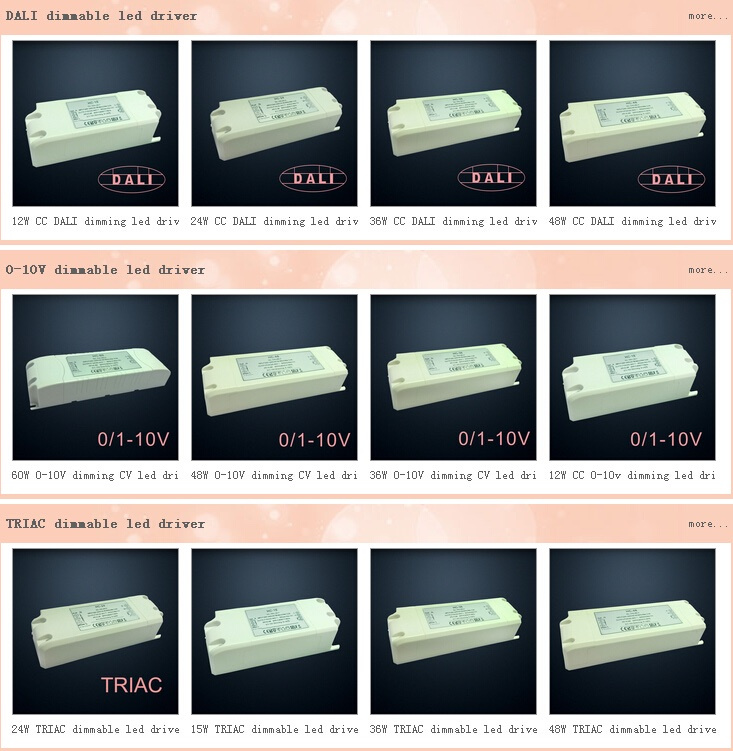

Products we can offer:
DALI DIMMABLE LED DRIVER 5W TO 300W
TRIAC DIMMABLE LED DRIVER 5W TO 200W
0-10V DIMMABLE LED DRIVER 5W TO 240V
Waterproof led driver up to 400w

SUNRED LED Co., Limited!

We are LED driver manufacturer and LED car lighting trader located in Shenzhen, China

Which established in 2017.

Our main products are

0-10V/PWM dimmable drivers.

TRIAC dimmable LED driver,

DALI dimmable LED driver

IP67 Waterproof LED power supply

Low voltage LED transformer

LED car lighting

We have many good partners and suppliers, all of our products are with certificates,

CE EMC LVD TUV for Europ and SAA for Australia, For America market we have ETL UL certificates.

Also we can offer you good price, acceptable lead time and excellent after sale service.

Sunred LED, this young and flexible company will keep the innovation and honest in heart. To built a long good and mutual business relationship with you. Always fighting to prop the hope of green and lighten the future of the world.
