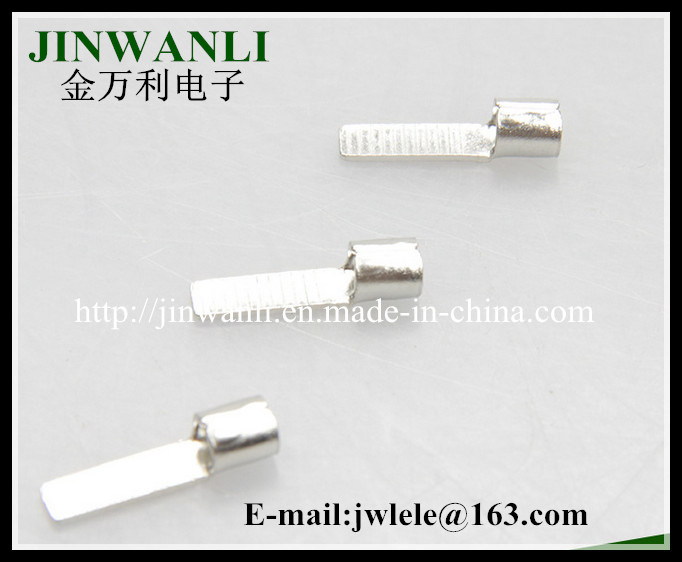

Dbn Non-Insulated Electrical Blade Bare Copper Naked Terminals with Chip-Shaped

Name: Dbn Non-Insulated Electrical Blade Bare Copper Naked Terminals with Chip-Shaped
Brand: all-electronics-online.com
SKU: 767946025
Availability: InStock
Rating: 4.7 (23 reviews)

Price:	US $ 0.01/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	10000/Piece
Pay Type:	L/C,T/T,Paypal,Western Union

Contact Supplier

Showroom Product Company Profile

Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Material:	Copper
Application:	Transmission of Electrical Signals
Shape:	Dbn
Brand:	Jwl

Product Description

Specifications
Terminal wire connector
1.Made by high purity copper
2.Tin plating:Corrosion Resistance
3.Certificate:ISO9001 SGS CE CQC    wire connector
4.Easy to connect with electrical wire and strengthen its reliability    electrical terminals
5.Type:DBN crimp terminal
6.Thickness:0.7mm 0.8mm 1.0mm    electrical connectors and terminals

ead section: 0.5~1.5mm2(A.W.G: 22~16) Imax=19A material: pure copper thickness:0.75mm
Item NO	dimension(mm)
Item NO	B	L	F	H	Dφ	dφ
DBN 1.25-9	2.8	13.8	9	4.8	3.4	1.7
DBN 1.25-10	2.3	14.8	10
DBN 1.25-11	3	15.8	11
DBN 1.25-13	3	17.8	13
DBN 1.25-14	2.4	18.8	14
DBN 1.25-14L	3	18.8	14
DBN 1.25-18S	2	22.8	18
DBN 1.25-18	2.2	22.8	18
lead section: 1.5~2.5mm2(A.W.G:16~14) Imax=27A material: pure copper thickness: 0.8mm
Item NO	dimension(mm)
Item NO	B	L	F	H	Dφ	dφ
DBN 2-9	2.8	13.8	9	4.8	4.1	2.3
DBN 2-10	2.4	14.8	10
DBN 2-13	2.4	17.8	13
DBN 2-13L	3	17.8	13
DBN 2-14	2.4	18.8	14
DBN 2-14L	3	18.8	14
DBN 2-18	2.2	22.8	18
DBN 2-18L	2.8	22.8	18
lead section: 4~6mm2(A.W.G:12~10) Imax=48A material: pure copper thickness: 1.0mm
Item NO	dimension(mm)
Item NO	B	L	F	H	Dφ	dφ
DBN 5.5-10	2.8	16	10	6	5.6	3.4
DBN 5.5-14S	4	20	14
DBN 5.5-14	4.5	20	14
DBN 5.5-18S	2	24	18
DBN 5.5-18	4.5	24	18
lead section: 6~10mm2(A.W.G.8) Imax=62A material:pure copper thickness:1.2mm
Item NO	dimension(mm)
Item NO	B	L	F	H	Dφ	dφ
DBN 8-14	5	22.5	14	8.5	7.2	4.5
lead section: 10~14mm2(A.W.G: 6) Imax=88A material:pure copper thickness:1.4mm
Item NO	dimension(mm)
Item NO	B	L	F	H	Dφ	dφ
DBN 14-16	6	30.6	16	14	9	6.5
