| Prod Model: |
DC-ONE |
| Carrier Frequency: |
UHF610~920MHz |
| Channel Numbers: |
Dual Channels |
| Power Supply: |
DC 12V~16V 10W |
| Continuous Working Hours: |
12hours |
| Oscillation Mode: |
Pll Integrated Control |
| Working Distance: |
100m |
| Cartridge Type: |
Dynamic |
| Sensitivity: |
12dB (80DBS/N) |
| Sensitivity Adjustable Range: |
12-32dB |
| Spurious Suppression: |
>=75dB |
| Style: |
Handheld Microphone |
| Application: |
Amplify |
| Signal Transmission: |
Wireless |
| Directivity: |
Omni-direction |
| Sound Channel: |
Stereo |
| Transducer Principle: |
Electrodynamic Microphone |
| Sound Field Force: |
Pressure Differential Type |
| Connector(',s): |
XLR 3 Pin |
| Wireless Technology: |
UHF |
| Output Impedance: |
1000-20000Ω |
Product Description

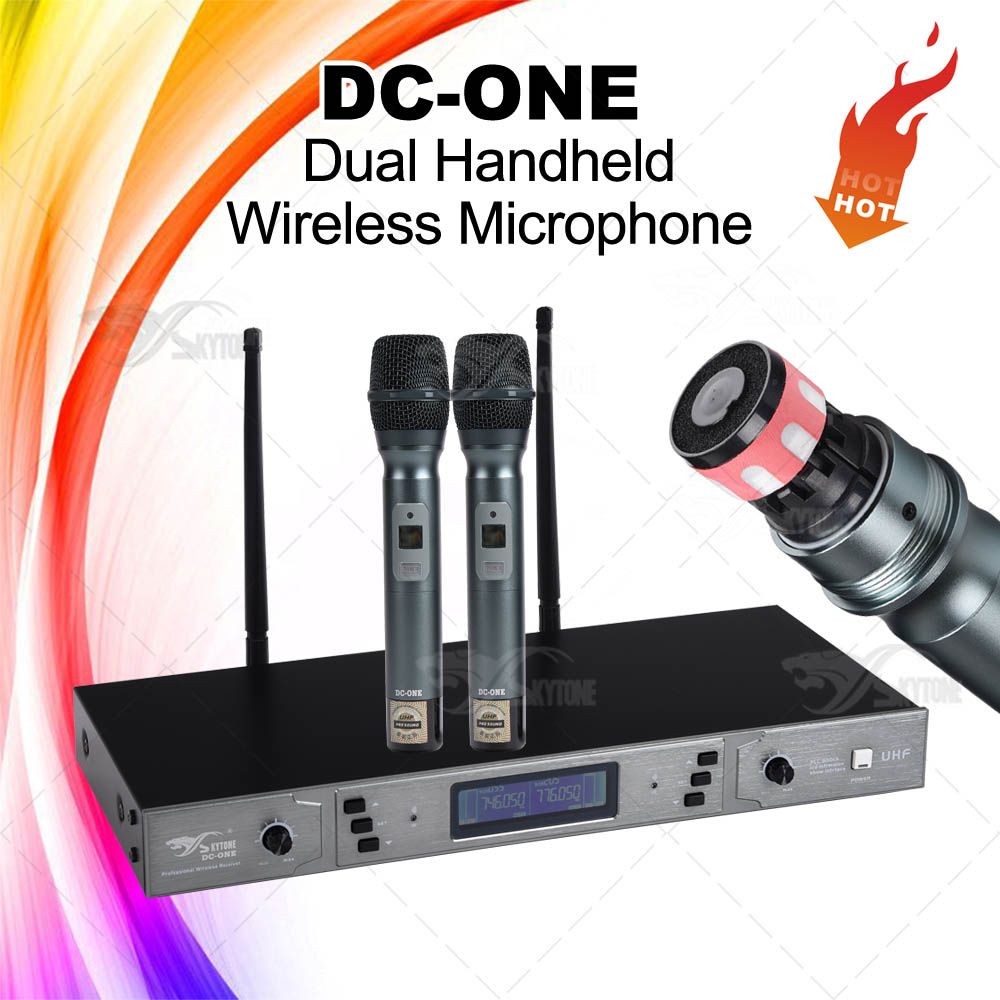

DC-ONE Cheap Professional UHF Wireless Karaoke Microphone
740-790MHz
Why choose skytone audio company?
1. Professional audio buisness in China since 2004
2. Factory direct sale,more discount less cost.
3. Professional research department and engineer provide the best quality.
4. Offer reliable after -sale service.
5. Professional sales to serve for you.
DC-ONE Professional UHF Wireless Microphone Features:1.Using New designed EIA international standard 1U metal case.
2.LCD display, display working channels or frequency,RF AF signal strength at real-time. Transimitter batteries are convenience for debugging and testing.
3.Super wide frequency(UHF 610~920MHz), selecting frequency automatic, infrared automatic frequency fuction, transimitter can be locked the preset channel of receiver exactly once press SYNC.
4.Stable PLL oscillation circuit, matched with noise detection, mute control fuctions, which can prevent noisy from computer, song machine, DVD ect.
5.Dual channels preset 32 groups noninterference frequency points, total 4 channels frequency range which provide 128 groups frequency points for users selection.
6.120MHz wide frequency transimitter, 4 different frequencies machines can be mutual used optional, which convenience for adjustment and management.
7.Organizing into groups quickly, multi machines can be used at the same time, easy setup.

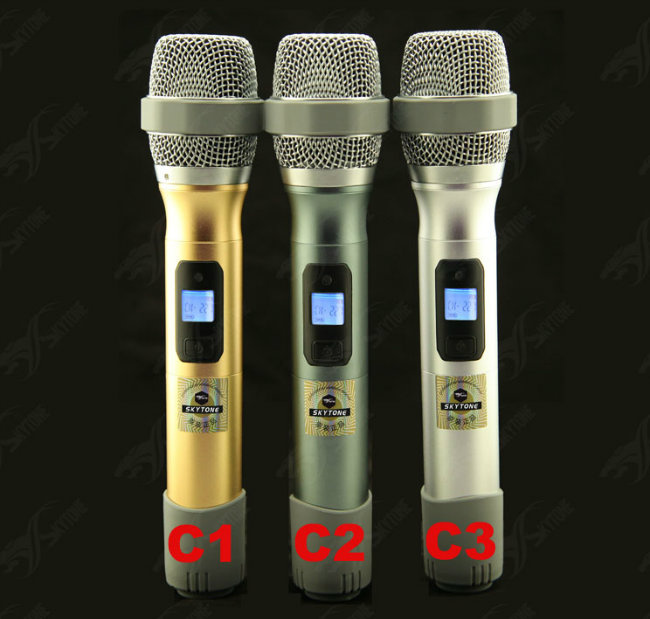

8.Working distance: 100M(Open space)There are 3 colors available for customers:
Skytone DC-ONE Professional Karaoke Microphone specifications:| Receiver specs: |
| Receiver mode: | Secondary superheterodyne |
| Wireless connector: | BNC/50 ohm |
| Sensitivity: | 12dBμv(80dBS/N) |
| Sensitivity adjustable range : | 12-32dBμv |
| Spurious suppression : | >=75dB |
| Maximum output level : | +10dBV |
| Transmitter specs: |
| Antenna program: | lavalier comes with 1/4 wave whip, handheld built-in helix antenna |
| Output power: | 3mW~30mW |
| Spurious suppression: | -60dB |
| Power supply: | AA*2 |
Photos:
A full set of DC-ONE including following items:

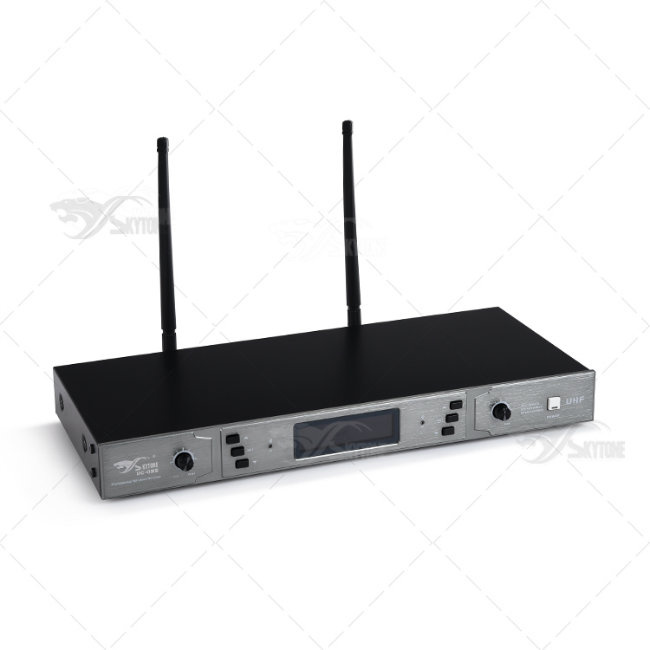

# 1 X Receiver

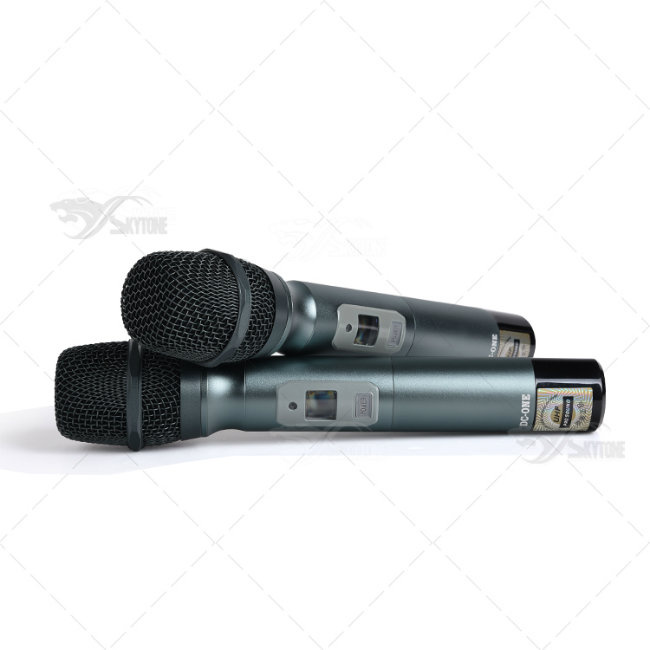

# 2 X Handheld wireless microphone transmitter
# 2 X Wave antennas
# 1 X Power supply
# 2 X Rackmount kit
# 1 X 1/4" to 1/4" cable
# 2 X Rubber antiskid ring
# 2 X Rubber handheld tail pipe cover
# 2 X AA battaries( Shipping by air without)# 1 X Carton case
Package and Shipping:1. Package
# carton case
# Aluminum case (Optional)
# Install in flight case(Optional)
2. Shipping
Various of shipping ways are available depending on customers needs.
# Shipping by air cargo to customer's nearest airport.
# Shipping by courier (door to door), such as TNT,DHL,UPS,Fedex and so on.
# Shipping by sea to your nearest port.

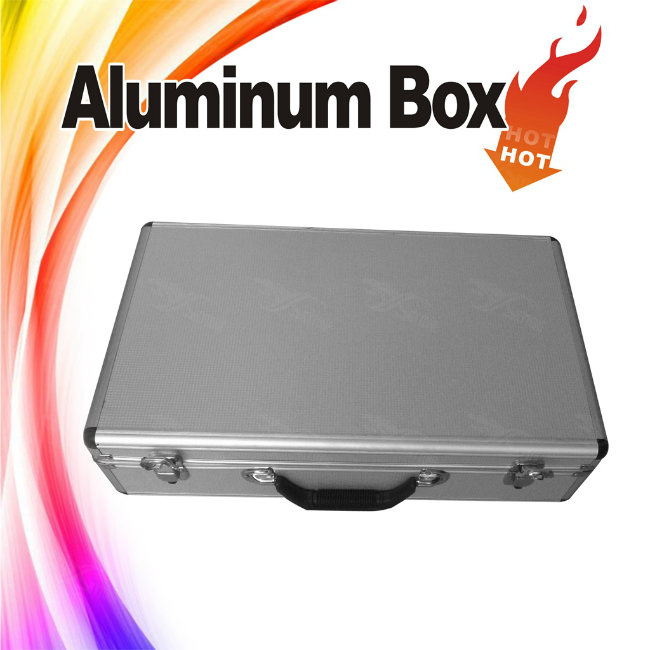

# Shipping to customers forwarder's warehouseRelevant reommendation:Aluminum case----Cheap price, beauty
One aluminum case fill in 1 sets DC-one wireless microphone
FAQ:
1.How about your lead time?
After confirming received your deposit, for bulk order, need 25-30 days; for stock goods, only need 3-7 working days!
2.Can I get sample to test first?
You can buy one sample, and the sample price should add 7% based on our price list.
when next time you have bulk order, we will refund you the price difference.
Warmly tips:
Kindly check the frequency range(740-790MHz) is working in your personal country or not.
Any questions about the product, please contact us.
