| Prod Model: |
I-tech 4x3500 |
| Amplifier Type: |
Digital High Power Amplifier |
| Frequency Response: |
20Hz-20kHz |
| Power Handling: |
3500watts |
| Sensitivity(1W/1m): |
0.775V |
| Channels Number: |
4 |
| Power Voltage: |
AC220V or AC110V |
| Power Plug: |
European, American, Asia or Customise |
| Warranty: |
3 Years |
| Input Link: |
XLR |
| Output Link: |
Speakon |
| Type: |
Professional Amplifier |
| Used For: |
Professional |
| Tube Type: |
Transistor Amplifier |
| Function: |
Post Amplifier |
| Voltage: |
AC 220V |
| Element Number: |
Push-Pull Amplifier |
| Usage: |
Professional Performance |
| Output Number: |
2 |
| Sound Channel: |
2 |
| Conductive Mode: |
HD |
Product Description
Why choose skytone audio?
1. Quality is our culture.
2. With us your money in safe, your business in safe.
3. Providing with exceptional service, saving your time and money.
4. One of market leader for audio business since 2004.
5. Direct factory provides you factory price, no middle man.

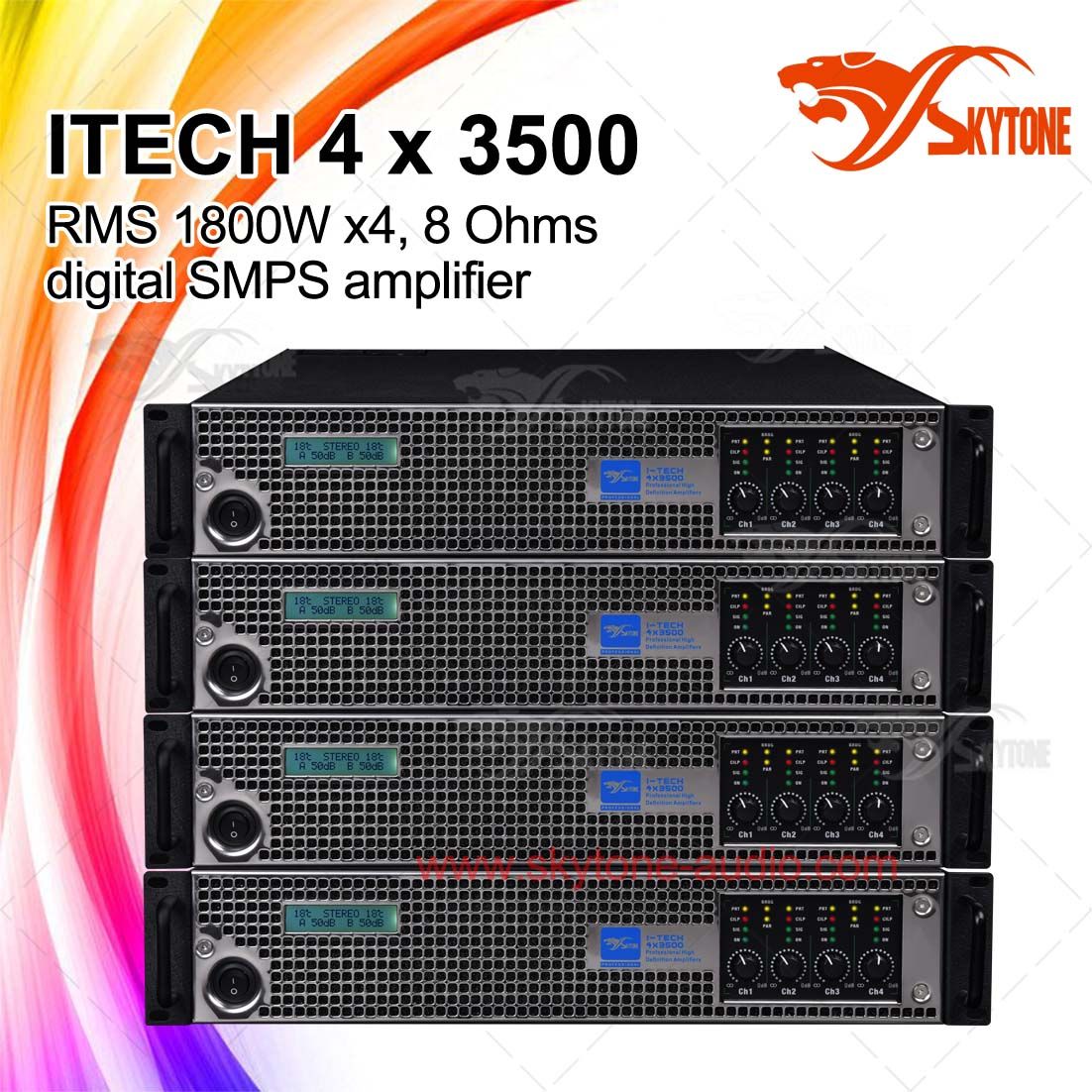

I-tech 4x3500 high power amplifier:This series amplifier is the new designed amplifier of Skytone audio, it's switch power supply digital ammplifier, lightweight with high performance, more efficient than transformer power amplifier.
Skytone 12 years experience provide you professional products and service. DJ Power AmplifierFeatures:1. LCD display: Can help you to check the amplifier temperature and how long time used.
2. Filtering power plug: Connecting wireless microphone, mixer, processor ect, have filtering function.
3. Cables: Using Polytetrafluoroethene(PTFE) cables, high temperature, resistance heavy current, Non- Oxidation for long time using.
4.Using Advanced Welding Procedure,preventing oxidation and poor connect, fuse for preventing DC overload
5.JICON large volume capacitor from listed state-owned enterprise, wide frequency
6.powerful in low frequency, the delicate mid-high frequency highlights the appealing wide-range of frequency
7.Intelligent fans: dust-removing while powered on, the fans smoothly start working when temperature reaching 40 degrees , / silent mode at normal times to prolong the service life.
High power extreme audio amplifier specifications:| Technical Specification | I-tech
18000HD | I-tech
4x2500 | I-tech
4x3500 |
Rated power
(20Hz-20KHz) | 2 ohms Stereo | 4320W * 2 | 3120W * 4 | 4200W * 4 |
| 4 ohms Stereo | 3600W * 2 | 2500W * 4 | 3500W * 4 |
| 8 ohms Stereo | 1800W * 2 | 1300W * 4 | 1800W * 4 |
| safe protection | Dc protection | √ |
| Short circuit protection | √ |
| Sensitivity overheating management system | √ |
| Overheat Protection | √ |
| Input Overload Protection | √ |
| Output Overload Protection | √ |
| Soft start protection | √ |
| Limiting protection | √ |
| Output Overload Protection | √ |
| Frequency Response(1W 8ohms) | 20Hz-20KHz(±3dB) |
| Sensitivity(8ohms 1KHz) | 0.775v | 0.775v | 0.775v |
| Link | Input link | XLR | XLR | XLR |
| Output link | SPEAKON | SPEAKON | SPEAKON |
| Damping Factor (1KHz&8ohms) | 500 |
| Conversion rate | ≥25V/µs |
| Output circuit type | Class HD |
| Installation space | 2U |
| Cooling system | intelligent system,automatic adjustment
according to changing temperature |
| Size | 60cm*63cm*15cm |
| Net Weight | 13.2kg | 13.2kg | 13.2kg |
| Gross Weight | 17kg | 17kg | 17kg |
| After-sales service | 3 years Warranty (non artificial Damage) |
I-tech dj power amplifier product details:
Details informations for the audio power amplifier componments:1.Pure copper , high-power output inductor :
Function:Ensure output having a large dynamic range
2.High-class French Thomson feedback capacitor
Function:It is important for the subtleness and width of mid-high frequency .
3.Original On Semi compound zener-transistor
Function: stabilized voltage power-supply of preceding stage
4.ELNA DUOREX RJH hifi capacitor (purple body with gold letter, transparent sound, moderate speed,low distortion, high resolution)
Function: stabilized voltage power-supply filtering of preceding stage
5.Original America ADI OP275G op-amp
Function: preceding stage amplification
6.Panasonic Output Relay
Function:Boot with mute protection, DC protection
7.Philips safety capacitor
Function:To prevent the self-excitation caused by long distance audio cable transmission
8.Taiwan X2 safety capacitor
Function: To prevent interference from electricity clutters
9. high-power soft boot NTC
Function: To Prevent the boot impact upon power grid
10. The whole machine all adopts pure copper cables with PTFE (Polytetrafluoroethylene) Insulationofacable
Function: Heat-resistance, strong current-resistance, Long-time oxidation-resistance Skytone I tech dj power amplifier will provide you:
1.Fantastic nice sound quality
2.Workable price
3.3-year warranty
Certification of SKYONE AUDIO AMPLIFIER:EMC+LVD+ROHS
Skytone audio amplifier provide following protection:1. Soft start protection
2. Short circuit protection
3. DC protection
4. Limiting protection
5. Overheat protection
6. Input overload protection
7. Output overload protection
8. Output fading production
Customer feedback:
Package1.One power amplifier fill in one carton case.
2.Rack case, based on your quantity requirements.
Shipping
1. Sample order for shipping via DHL/FEDEX/UPS/TNT/EMS.
2. Large order for shipping by sea or air.
3. Sending to customise forwarder warehouse.Important Notification:
No. 1
Skytone Audio will attend 2017 Guangzhou Entertainment Technology Show (GET Show), we will display new line array , amplifier and other high-end pro sound equipment, warmly welcome you to visit us.
Date: Feb.27 -Mar.2, 2017
Add.: Guangzhou Pazhou Poly World Trade Center
Booth: Hall 3, 3A-06
GET show website: www.getshow.com.cn
No. 2
Skytone Audio China New Year(Spring Festival) Holiday:
Jan. 18th -Feb. 7th.
During this time we are not working.
So if you need to order, please pay attention to the time.
Welcome to visit our company website for more item options:http://www.skytone-audio.cn
Guangzhou Skytone Audio Co., Limited, was founded in 2004. Our office is located in the beautiful, bustling Guangzhou City, in Yilong Industrial Zone, Baiyun District, near Baiyun Lake, with 1000 square meters company.
And our factory is located in Panyu district, Guangzhou city with more than 2000 square meters.
Skytone is White hair in PRO Audio business. We are specialized in professional loudspeakers, karaoke speakers, amplifiers and other audio peripheral such as microphone, mixer, equalizer, compressor, ect.
Quality is Skytone's culture. Our company gains a good reputation with good management mechanism, advanced technology, strong force of R&D, excellent quality and perfect after-sales services. There are many departments in our company including R&D, engineering, production, marketing, after-sales services and personnel.
To meet market developments and customers' needs, our company will continue to improve the product structure, operational management, as well as comprehensive quality of the staff. With brand-new products, vigorous power and stable paces, we will work hand-in-hand with customers home and abroad to create brilliant future!
Making your world sound better!
