DC to AC off Grid Solar Power Inverter Low Frequency Inverter 300W 500W 1000W for Solar Power System

Name: DC to AC off Grid Solar Power Inverter Low Frequency Inverter 300W 500W 1000W for Solar Power System
Brand: all-electronics-online.com
SKU: 810940195
Availability: InStock
Rating: 4.3 (60 reviews)

Price:	US $ 48-426/Piece
Min Order:	5/Piece
Pay Type:	L/C,T/T,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	FT-B300W~1000W
Product:	Low Frequency Inverter 300W 500W 1000W
Brand:	Snat
Inverter Rated Power:	300W~6000W
Input Voltage:	12V/24V/48V/96V
Work Time:	Supply Power Day and Night with Battery
Output Voltage:	110V/220V+-5%
Sample Order:	Accept
Display:	LCD/LED
Application:	Home, Industrial and Commercial Use
Export Markets:	Global

Product Description

DC to AC Off Grid Solar Power Inverter Low Frequency Inverter 300W 500W 1000W for Solar Power System

PRODUCT OVERVIEW

Wirh or double MCUs,the product provides different charge voltage and charge currents to realize charge management for batteries of different types ,its mains supply preferred mode ,energy-saving mode and battery preferred mode are all settable,thus making it easy to meet the different application need of users,it has an LCD,it is widely applied to families ,schools,street,frontier defense,pasturing area ,industrial equipment,satellite communication equipment ,military vehicle-borne equipment ,ambulances,police cars,ship ,etc

MAIN FEATURES

Excellect performance because of double-MCU intelligent design;
Pure sine wave output for compatibility with loads of different types;

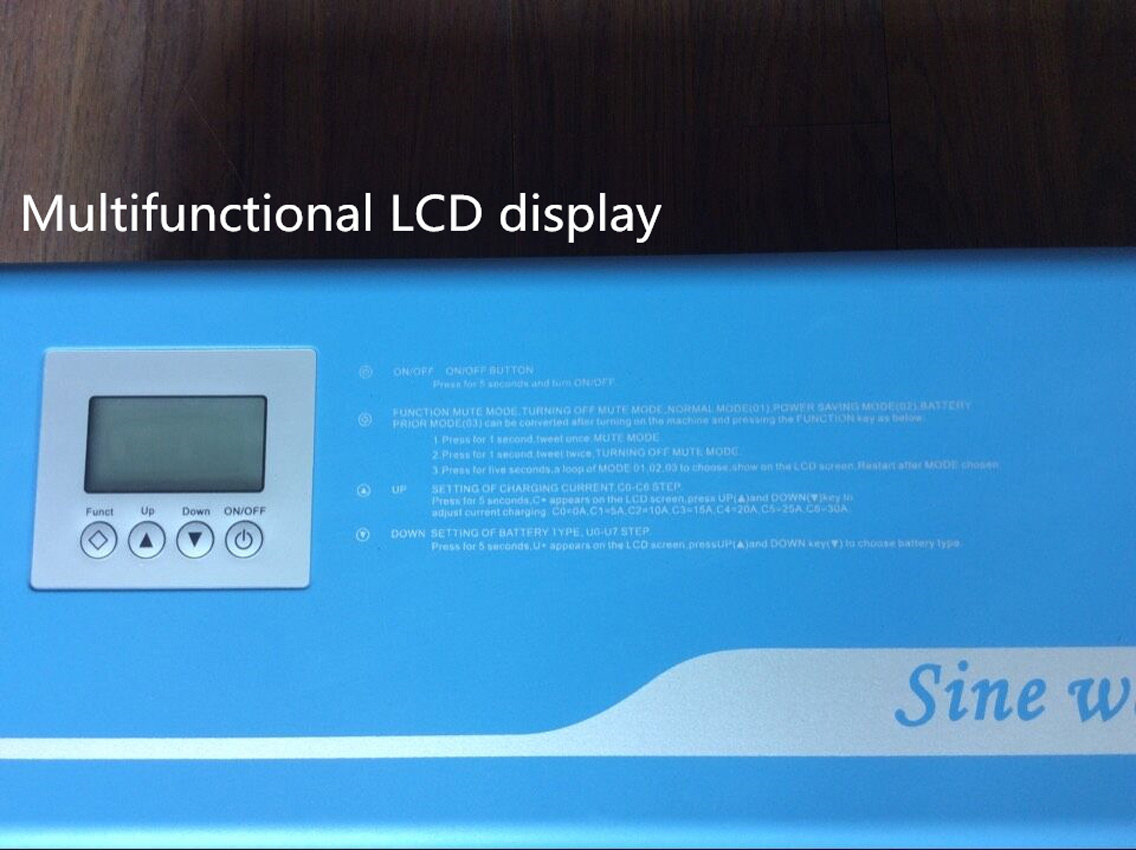

Visualization of operation status of the equipment through a digital LCD.
A wide range of input voltage,accurate output and full automatic voltage stabilization;
Settable battery type and charge current for charge management of batteries of different tpyes;
Settable mains supply preferred mode ,energy-saving mode and battery perferred mode for easy meeting of the need of different users;
Overall protection functions (battery overvoltage protection,battery undervoltage protection,overload protection ,short circuit protection and overtemperature protection).

TECHINICAL INDEXES

FT Series Inverter 03.KW~1KW

Type: FT		0.3KW	0.5kW	0.75kW	1kW
Rated power		300W	500W	750W	1000W
Battery	Rated voltage	12/24VDC
	Charge current	15A (default)
Input	Voltage range	85-138/170-275V AC
	Frequency	45-65Hz
Output	Voltage range	50/60Hz ±1% (inverter mode)
	Frequency	110/220V AC, ±5% (inverter mode)
	Output wave	Pure sine wave
	Switching time	<6ms (traditional load)
	Efficiency	>85% (80% resistance load)
	Overload	110-120%/30S, >160%/300ms
	Protection	Battery over voltage protection, battery under voltage protection, overload protection, short circuit protection, over temperature protection
Operating ambient temperature		0 to 40°C
Storage ambient temperature		-15 to 50°C
Operating/storage ambient		0-90% no condensation

FT Series Inverter 1KW~6KW

Model:FT		1KW	1.5KW	2KW	3KW	4KW	5KW	6KW
Rated power		1000W	1500W	2000W	3000W	4000W	5000W	6000W
Battery	Rated voltage	12VDC/24VDC/48VDC		24VDC/48VDC		48VDC/96VDC
	Charge current	30A(default)-C0-C6
	Battery type	U0-U7
Input	Voltage	85-138VAC/170-275VAC
	Frequency	45-65HZ
Output	Voltage	50/60HZ±1%(inversion mode)
	Frequency	110VAC/220VAC ±5%(inversion mode)
	Output waveform	Pure sine wave
	Conversion time	<10ms(typical load)
	Efficiency	>85%(85% resistive load)
	Overload	110-120%/30S;>160%/300ms
	Protection function	Battery overvoltage protection,battery undervoltage protection,overload protection ,short circuit protection,overtemperature protection,etc
Ambient temperature for operation		0-40ºC
Ambient temperature for storage		-15- +50ºC
Operation /storage conditions		0-90%(no condensation)
External dimensions		4890222182			655248182
Packing dimensions		560290235			735316235

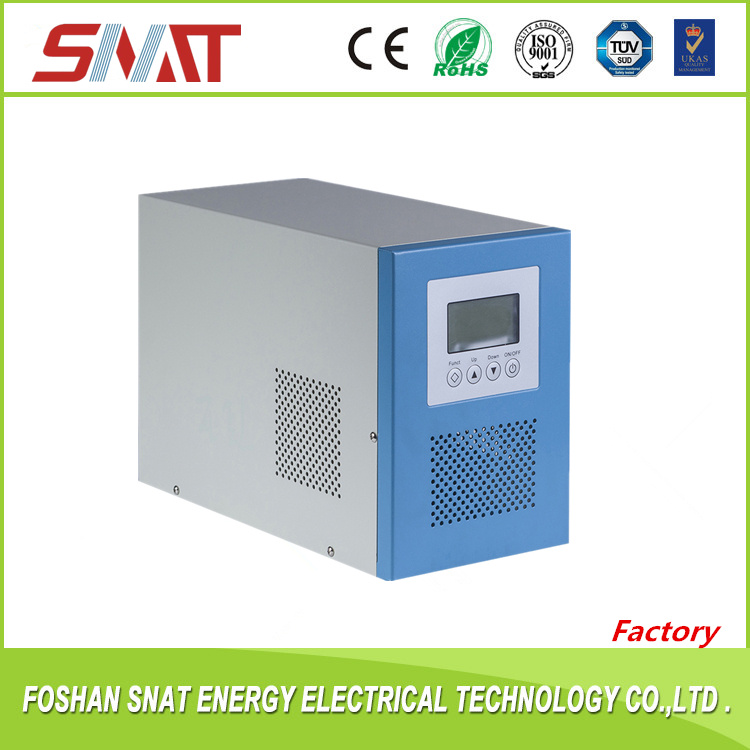

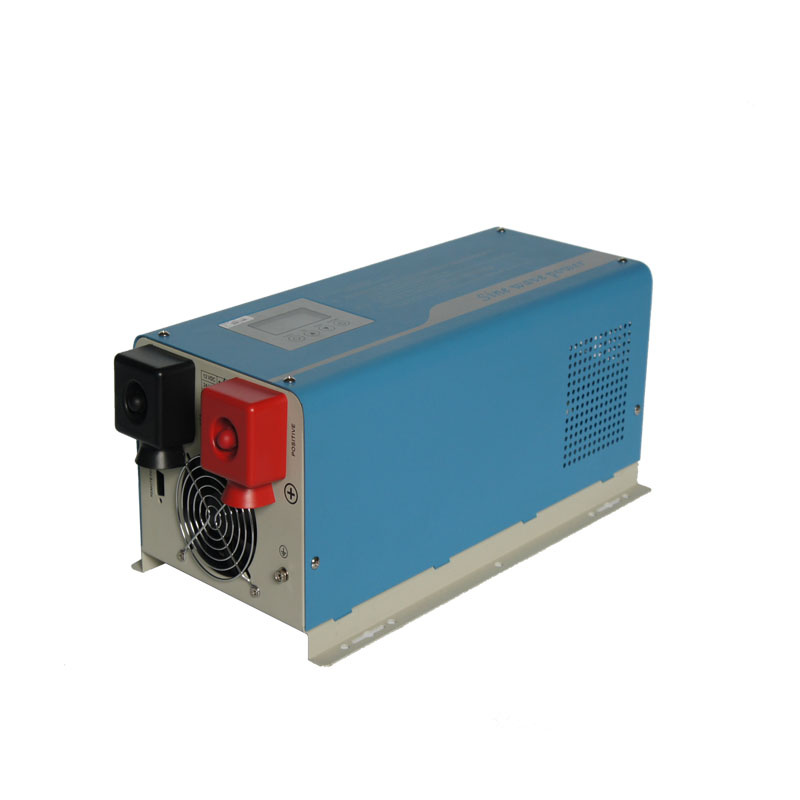

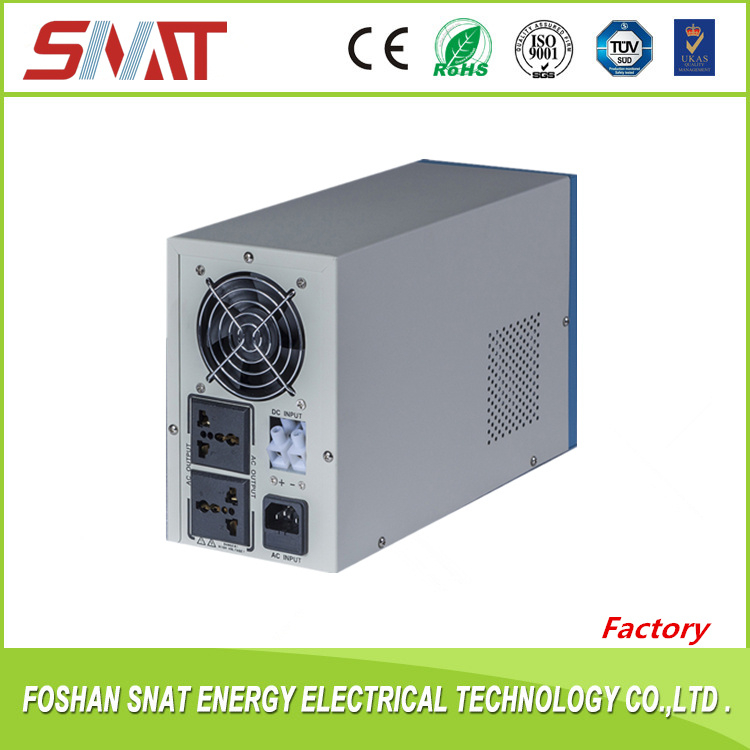

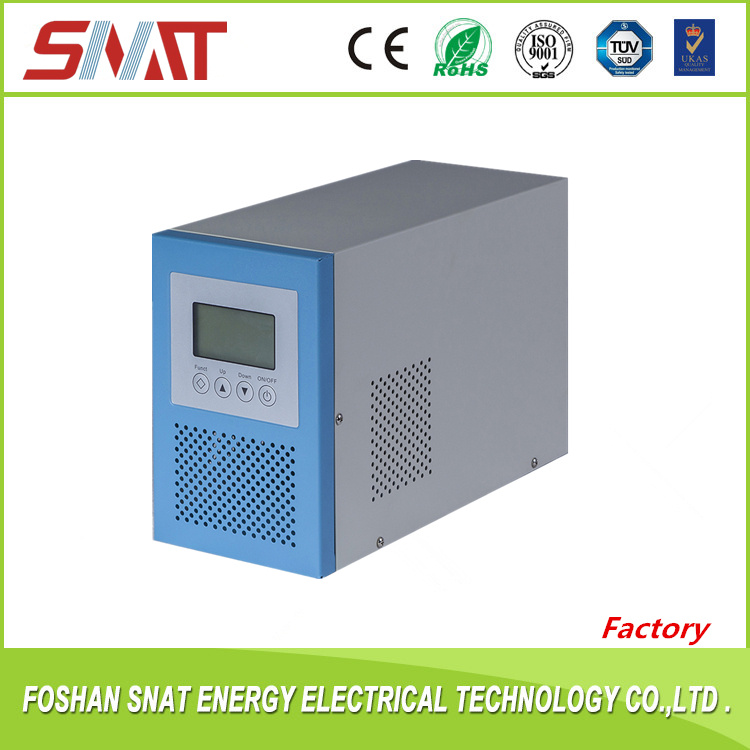

Products Show

Warranty:
Quality warranty for 1 year;Parts will be shipped for free during warranty period.

Delivery time:
Stick to contract.

Concurrently engaged in relative solar power system products such as solar panel, gel battery, sealed lead acid battery, Combiner box, etc.

Accept special design requirements.

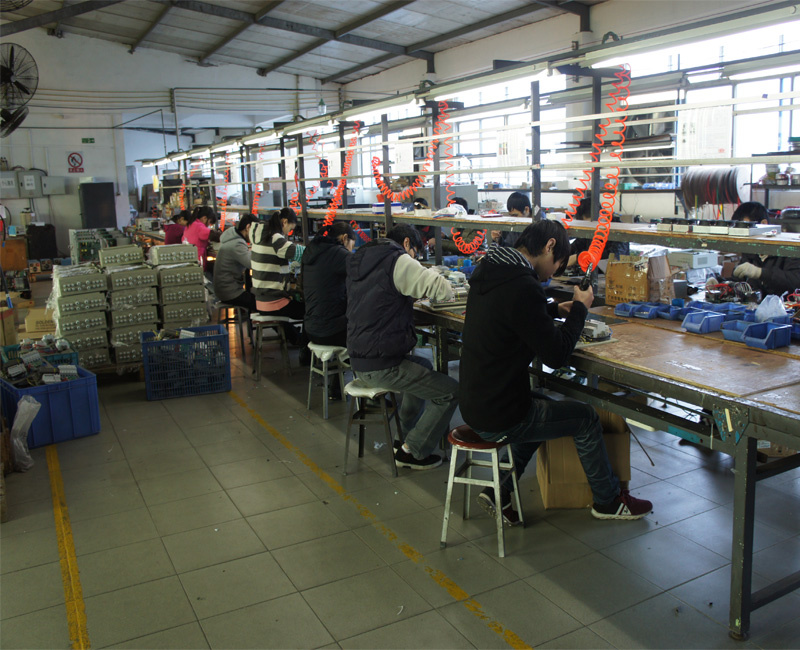

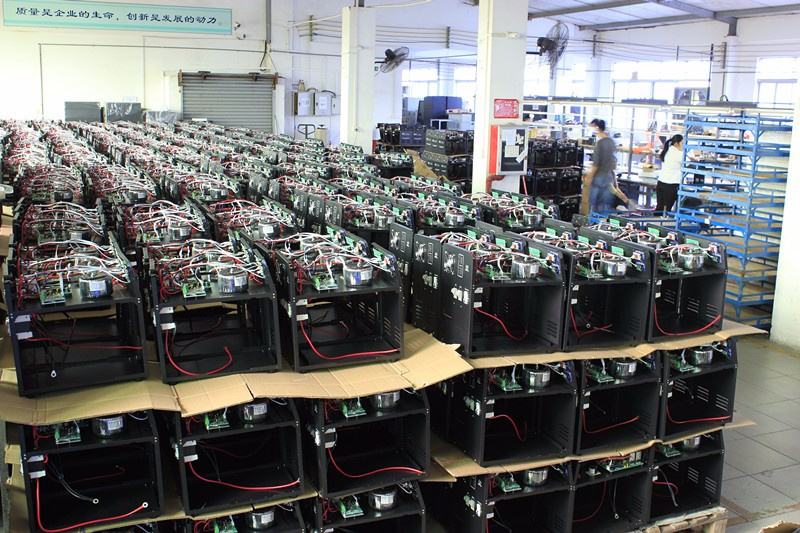

Company Shows

WELCOME TO INQUIRE US IF YOU HAVE ANY QUESTION ABOUT OUR PRODUCTS!

A Professional Manufacturer Specialized in field of Solar power system

Foshan SNAT Energy Electrical Technology Co. Ltd is a professional manufacturer specialized in the field of solar inverters, solar inverters with controllers built-in, solar controllers, UPS which are used for household, telecom, electricity, infrastructure and industrial markets.

At the same time, our company is concurrently engaged in solar panels, batteries for solar power system. All products purchased by our company have our wanrranty commitment, parts will be shipped for free during wanrranty period.

Company information

Foshan SNAT Energy Electrical Technology Co. Ltd is established in 2004. Our company's predecessor is a trading company and engaged in UPS since 1998 and develop solar inverter since 2004. We are haveing professional technical team and focus on customers' demands, continuous innovation, and establish good cooperation with more and more clients. The leading-edge technology has become a competitive advantage for our customers and business.

Corporate development prospect

Foshan SNAT Energy Electrical Technology Co. Ltd is becoming a strong brand step by step depending on high quality and strict self-demanding. We have won a good reputation among clients. Nowadays, we have prepared well to develop much more wide international market. We sincerely wish to corporate with more and more international traders to vreat a better future!
