| Prod Model: |
T10K |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Power Factor: |
10kw |
| Wave Form: |
Pure Sine Wave |
| Frequency Range: |
45 -65Hz |
| Input Voltage: |
96V/120V |
| Inverter Type: |
Hybrid Inverter(Inverter+Controller) |
| Warranty: |
18 Months |
| Output Voltage: |
110/120/220/230/240V Optional |
| Controller Capacity: |
100A |
| Temperature Type: |
Dual Temperature Control Protection |
| Power Source: |
Solar Power |
Product Description
DC to AC Power Inverter 10000watt
Why choose TANFON solar products?
1) TANFON has sold the system to Nigeria, Colombia, Burkina Faso, Egypt,Bolivia, Kenya, Ghana,
South Africa, Argentina, Philippines, Congo, Etc--Almost 85% of Africa countries !
2) With a professional installation team, we have been to Egypt, Chad, Nigeria, Ghana, Doha, Pakistan for installation service.
3) Already started some inverter factories in some countries, so there is no problem in after sale service. And we are still looking for local factory partners in other countries, hoping to reach depth cooperation with you!
4) We insist on using high quality raw material whenever and wherever.
5) With customers' praise as an assurance, Tanfon is a guaranteed brand.
6) Our company's philosophy:one-stop solar energy service platform.

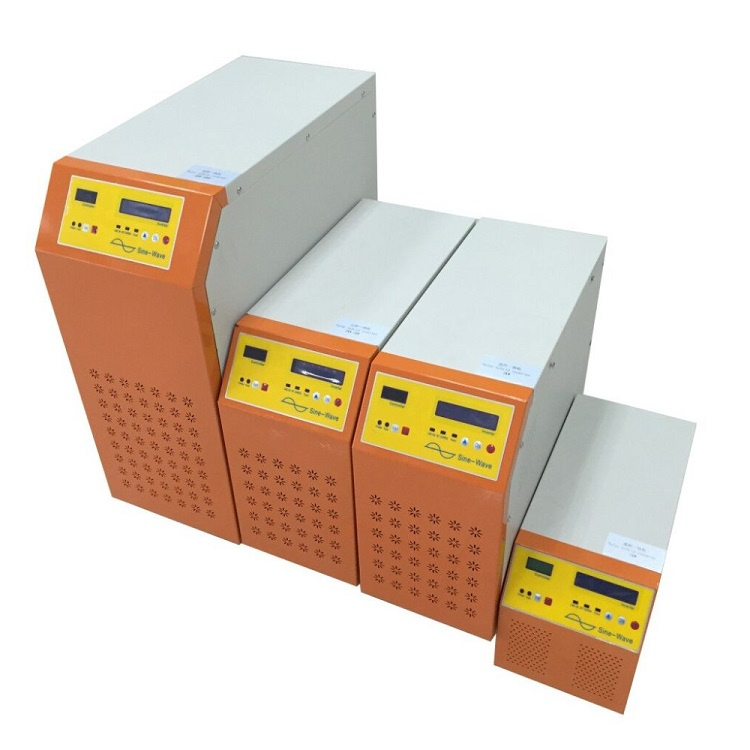

Tanfon power inverter, pure sine wave, with MPPT charge controller built-in, off grid single phase model have power design 300w upto 10kw, only inverter without controller built-in model have power design 300w upto 30kw, for wind power system or solar system using.
New solar inverter function:
1. 100% Full Power
2. Import MOS tube Power Material
3. Double Powered Protection
4. Dual temperature control Protection
5. Battery and city power priority switch
Very suitable for African Market.
Feature:
1. Combine with solar power controller and inverter hybrid function.
2. Completely controlled by CPU. output have 5V and 12V USB, can take LED light and mobile phone
3. Inverter use copper transformer, pure sine wave output.4..LCD displays, clearly to know the status.
5. Have bypass function and AC charger (UPS function)
6. Perfect protection. Protect against anti-charge at night, battery over charger/over discharge, output short-circuit, against overload, against over-voltage, over-current protection ,etc.
7. City grid power and solar power complementary. When there are not sunshine and battery power used off, inverter will charge from city power automatically to take the loads and charge battery, keep the solar power system working 24 hours, have switch "city power charge" and "solar power charge", you can change any time

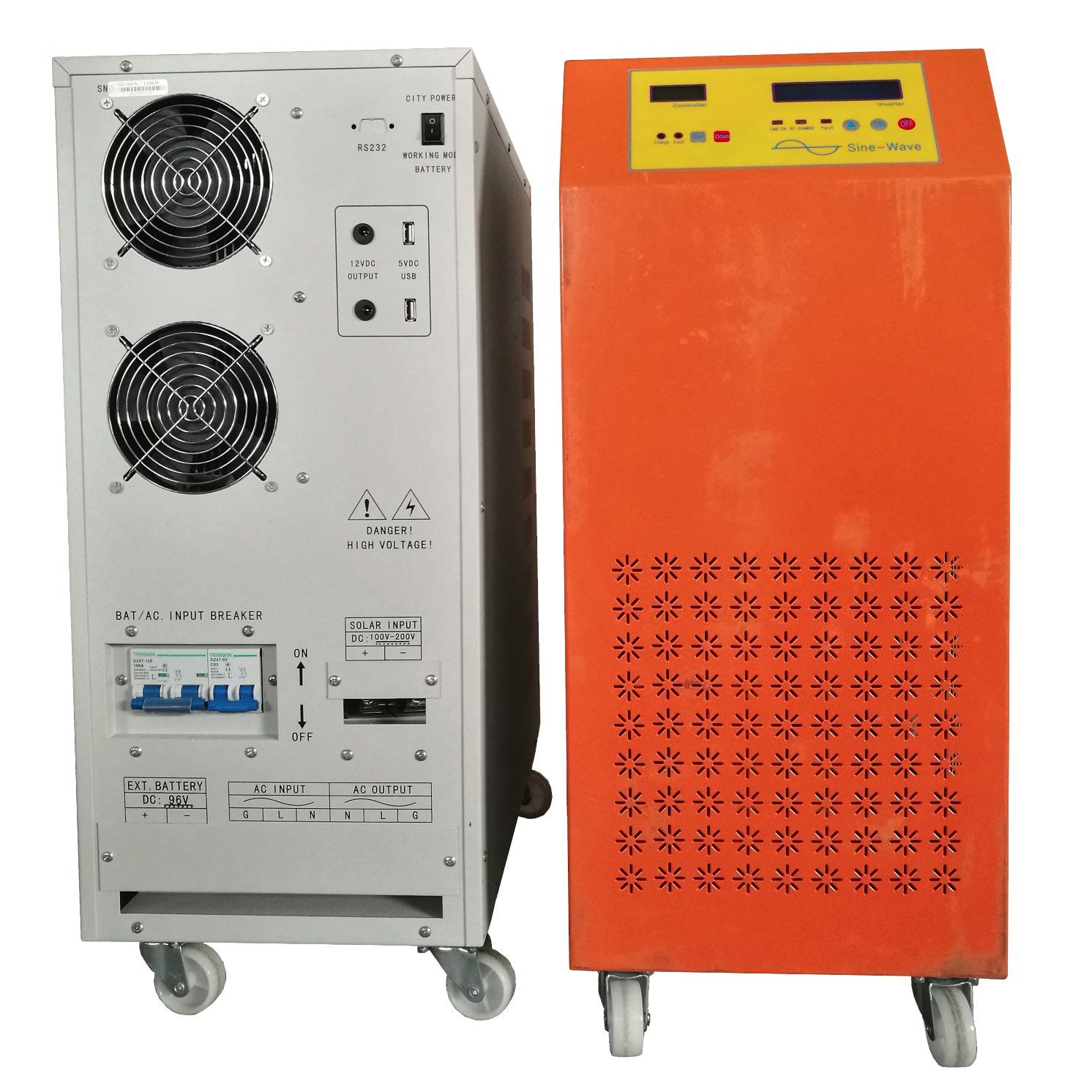

SC2kw-5kw front and back design:
SC10KW solar hybrid inverter data sheet:
| Model | SC10000 |
| Rated power(W) | 10000W |
| Rated DC voltage(V) | 96 |
| Line input | Input voltage(V) | 145-280V, 90-127V |
| Charge current(A) | 10-30A |
| Inverter output | Output voltage(V) | 110V or 120V or 220V or 230V or 240VAC±5%, &5V, 12V DC port |
| Output frequency | 50Hz/60Hz±1% |
| Wave form | Pure Sine Wave, THD<4%(Full Load) |
| Solar input | Maximum voltage(V) | 176v |
| Rated power(Wp) | 10000 |
| Solar Controller | Charge current(A) | 100 |
| MPPT range(V) | 96V(80-136) |
| Charging efficiency | 90%-95%, Peak on 97% |
| Other | Over charge protective voltage of battery(V) | 96V(114) |
| Over charge recover-voltage of battery(V) | 96V(109.6) |
Voltage drop between solar
module and battery(V) | ≤0.5V |
Voltage drop between loads
and battery(V) | ≤0.25V |
| Start speed of cooling fan | Have |
| Environment Humidity | 0-90% Maximum,non-condensable |
| Protective Functions | Protection against anti-charge at night;
Battery over charge;over discharge protection; Joint-reversed of solar modules |
| Control method | MPPT |
| Size :D*W*H(mm) | 595*340*725 |
| N.W&G.W(kg) | 82/98 |
Need more other power design inverter, please send inquiry to us, we will reply as soon as possible within 12 hours.

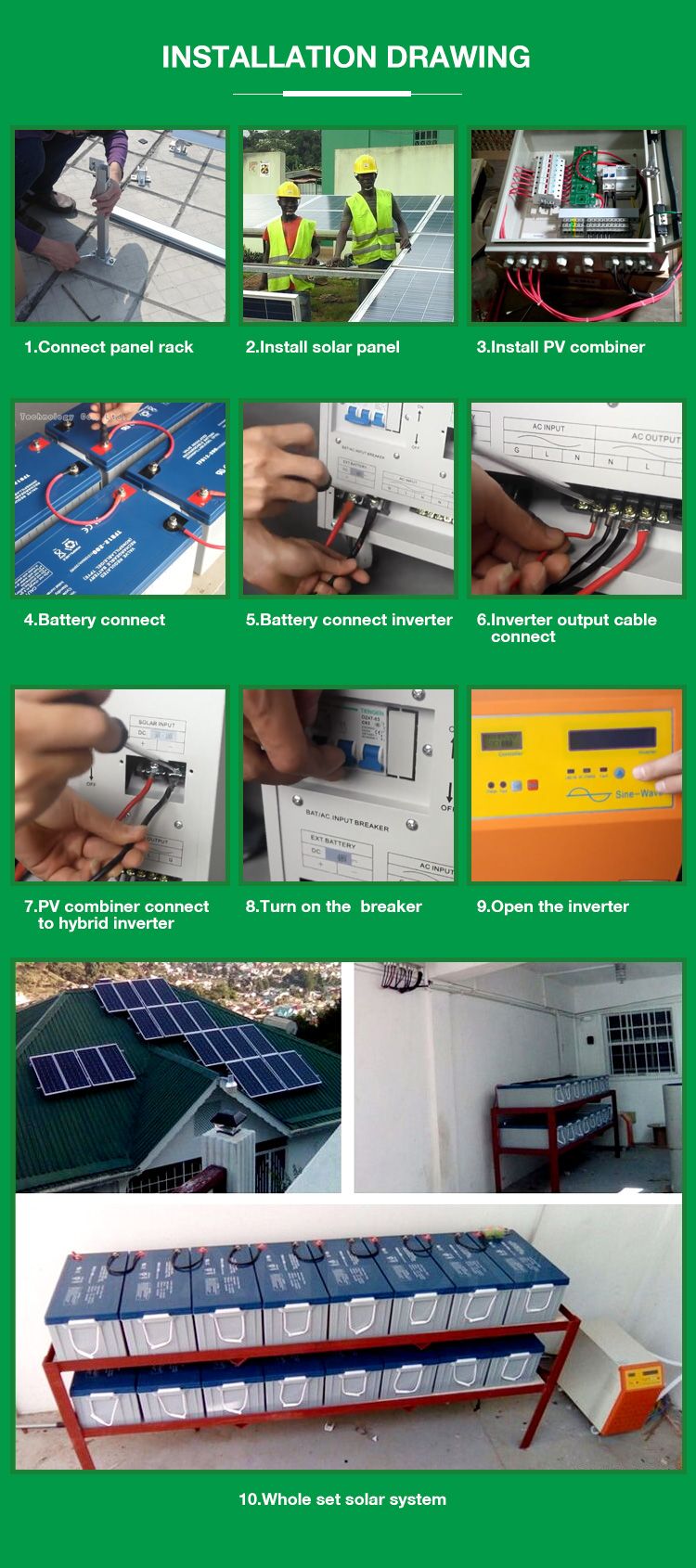

Hybrid solar power inverter easy connection for the solar system
