| Prod Model: |
SC |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Model: |
Inverter with Controler |
| Waveform: |
Pure Sine Wave |
| Power: |
300W-10kw |
| Charging: |
Solar Panel and Support City Power Charge Battery |
| LCD: |
Dual Screen |
| Certificate: |
CE TUV |
Product Description
best after sales service 5kw off Grid Solar Hybrid Inverter Tanfon cherish each opportunity of cooperate with customers, We accept OEM and small trial orders, send your inquiry details in below, click " Send" Now! Or contact me directly by following contact way:
Foshan Tanfon Energy Technology Co., Ltd. is specialized in R&D, manufacturing and selling solar power system product, wind power system product, solar &wind hybrid system(on grid and off grid systems)
The model range: Inverter with controller built in(300W 500W 700W 1kw, 1.5kw, 2kw, 3kw, 5kw, 6kw, 7kw, 8kw, 10kw)
Feature:
1.Combine with solar power controller and inverter hybrid function.
2.Completely controlled by CPU.output
have 5V and 12V USB,can take LED light and mobile phone
3.Inverter use copper transformer, pure sine wave output.
4..LCD displays, clearly to know the status.
5.have bypass function and AC charger (UPS function)
6.Perfect protection. Protect against anti-charge at night, battery over charger/over discharge, output short-circuit, against overload, against over-voltage, over-current protection ,etc.
7.city grid power and solar power complementary. When there are not sunshine and battery power used off ,inverter will charge from city power
automatically to take the loads and charge battery ,keep the solar power system working 24 hours ,have
switch "city power charge" and "solar power charge",you can change any time
8.
double protection ,save time and money for service ,just need change the fuse.
| Model | SC300 | SC500 | SC700 | SC1000 |
| Rated power(W) | 300W | 500W | 700W | 1000W |
| Rated DC voltage(V) | 12/24 |
Line input | Input voltage | 165-275V, 90-127V |
| Charge current | 10-30A |
| Inverter output | Output voltage | 220VAC± 5% |
| Output frequency | 50Hz/60Hz± 1% |
| Wave form | Pure Sine Wave, THD< 4%(Full Load) |
| Solar input | Maximum voltage( | 21V or 42V |
| Rated power(w) | 300 | 500 | 700 | 1000 |
| Solar Controller | Charge current | 15/30 | 20/30 | 20/40 | 40 |
| MPPT range(V) | 12v(12-17) or 24v(24-34) |
| Charging efficiency | 90%-95%, Peak on 97% |
Other
| Over charge
protective voltage of battery | 12V(14.3), 24V(28.6) |
| Over charge recover-voltage of battery | 12V(13.7), 24V(27.4) |
Voltage drop between solar
module and battery | ≤ 0.3V |
Voltage drop between loads
and battery | ≤ 0.15V |
| Start speed of cooling fan | Have |
| Environment Humidity | 0-90% Maximum, non-condensable |
| Protective Functions | Protection against anti-charge at night;
Batteryover charge; over discharge protection; Joint-reversed of solar modules |
| Control method | MPPT |
| Size: D*W*H(mm) | 430*145*224 | 380*200*430 |
| N. W& G. W(kg) | 12/15 | 13/16 | 15/18 | 17/20 |
| Model | SC1500 | SC2000 | SC3000 | SC5000 |
| Rated power(W) | 1500W | 2000W | 3000W | 5000W |
| Rated DC voltage(V) | 24Vor48V | 48V or 96V |
Line input | Input voltage()V) | 165-275V, 90-127V |
| Charge current | 30-80A |
| Inverter output | Output voltage | 220VAC± 5% |
| Output frequency | 50Hz/60Hz± 1% |
| Wave form | Pure Sine Wave, THD< 4%(Full Load) |
| Solar input | Maximum voltage | 42V or 84V or 168V |
| Rated power()Wp) | 1500 | 2000 | 3000 | 5000 |
Solar controller | Charge current()A) | 30 | 40 | 40/60 | 60/80A |
| MPPT range(V) | 24v(24-34)48v(48-68), 96v(96-136) |
| Charging efficiency | 90%-95%, Peak on 97% |
Others | Over charge
protective voltage of battery | 24V(28.6), 48V(57.2), 96V(114) |
Over charge recover
voltage of battery | 24V(27.4), 48V(54.8), 96V(109.6) |
Voltage drop between solar
module and battery | ≤ 0.5V |
| Voltage drop between loads and battery | ≤ 0.25V |
| Start speed of cooling fan | Have |
| Environment Humidity | 0-90% Maximum, non-condensable |
| Protective Functions | Protection against anti-charge at night; Battery over charge/over discharge protection; Joint-reversed of solar modules |
| Control method | MPPT |
| Size: D*W*H()mm) | 450*230*480 | 450*230*570 |
| N. W& GW()kg) | 26/32 | 32/38 | 40/49 | 49/58 |

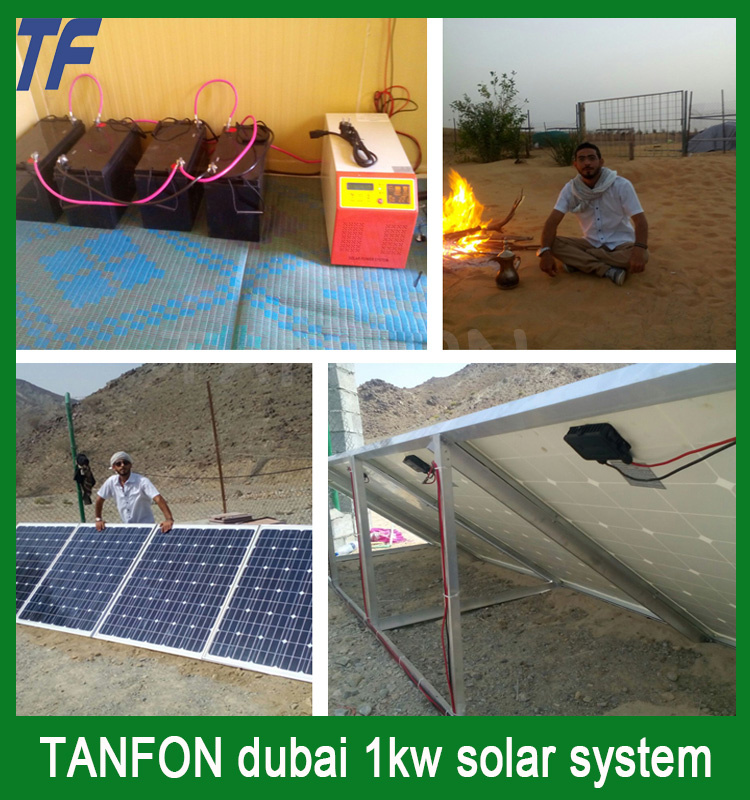

FAQQ: What can be included for this system from TANFON?A:This system includes:solar panels, PV array combiner,Solar inverter with MPPT solar controller build in,lead-acid AGM free mainentance battery,solar panel rack,cables.,etc. Q:What's the advantage for this solar system from TANFONA:1.
installation support.2.The most advantage:On grid energy backup(not means sell electricity,just backup) 3.CE Rohs Certified
4.100% high quality materials
5.have Open factory in local.--Best after sales service ! Q: Is the system solution always the same? Can I customize one?A: Yes we have our professional teams making solutions for our clients. Solutions are mainly customized based on different sunshine time and power consumption. So the 1kw system may be with different configuration. Q: Is the solution for complete set? If not, what else are needed?A: Yes we can provide solution of complete set. If you don't need complete set, basic parts are also available. Q: Who arranges the shipping?A: We could help you arrange the shipment, we have good service forwarder in Guangzhou. Q: What's the difference between off grid and on grid solar power system?A: Off grid solar power system doesn't connect to the power grid. In general, it includes solar panels, charger controller, batteries and inverter. This system will store the solar power into the batteries, batteries energy will be converted the electricity power to supply the appliances working through the inverter.On grid solar power system connects to the power grid. In general, it includes solar panels, grid-connected inverter, the solar power will be converted the electricity power to appliance working directly. When the solar power is off, the power grid will replenish the electricity power to appliances working. Q: Can the inverter switch automatically to national grid to protect batteries.A: Yes. It can also connect to third generator like diesel generator. Please tell our sales before production. Q: What is the lifetime of the solar power system?A: Solar panels' lifetime are 25 years, charger controllers 5~ 7 years, inverters 5~7 years, batteries 6~8 years. Q:what is TANFON solar system after sales service?A: during the warranty ,Solar panel--ship free new one ;battery-ship the new one ,Inverter/controller---ship free PCB by DHL or Fedex. Q:how about TANFON solar system quality?A: we promise our quality materials ,and after sales service ,also have many project in all over the world ,contact our sales get the project picture Q:what is your trade AsusuranceA:100% product quality protection 100% product on time shipment protection 100% payment protection for your covered amount If you have more question, welcome to contact us freely, Choose TANFON, Choose Satisfaction! project picture:
with us ,your money in safe ,your business in safe!!!
