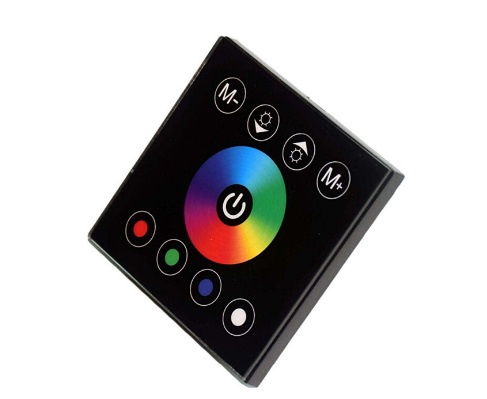

DC12V-24V Wall-Mounted RGB Touch Panel Controller

CCT:	Ww/ Wh/ R/ G/B/Y/RGB/RGBW Ect Available
Intallation:	Wall-Mounted
Lead Time:	3working Days
Warranty:	3years
Application:	Building
Signal Transmission:	RF Remote Control
Type:	Button
Certification:	RoHS
Universal:	Universal
Transmission Distance:	<50m
Material:	Plastic
Battery Type:	AAA Battery
Voltage:	12V-24V

Product Description




For 3528 5050 Multi-color RGBW LED Strip Lighting
Touch Panel is a new upmarket controller which is newly developed by our factory. It adopts glass panel design, is beautiful and fashionable in appearance.                                                                                                                                                           Product Description
Touch Panel is a new upmarket controller which is newly developed by our factory. It adopts glass panel design, is beautiful and fashionable in appearance. It adopts high precision capacitance touch control chip,increases the touch sensitivity, reduces wrong trigger which caused by mistake. It is used for controlling a variety of lamp whose source of light is LED. For instance, point source of light,flexible light strip, wall washer lamp, glass curtain wall light etc., it has many advantages such as convenient to connect, easy to use ,etc. It can realize jump change, gradually change, strobe and other effects based on application requirement.                                                                                                                                                                                      Dynamic modes


Mode number	Function	Remark
1	Static white
2	Static yellow	brightness is adjustable
3	Static purple	Speed is non-adjustable
4	Static cyan
5	Three-color jumpy changing
6	Three color grudual changing
7	Three color strobe changing
8	Seven color jumpy changing
9	Seven color gradual changing
10	Seven color strobe changing
11	Cool white fade in and fade out
12	Warm white fade in and fade out
13	Red strobe
14	Green strobe
15	Blue strone
16	yellow strobe	Speed is adjustable,
17	Purple strobe	brightness is non-adjustable
18	Cyan strobe
19	Cool white strobe
20	Red explosion-flashing
21	Green explosion-flashing
22	Blue explosion-flashing
23	Red blue jump change
24	Green blue jump change
25	Red green jump change
26	warm white explosion-flashing

27

Circulation mode(5-26)



• Specifications                                                                               working temperature: -20-60 ºC
  supply voltage: DC12-24
  output: 4 channels
  connection mode: common anode
  external dimension: L86 Χ W86Χ H37mm
  packing size: L115 Χ W110 Χ H56 mm
  Net weight:128g
  Gross weight:187g
  static power consumption:<1W
  output current:<4A(each channel)
  output power:12V:<192W,  24V:<192W
