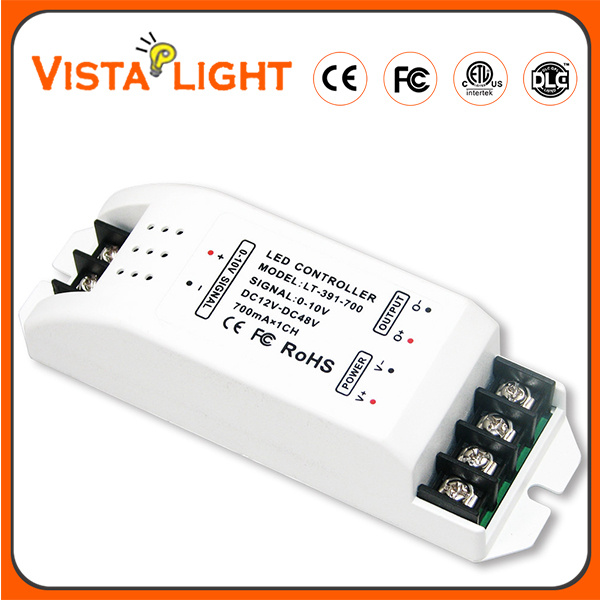

DC12V-48V Input Voltage Power Supply LED Dimming Driver

Prod Model:	LED dimming driver LT-391-700
Product Name:	LED Dimming Driver Lt-391-700
Product Size:	L121*W39*H39(mm)
Packing Size:	L123*W42*H42(mm)
Weight(G.W):	85g
Power Supply Chosen:	DC CV SMPS
Input Voltage:	DC12V~DC48V
Output Voltage:	DC3V-DC42V
Output Current:	Constant Current 250mA
Output Signal:	PWM LED Dimming Signal
Input Signal:	0-10V Analog Dimming Signal
Usage:	Light
Output Type:	Single
Driving Method:	LED Constant Current
Circuit Structure:	PWM Controlled
Power Supply Voltage:	12-48VDC
Pack Sealing Size:	L123*W42*H42(mm)
Brand:	Vista

Product Description

Along with the rise of LED illumination, LED lamps are widely used in hotel, business center,
Household decoration, etc.There are more and more chances to use LED and fluorescent lights
At the same project, if LED lamps and fluorescent lights can be controlled together by a
Traditional fluorescent dimming system.It will make everything more convenient, but the dimming principles of LED and traditional fluorescent Lights are different, LED lights can not be dimmed by the fluorescent dimming controller directly.

As a fact of that, our company developed a new 0/1-10V to PWM dimming driver which has solved
The compatible problem of fluorescent dimming system.And LED illumination, LED lamps can be
Controlled by many traditional intelligent dimming system.

Technical Specs:


Model	LED dimming driver LT-391-700
Supply Chosen	DC CV SMPS
Input Voltage	DC12V~DC48V
Signal Input	0/1-10V Analog Dimming Signal
Signal Output	PWM LED Dimming Signal
Output Current	Constant current 700mA
Max Output Power	120W(12V)/240W(24V)
Temperature Range	-30ºC-55 ºC

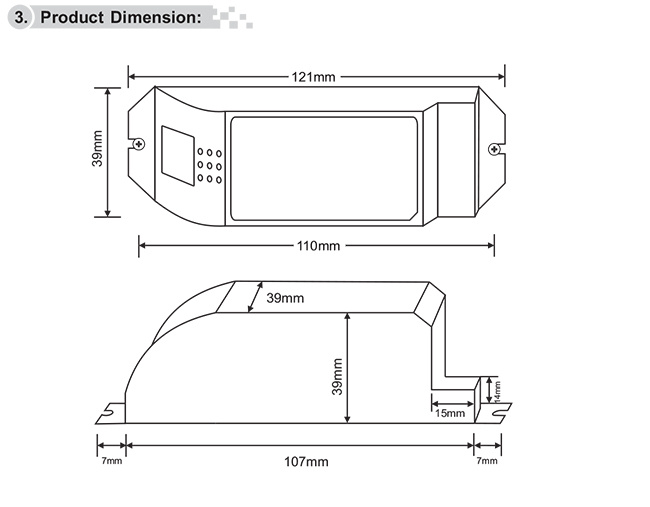

Product Size	L121×W39×H39(mm)
Package Size	L123×W42×H42(mm)
Weight(G.W.)	85g

Basic Features:

1. 0-10V to PWM dimming signal conversion.
2. Optical isolation protection for input & output;
3. Compatible with many brand dimming systems.
4. Constant current 700mA high precision output.

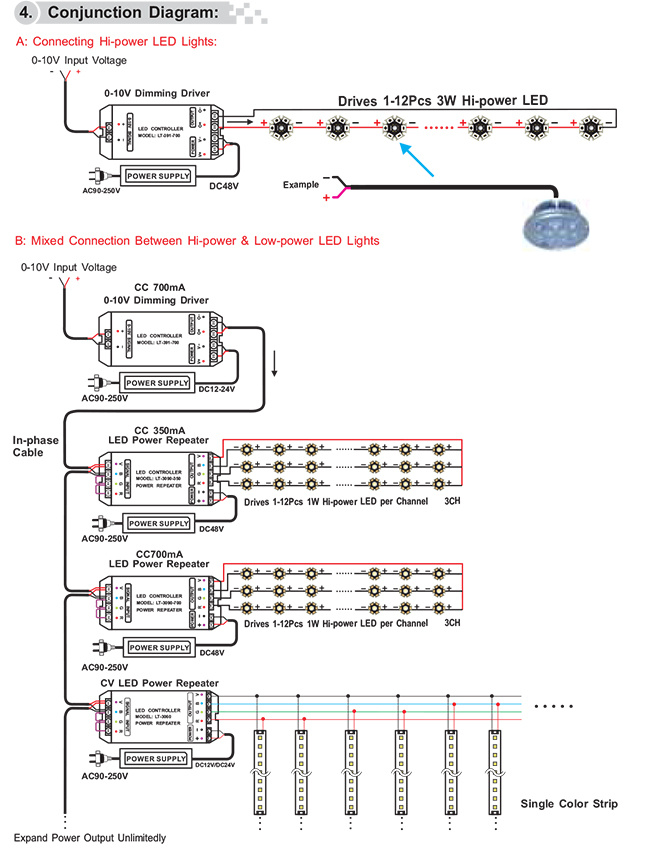

5. DC12V-48V input voltage, which can drive 1~12 pcs 3W LED.
6. Multi units can be worked together or use our power repeaters to control more lamps

Product Details          The Charging Methods for Remote Control
1. When charging, please connect USB cable to the mobile charger or computer with the USB interface.
2. The downside white light of 3 in l white LED indicator flickers while charging, and the upside white    indicator light is on, means the charging is finished. The remote control can be chargeable even at the OFF state, on which the indicator light is black.
3. No memory effect in the lithium battery of remote control. Follow the standard charging procedure, no need for overcharge for the first 3 times .
4. Indicator light flickers(the right side white indicator light is on) meaning low battery and need to be charged charging in low battery will affect life of battery.
5. The remote should be full charged and stored under low cold drying while a long time without being operated And please full recharge every 3 months.Product Attention
1. The product shall be installed and serviced by a qualified person.
2. This product is non-waterproof. Please avoid the sun and rain. When installed outdoors please ensure    it is mounted in a water proof.
3. Good heat dissipation will prolong the working life of the controller. Please ensure good ventilation.
4. Please check if the output voltage of any LED power supplies used comply with the working voltage of    the product.
5. Please ensure that adequate sized cable is used from the controller to the LED lights to carry the        current. Please also ensure that the.
6. Ensure all wire connections and polarities are correct before applying power to avoid any damages to    the LED lights.
7. If a fault occurs please return the product to your supplier. Do not attempt to fix this product by         yourself.
  We are a professional manufacturer of various kinds of LED lighting products in Shenzhen China. Our current products lines range include: LED Flexible strip light, LED COB Down lights, LED moudle LED Panel lights and DIY products by customer etc. We could provide the most reliable light solution to client s' application. Our products are getting CE, RoHS, ETL DLC approval these days and all the light source chips are of brand in Epistar, Samsung, Edison, Nichia, Citizen, CREE and Luxeon etc.

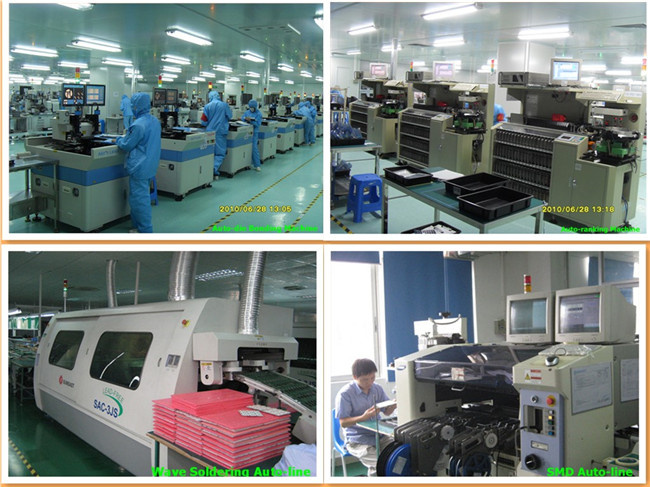

Equipped with automatic SMT production lines testing room aging room dispensing room and all comprehensive processing technology in this industry. We got professional team who are in rich experience of processing technology engineering testing and other related fields. The production system is according to the standard of ISO9001: 20000. All the products will be sent to aging room for life testing and then must pass the strict tests of the Quality Control Dept. Before shipping. Our products are Environmentally-friendly Energy-saving High efficient and with long-lifespan. Our products have been successfully used in widely: Such as Famous hotels Big Chain stores, museum and various business centers and so on.

We are adhering to the principle of" Honesty Cooperation aspects and Win-Win" and we are doing our utmost to satisfy our clients 'personalization demand.

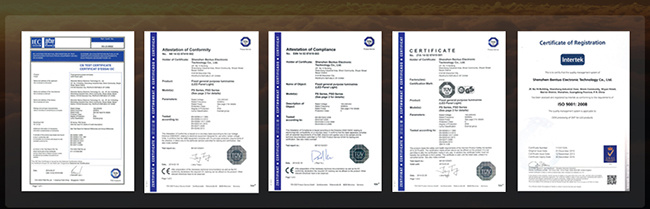

Certification
 FAQ
1. Q: Can I get some samples?
A: Yes,sample order is available for quality check and market test.
2. Q: What's the delivery time?
A: Usually below 100pcs is 3 days quick delivery.
3. Q: How long is the warranty period ?
A:  Non-artificial damage,  one years warranty
4. Q: Do you have the products in stock?
A: Yes ,of course
5. Q: Freight Cost?
A: The shipping cost depends on different weight;
We will choose the cheapest and safest way according your detail quantities.
6. Q: How does your factory do regarding the quality control?
A: Quality is priority. Every product will be fully assembled and carefully tested before packing and shipping.
