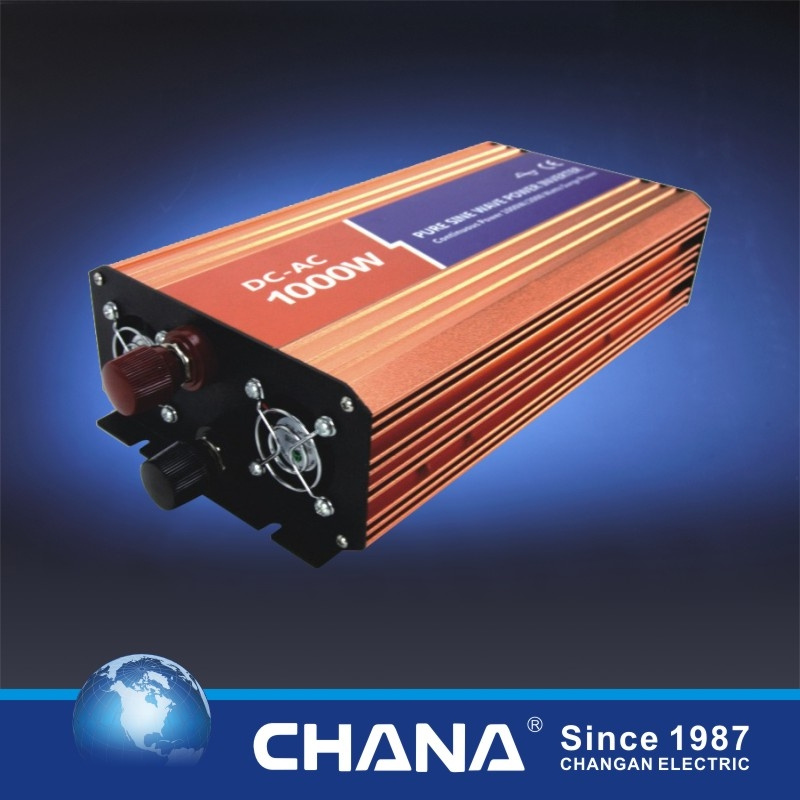

DC12V to AC220V 1000W Pure Sine Wave Power Inverter

Name: DC12V to AC220V 1000W Pure Sine Wave Power Inverter
Brand: all-electronics-online.com
SKU: 743388235
Availability: InStock
Rating: 5 (132 reviews)

Price:	US $ 88/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	10/Piece
Pay Type:	L/C,T/T,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	B12P1000
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
MPPT:	>97%
Brand Name:	Chana
Packing Type:	Carton
Export Market:	Global

Product Description

Specifications
1.1000W pure sine wave inverter
2...Soft start
3.2 years warranty
4. Fore and rear full isolation
1000W pure sine wave inverter
1. General:
1) It is featured with unique front and back double soft starting technology.
2) Adoption of CPU core SPWM control technology.
3) Unique constant power technology.
4) MOS transistor is available for anti-reverse wiring.
5) Front and back full isolation technology.
6) Perfect and powerful protection functions against faults or failures (undervoltage, overvoltage, overload, overheat, overtemperature, referse polarity wiring, short circuit, battery over-discharge, etc), with alarm and automatic recovery functions.
7) Safe and vibration proof.
8) It does not affect the working life of electrical equipment.
9) Small size, light weight, environmental friendly, elegant appearance.
10) Wide applications: Railway power generation, industrial control, communications exchange;
Automotive, vehicle, boats, civil office, industrial, agricultural, etc;
Loads: Incandescent lamps, refrigerators, air conditioners, computers, printers, air pumps, water pumps, electric stoves, microwave ovens and so on;

Machine Model	B12P1000-1	B24P1000-1	B48P1000-1	B12P1000-2	B24P1000-2	B48P1000-2
Output power	1000W
Peak power	2000W
Input voltage	DC12V	DC24V	DC48V	DC12V	DC24V	DC48V
Output voltage	100VAC or 11VAC or 120VAC±5%		220VAC or 230VAC or 240VAC±5%
No-load current(<)	0.8A	0.4A	0.2A	0.8A	0.4A	0.2A
Output frequency	50Hz±0.5Hz or 60Hz+±0.5Hz
Output waveform	Pure sine ware
Waveform distortion	THD<3%(Linear load)
USB	5V 1A
Output efficiency	A maximum of 94%
Input voltage range	10-15.5	20-31V	40-61V	10-15.5	20-31V	40-61V
Undervoltage alarm	10.5±0.5V	21±0.5V	42±1V	10.5±0.5V	21±0.5V	42±1V
Undervoltage protection	10±0.5V	20±0.5V	40±1V	10±0.5V	20±0.5V	40±1V
Overvoltage protection	15.5±0.5V	31±0.5V	61±1V	15.5±0.5V	31±0.5V	61±1V
Voltage recovery	13±0.5V	24±0.5V	48±1V	13±0.5V	24±0.5V	48±1V
Overvoltage recovery	14.8V±0.5V	29.5V±0.5V	59V±1V	14.8V±0.5V	29.5V±0.5V	59V±1V
Protection function	Undervoltage/Overvoltage		LED red light,alarm,automatic recovery
	Over load		LED red light ,alarm,lock
	Over-temperature		LED red light,alarm,automatic recovery
	Short circuit		LED red light,alarm,automatic recovery
	Input reverse		Doides or MOS transistor
Operating ambient temperature	-10 ºC -+60 ºC
Storage ambient temperature	-30 ºC -+70 ºC
Product size(mm)	26014569
Net weight(KG)	2.4
QTY/CNT	6 pieces
Package size(mm)	370330350
Warranty	One year
Start	Bipolar soft-start
Cooling	Temperature Controlled Fan

Established in 1987, CHANGAN GROUP Co., Ltd. Has been acknowledged as one of the most respected nation-wide manufacturers and exporters of low-voltage electrical apparatus in P. R. China.

Comprising more than 62 factories with over 2500 employees and the whole corporation occupies 82000m2 ground during past 27 years.

We manufacture and export varieties of low voltage electrical appliance including all kinds of CIRCUIT BREAKER, CONTACTOR, RELAY, SWITCH, SOLAR INVERTER etc.

All of our production procedures strictly follow ISO9001, ISO14001 and OHSAS18001, most of our products are certified such as SEMKO, TUV, CB and CE which can prove our guarantee quality and our products also have been chosen as "Chinese FAMOUS BRAND PRODUCT".

We not only make efforts in developing our own products with "CHANA"brand but also provide OEM services. Hope to establish good business relationships with your esteemed company in near future.
