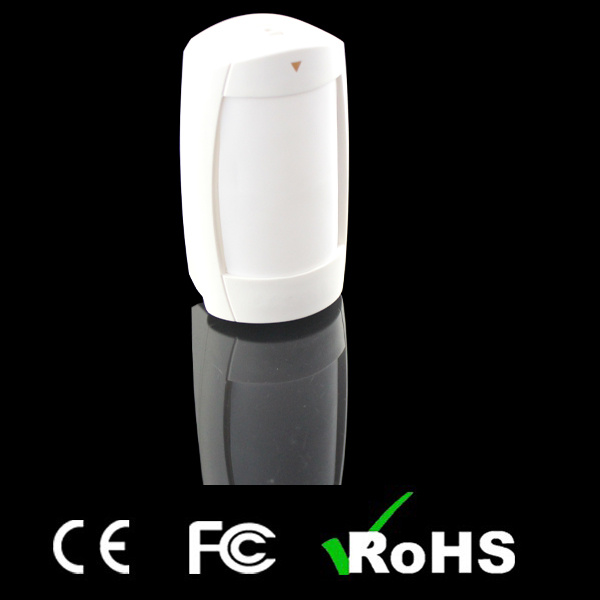

Dg-75 Wall Mount Wired PIR Intruder Detector

Prod Model:	DG-75
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Application:	Home, Industry, Special Equipment
Alarm Output:	Nc, 28VDC 0.15A
Working Humidity:	95%
Starting Time:	Electrify 60s
Detection Distance:	11m
Usage:	Anti-Theft
Supply Voltage:	9.6-16V
Detection Type:	PIR

Product Description

Dg-75 Wall Mount Wired PIR Intruder Detector

Specifications
1 Extremely reliable and false-alarm free
2 Dual optics (2 dual opposed element sensors)
3 Immune to pets weighing up to 40kg
Digital PIR Detector

Function Instruction
· Extremely reliable and false-alarm free
· Dual optics (2 dual opposed element sensors)
· Provides superior pet immunity using a patented combination of advanced optics and digital processing technologies
· Immune to pets weighing up to 40kg (90lbs)
· Digital Dual Opposed Detection
· 11m (35ft) X 11m (35ft); 90° Viewing angle

Delivery

1. Sample delivey: 3-5 days

2. MOQ: 1 pcs for ready-made;

3.1000pcs customised colors and logos;

Payment terms

1. Sample charge: 100% in advance;

2. Order: 30%deposite, 70%balance in advance; By TT, WESTERN UNION, or CASH


1. Warranty
Normally it's one year, but if you can be our agent it will be 2 years.

2. Why choose us?
AS the professional manufacturer in GSM home alarm system with 15years experience, we developed series of alarm system with high quality and competitive price. In first business, sample order is available. With professional R&D team to provide OEM&ODM service.

3. When can I get the price?
We usually quote within 24 hours after we get your inquiry. If you are very urgent to get the price, please call us by 86-18825231550.

4. Are your samples free or need cost?
It can be free, but anyway we have to charge for the samples first, the sample charge can be returned after official order placed.

5. How can I get your samples home security alarm system?
You're welcomed to email us for checking. It will be ready for delivery in 3-7 days after payment. The samples will be sent to you by express.

Model	DG-75
Detection type	Quad(four element dual pir)
Coverage/range	11*11m~110°
Supply Voltage	9.6-16V
Active Current	28mA
Warm up period	60±5s
LED indicator	All LEDs are ON during alarm
Dimensions	125*65*62mm
Power input	9 to 16Vdc
Standby Current	20mA
Working Temperature	-10to +50°C
Alarm Output	(NO/N.NC)optional
Wall/Ceiling Mount	Wall
PF immunity	10V/m plus 80%AM from 80MHz to 2GHz
