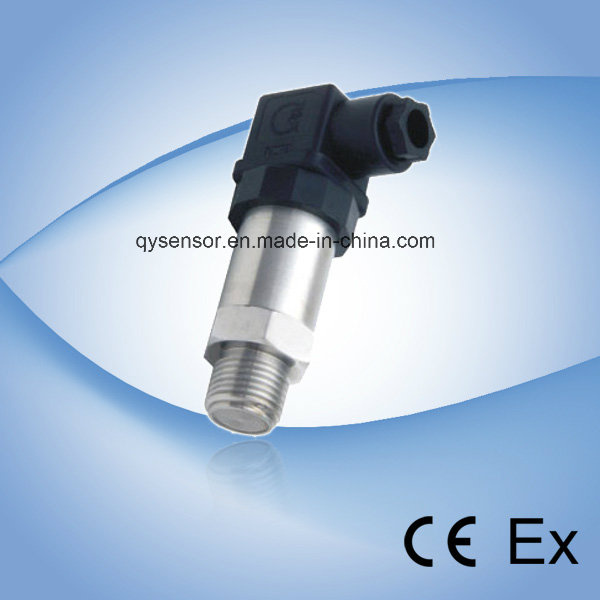

Diffusion Silicon Core Pressure Transmitter for Medical Industrial Application (QP-82B)

Name: Diffusion Silicon Core Pressure Transmitter for Medical Industrial Application (QP-82B)
Brand: all-electronics-online.com
SKU: 773967035
Availability: InStock
Rating: 4.7 (63 reviews)

Price:	US $ 65/Piece
Trade Terms:	FOB,CIF,CPT
Min Order:	1/Piece
Pay Type:	T/T,Paypal,Western Union

Contact Supplier

Showroom Product Company Profile

Prod Model:	QP-82B
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Connect Type:	Flush Membrane
Range:	-20~0kpa, 0~5kpa^.0~500kpa^.0~20 MPa
Material:	Stainless Steel
Pressure Type:	Gauge(G),Absolute(a),Sealed(S)
Measuring Medium:	Liquid and Gas

Product Description

Model: QP-82B
Range: -20~0KPa, 0~5KPa.0~500KPa.0~20 MPa

Feature:
flush membrane type pressure transmitters
Have the characteristics of high precision, good stability, long working life and high reliability.
Small in size, light in weight, Easy to installation.
Pressure connection and Electrical connection are able to chosen by customers.
Suitable for the measuring and produce of medical treatment, food equipment.

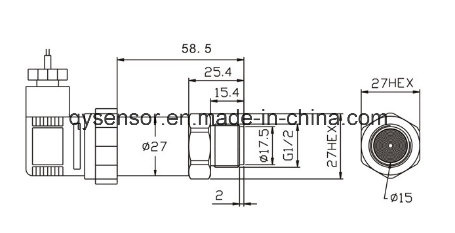

Dimensions: (unit: mm)

Technical Specifications

Measuring media	Gases or liquids which are compatible to 316L stainless steel
Measuring range	-20~0KPa, 0~5KPa.0~500KPa.0~20 MPa
Pressure type	Gauge(G),Absolute(A),Sealed(S)
Signal output	transmitter, mA (2 wires)		4~20mA
	transmitter, Vdc (3 wires)		0~10V, 1~5V,0~5V,0~20mA
Combined accuracy	%FS		±0.25(Standard), ±0.5(Max)
Long stability	±0.1%FS/year(Standard);±0.2%FS/year(Max)
Power supply	Vdc	12~36(Standard 24Vdc)
Compensated temp.	ºC	-10~+60
Operating temp.	ºC	-20~+80
Temperature coefficient of ZERO	%FS/10ºC	±0.3%FS(≤100Kpa) , ±0.2%FS(>100Kpa)
Temperature coefficient of SPAN	%FS/10ºC	±0.3%FS(≤100Kpa) , ±0.2%FS(>100Kpa)
Insulation resistance	MΩ	>500 @ 100Vdc

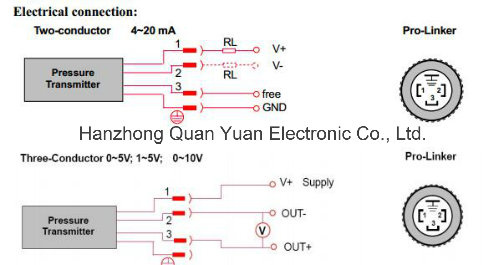

Electrical connection	DIN43650,Aviation connector,Directly lead(Selectable)
Material	Housing Material		Stainless steel(1Cr18Ni9Ti)
	Material of diaphragm		316L Stainless steel
Pressure connection	G1/2 or M20x1.5
Environment protection	IP		65
Safe overload	%FS		150
Ultimate overload	%FS		200

Ordering code: model- range & type-signal output-accuracy- electrical connection-defend grade-the other requests.

Example: QP-82C-0/300KPaG-4/20mA-0.5%FS-DIN43650-IP65-***
