High Accuracy Pressure Sensor for Oxygen Tank

High Accuracy Pressure Sensor for Oxygen Tank
Price: US $ 58/Piece
Min Order: 2/Piece
Pay Type: L/C,T/T,Western Union,Paypal
Prod Model: QP-83A
Measure Range: -100-0kpa Pressure Sensor
Output Signal: 0-500kpa
Power Supply: 0-100 MPa
Accuracy: 0.25%Fs
Types: Diffused Silicon Pressure Sensor
Measuring Medium: Gas and Liquid

Product Description

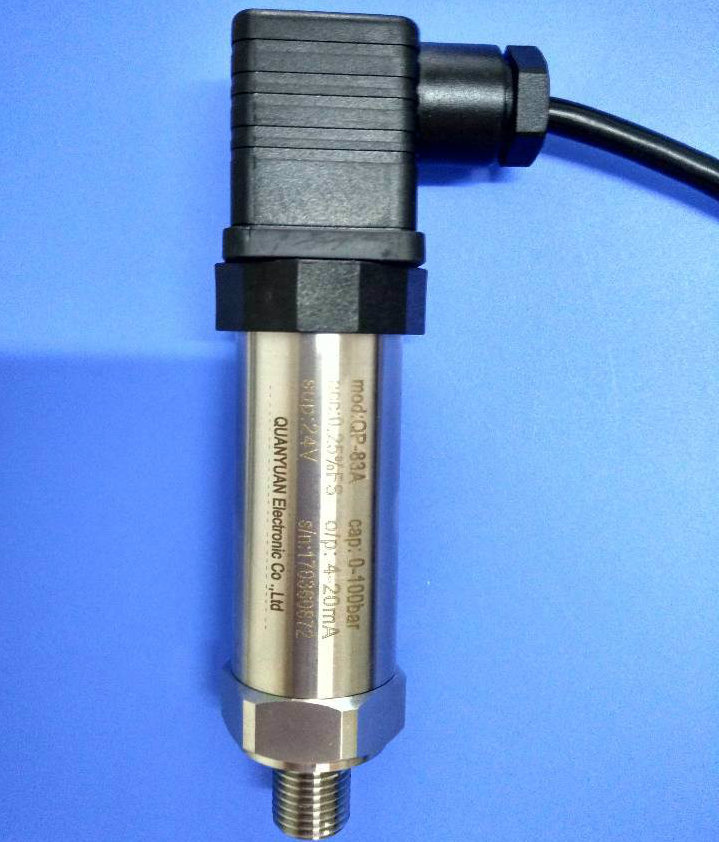

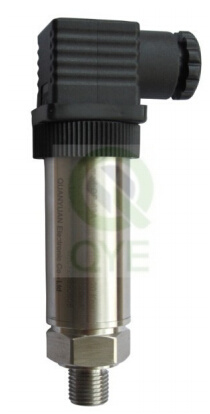

high accuracy pressure sensor for oxygen tank

 Model: QP-83A
Range: -100~0KPa, 0~5KPa….0~500KPa….0~100 MPa

Feature:

Have the characteristics of high precision, good stability, long working life and high reliability.
Easy to installation.
Small in size, light in weight.
Pressure connection and Electrical connection are able to chosen by customers. Suitable for measuring the gases and liquids.

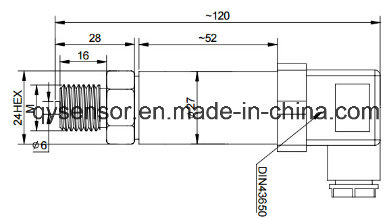

Dimensions: (unit: mm)

Technical Specifications:

Measuring media

gases or liquids which are compatible to 316 stainless steel

Measuring range

-100~0KPa,0~500KPa,0~40 MPa

Pressure type

Gauge(G),Absolute(A),Sealed(S)

Signal output

transmitter, mA (2 wires)

4~20

transmitter, Vdc (3 wires)

0~10, 1~5

Combined accuracy

%FS

0.5, 0.2(selectable)

Power supply

Vdc

12~36

Compensated temp.

ºC

0~+70

Storage temp.

ºC

-40~+120

Operating temp.

ºC

-40~+85

TCZ

%FS/10ºC

≤±0.3

TCS

%FS/10ºC

≤±0.3

Insulation resistance

>500 @ 100Vdc

Electrical connection

DIN43650,aviation connector,directly lead(selectable)

Material

stainless steel

Pressure connection

G1/4,M20x1.5,M14x1.5, M12x1, M10x1

Environment protection

IP

65

Safe overload

%FS

150

Ultimate overload

%FS

200



Ordering code: model- range&type-rated output-accuracy-pressure connection-electrical connection-defend grade-the other requests.

Example: QP-83A-0/300KPaG-4/20mA-0.5%FS-M20x1.5-DIN43650-IP65-***









Han Zhong Quan Yuan Electronic Co., Ltd. is a professional high-tech enterprises committed to the research, development, design and manufacture and sale of load cell, high precision resistance strain gauge, sensor, fittings for electronic weighing apparatus and automatic control system with QuanYuan brand.

QuanYuan are certified according to ISO 9001: 2000 and produce strictly in accordance withR60 recommendation of international Organization of Legal Metrology (OIML).

All electronic products are with good performance and high-level quality, which are widely used in electronic weighing apparatus, metallurgy, construction machinery, chemical and other industries. The products are not only sold very well in domestic, but also welcomed in Europe, America, Southeast Asia and other main countries in abroad. QuanYuan win high praise and good reputation from users in domestic and abroad. The production and sales are growing up year by year in successively.

In order to better satisfy the demand of international market, QuanYuan is going to expand production scale and invest in the construction of new production base, with an area of nearly 15, 000 square meters, which is expected to be fully put into production in 2012.

Sincerely welcome the cooperation and guidance from new and old customers in worldwide.
